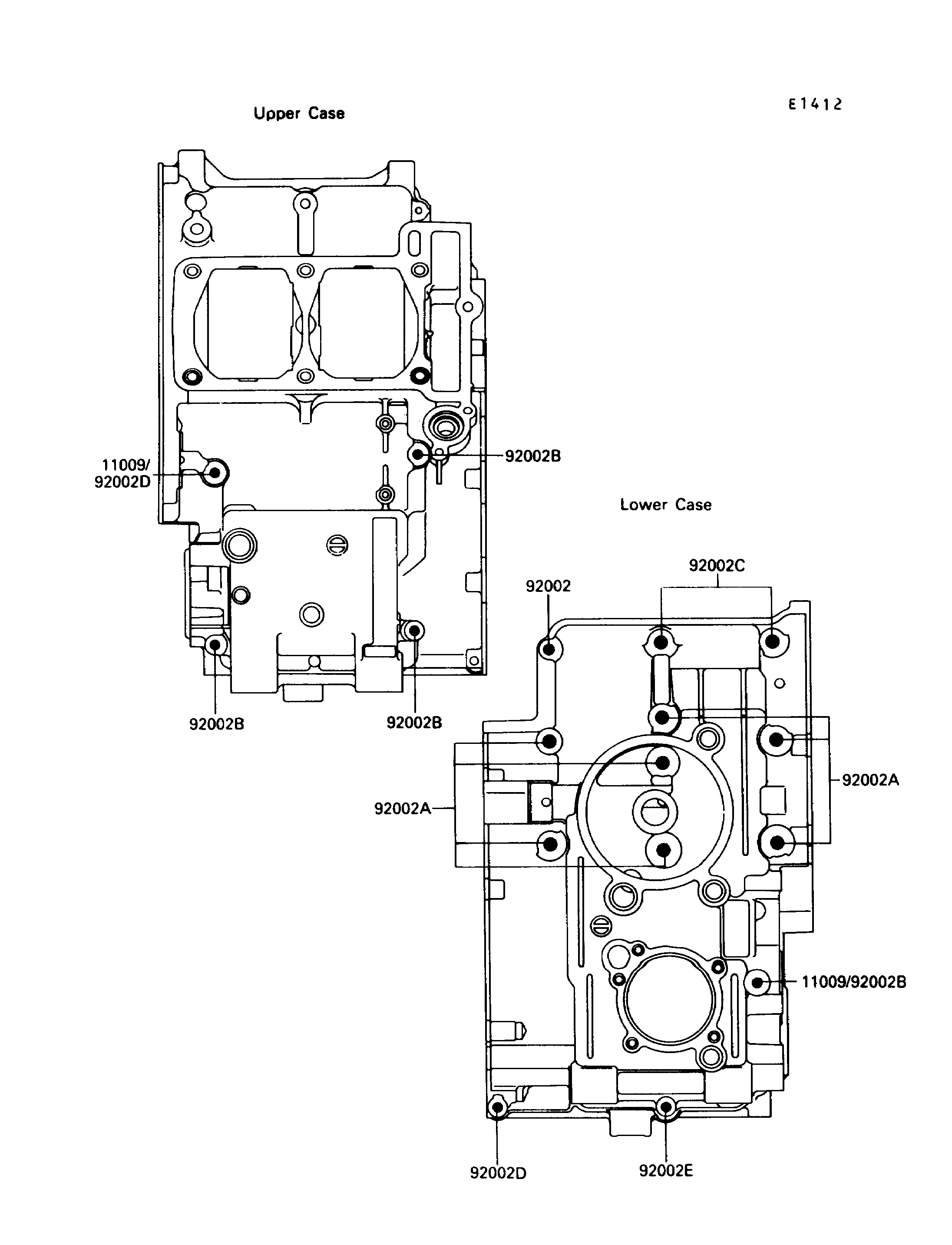

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,6.5X12X1.0 11009 11009-1568 2
BOLT,6X38 92002 92001-1899 1
BOLT,8X90 92002A 92002-1057 7
BOLT,6X85 92002B 92002-1306 4
BOLT,8X72 92002C 92002-1329 2
BOLT,6X60 92002D 92002-1584 2
BOLT,6X135 92002E 92002-1687 1
