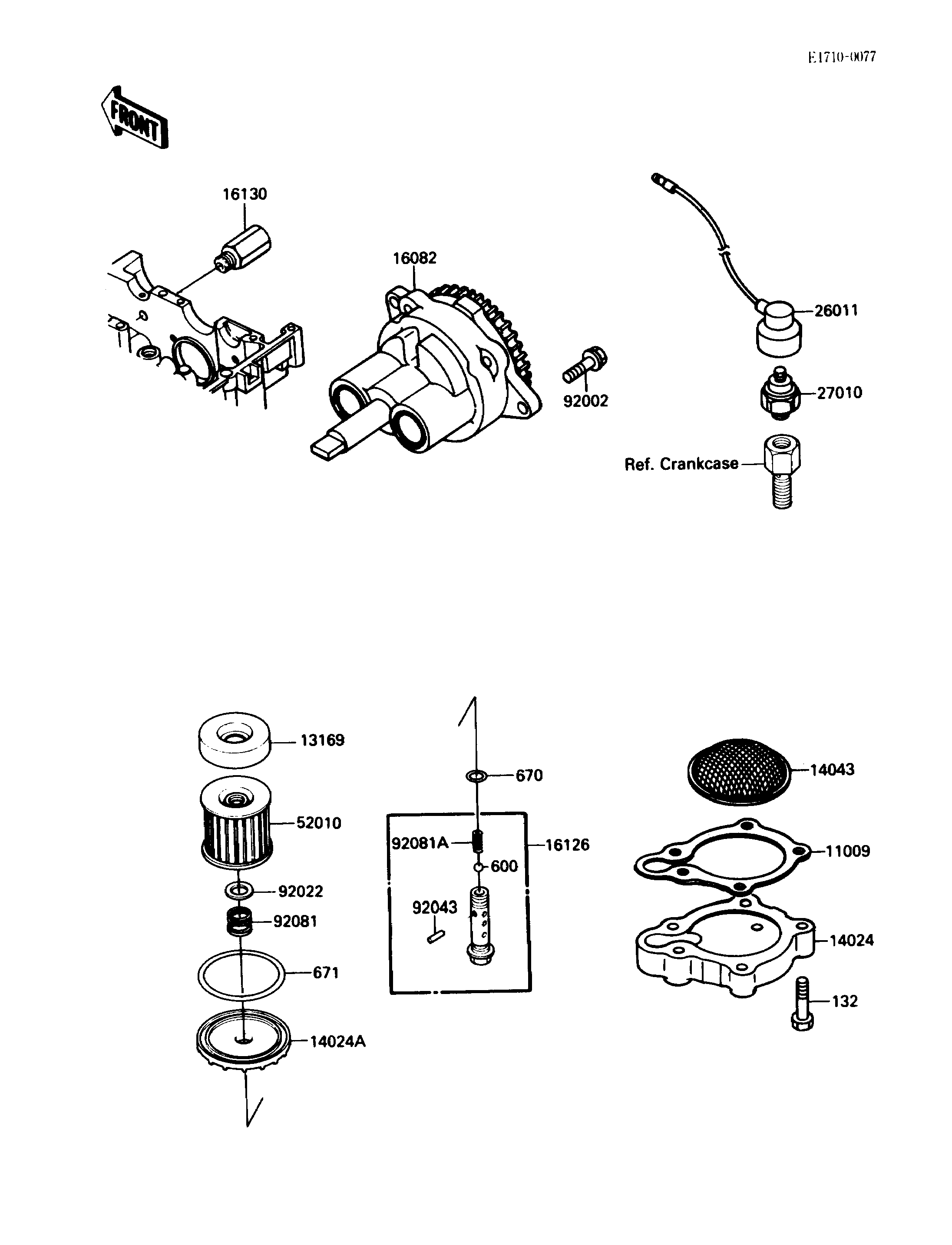

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,OIL FILTER COVER 11009 16112-003 1
PLATE,OIL FILTER 13169 13169-1313 1
COVER,OIL FILTER 14024 14024-1298 1
COVER,OIL FILTER,F.BLACK 14024A 14025-1422 1
FILTER,OIL 14043 16111-003 1
PUMP-ASSY-OIL 16082 16082-1078 1
VALVE,OIL FILTER 16126 16126-1108 1
VALVE-ASSY-RELIEF 16130 16130-1001 1
WIRE-LEAD 26011 26011-1371 1
SWITCH,OIL PRESSURE 27010 27010-1155 1
ELEMENT-OIL FILTER 52010 16099-003 1
BOLT,SOCKET,6X25 92002 92002-1696 2
WASHER,20.5X30X1 92022 92022-1012 1
PIN,SPRING,2X20 92043 92043-111 1
SPRING,OIL FILTER 92081 92081-1018 1
SPRING 92081A 92081-109 1
BOLT-FLANGED-SMALL 132 132J0630 5
BALL-STEEL,3/8" 600 600A1200 1
O RING,16MM 670 670B2016 1
O RING,90MM 671 671B2590 1
