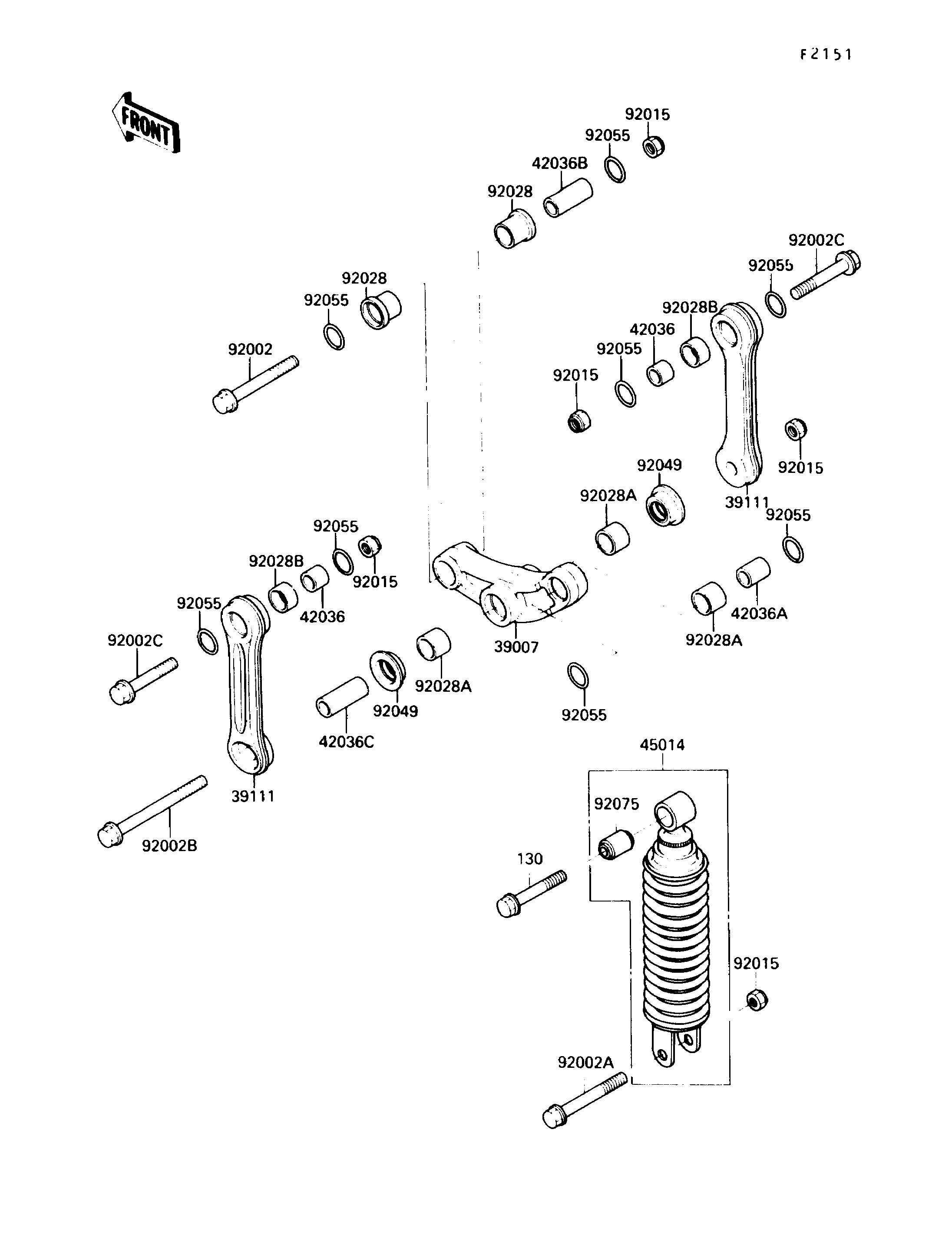

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
ARM-SUSP,UNI TRAK 39007 39007-1093 1
ROD-TIE,UNI TRAK 39111 39111-1021 2
SLEEVE,12.1X20X22 42036 42036-1076 2
SLEEVE,ARM,RR 42036A 42036-1077 1
SLEEVE,ARM,FR 42036B 42036-1078 1
SLEEVE,ARM,CNT 42036C 42036-1079 1
SHOCKABSORBER 45014 45014-1406 1
BOLT,12X90 92002 92001-1937 1
BOLT,12X55 92002A 92001-1938 1
BOLT,12X110 92002B 92002-1064 1
BOLT,12X45 92002C 92002-1065 2
NUT,12MM 92015 92015-1375 5
BUSHING,FLANGED 92028 92028-1200 2
BUSHING,20X23X25L 92028A 92028-1201 3
BUSHING,20X23X15 92028B 92028-1202 2
SEAL-OIL,ARM,CNT 92049 92049-1109 2
RING-O,19.8X2.2 92055 92055-1215 8
DAMPER,SHOCKABSORBER 92075 92075-1497 1
BOLT-FLANGED,12X55 130 130G1255 1
