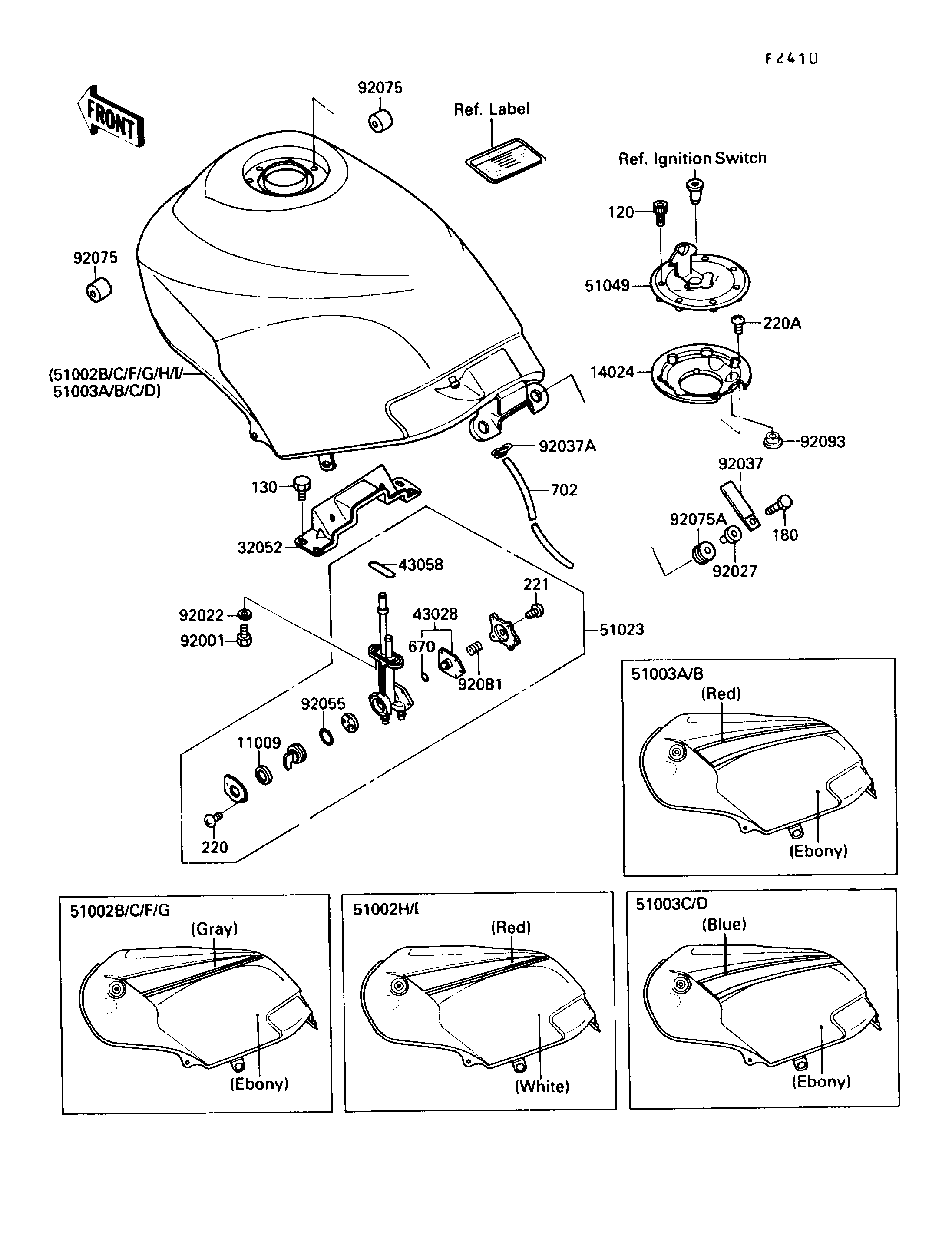

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET,TAP VALVE | 11009 | 11009-1188 | 1 | ||
| COVER,TANK CAP | 14024 | 14025-1913 | 1 | ||
| BRACKET-TANK,RR | 32052 | 32052-1254 | 1 | ||
| DIAPHRAGM,TAP | 43028 | 43028-1068 | 1 | ||
| RING,TAP FLANGED | 43058 | 51039-003 | 1 | ||
| TANK-COMP-FUEL,EBONY | 51002F | 51002-5468-H8 | 1 | CNUS | |
| TANK-COMP-FUEL,EBONY | 51002G | 51002-5469-H8 | 1 | CA | |
| TANK-COMP-FUEL,P.A.WHITE | 51002H | 51002-5470-R1 | 1 | US | |
| TANK-COMP-FUEL,P.A.WHITE | 51002I | 51002-5471-R1 | 1 | CA | |
| TAP-ASSY,FUEL | 51023 | 51023-1139 | 1 | ||
| CAP-TANK,FUEL | 51049 | 51049-1079 | 1 | ||
| BOLT,6X20 | 92001 | 92001-1091 | 2 | ||
| WASHER,6.2X11X1.5 | 92022 | 92022-183 | 2 | ||
| COLLAR,L=13.1 | 92027 | 92027-251 | 2 | ||
| CLAMP,WIRING HARNESS | 92037 | 92037-1069 | 1 | ||
| CLAMP | 92037A | 92037-1712 | 1 | ||
| RING-O,TAP LEVER | 92055 | 92055-1085 | 1 | ||
| DAMPER,FUEL TANK,FR | 92075 | 92075-1115 | 2 | ||
| DAMPER | 92075A | 92075-1690 | 2 | ||
| SPRING,TAP DIAPHRAGM | 92081 | 92081-1240 | 1 | ||
| SEAL,FUEL TANK CAP | 92093 | 92093-1030 | 1 | CA | |
| BOLT-SOCKET | 120 | 120S0512 | 7 | ||
| BOLT-FLANGED,6X10 | 130 | 130B0610 | 4 | ||
| BOLT-UPSET-WS,6X25 | 180 | 180D0625 | 2 | ||
| SCREW-PAN-CROS | 220 | 220C0308 | 2 | ||
| SCREW-PAN-CROS | 220A | 220C0508 | 1 | ||
| SCREW-CSK-CROS,4X14 | 221 | 221B0414 | 5 | ||
| O RING,4MM | 670 | 670B1504 | 1 | ||
| TUBE-RUBBER,7X10X1000 | 702 | 702A071000 | 1 |
| GASKET,TAP VALVE | |
| REF # | 11009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,TANK CAP | |
| REF # | 14024 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRACKET-TANK,RR | |
| REF # | 32052 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DIAPHRAGM,TAP | |
| REF # | 43028 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RING,TAP FLANGED | |
| REF # | 43058 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TANK-COMP-FUEL,EBONY | |
| REF # | 51002F |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CNUS |
| REMARKS | |
| TANK-COMP-FUEL,EBONY | |
| REF # | 51002G |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| TANK-COMP-FUEL,P.A.WHITE | |
| REF # | 51002H |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | US |
| REMARKS | |
| TANK-COMP-FUEL,P.A.WHITE | |
| REF # | 51002I |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| TAP-ASSY,FUEL | |
| REF # | 51023 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CAP-TANK,FUEL | |
| REF # | 51049 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,6X20 | |
| REF # | 92001 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER,6.2X11X1.5 | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| COLLAR,L=13.1 | |
| REF # | 92027 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| CLAMP,WIRING HARNESS | |
| REF # | 92037 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLAMP | |
| REF # | 92037A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RING-O,TAP LEVER | |
| REF # | 92055 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DAMPER,FUEL TANK,FR | |
| REF # | 92075 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92075A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SPRING,TAP DIAPHRAGM | |
| REF # | 92081 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SEAL,FUEL TANK CAP | |
| REF # | 92093 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| BOLT-SOCKET | |
| REF # | 120 |
|---|---|
| PART NUMBER | |
| QUANTITY | 7 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED,6X10 | |
| REF # | 130 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BOLT-UPSET-WS,6X25 | |
| REF # | 180 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SCREW-PAN-CROS | |
| REF # | 220 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SCREW-PAN-CROS | |
| REF # | 220A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW-CSK-CROS,4X14 | |
| REF # | 221 |
|---|---|
| PART NUMBER | |
| QUANTITY | 5 |
| DESTINATION | |
| REMARKS | |
| O RING,4MM | |
| REF # | 670 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TUBE-RUBBER,7X10X1000 | |
| REF # | 702 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
