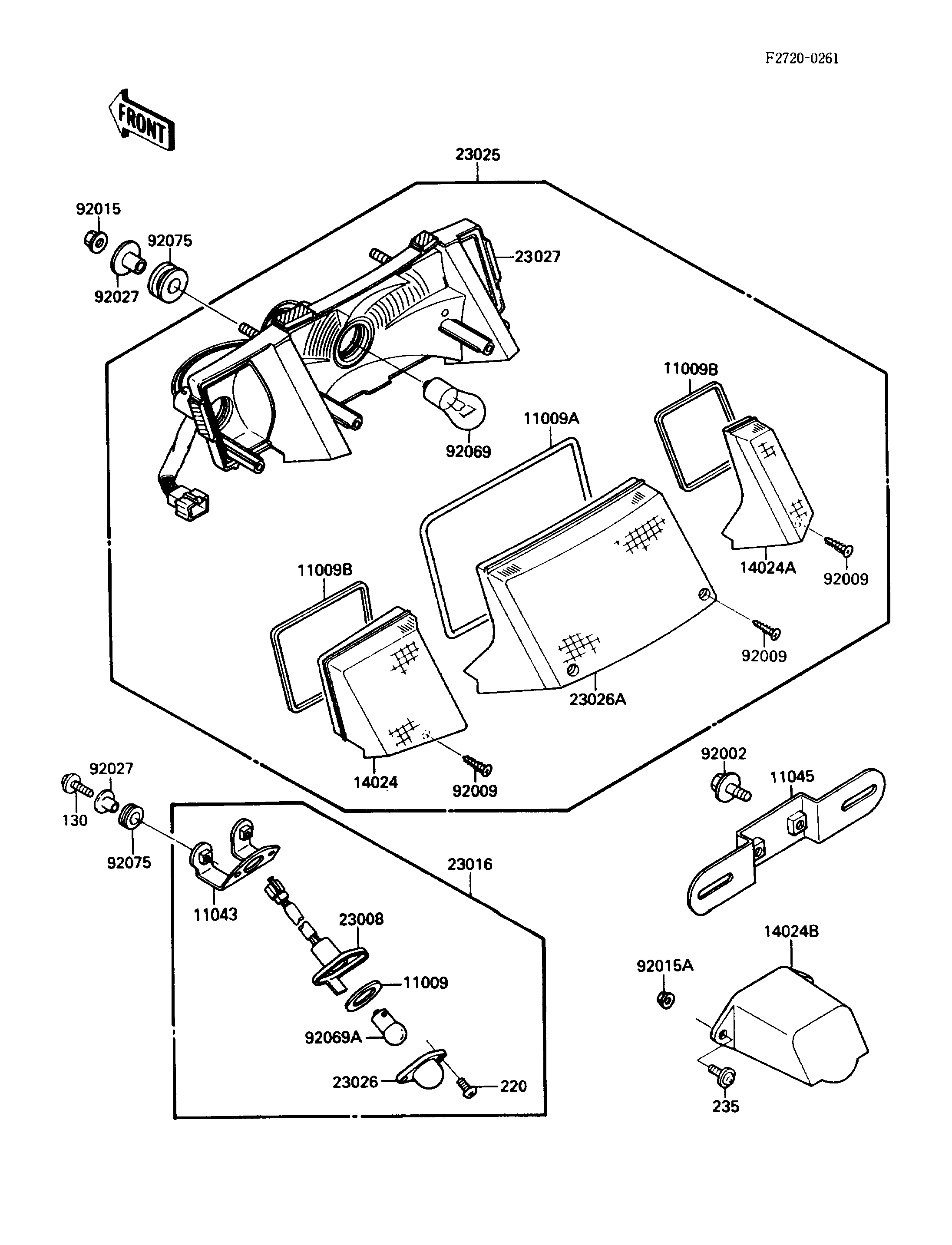

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET,LICENSE PLATE LAMP | 11009 | 11009-1372 | 1 | ||
| GASKET,TAIL LAMP LENS | 11009A | 11009-1663 | 1 | ||
| GASKET,SIGNAL LAMP LENS | 11009B | 11009-1664 | 2 | ||
| BRACKET,LICENSE PLATE LAMP | 11043 | 11043-1497 | 1 | ||
| BRACKET,LICENSE | 11045 | 11045-1387 | 1 | ||
| COVER,TAIL LAMP,LH | 14024 | 14024-1662 | 1 | ||
| COVER,TAIL LAMP,RH | 14024A | 14024-1663 | 1 | ||
| COVER,LICENSE PLATE LAMP | 14024B | 14025-1821 | 1 | ||
| SOCKET-ASSY,LICENSE PLATE LAMP | 23008 | 23008-1221 | 1 | ||
| LAMP-ASSY,LICENSE PLATE | 23016 | 23016-1053 | 1 | ||
| LAMP-TAIL | 23025 | 23025-1177 | 1 | ||
| LENS,LAMP | 23026 | 23026-1054 | 1 | ||
| LENS,TAIL LAMP | 23026A | 23026-1101 | 1 | ||
| BODY-COMP-TAIL LAMP | 23027 | 23027-1088 | 1 | ||
| BOLT,6X14 | 92002 | 92002-1351 | 2 | ||
| SCREW,TAPPING,4X16 | 92009 | 92009-1063 | 4 | ||
| NUT,FLANGED,6MM | 92015 | 92015-1193 | 2 | ||
| NUT,FLANGED,6MM | 92015A | 92015-1367 | 2 | ||
| COLLAR,L=13.1 | 92027 | 92027-251 | 4 | ||
| BULB,12V 27/8W | 92069 | 92069-059 | 1 | ||
| BULB,12V 8W | 92069A | 92069-1012 | 1 | ||
| DAMPER | 92075 | 92075-1690 | 4 | ||
| BOLT-FLANGED | 130 | 130D0625 | 2 | ||
| SCREW-PAN-CROS | 220 | 220B0410 | 2 | ||
| SCREW-PAN-WP-CROS | 235 | 235C0620 | 2 |
| GASKET,LICENSE PLATE LAMP | |
| REF # | 11009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GASKET,TAIL LAMP LENS | |
| REF # | 11009A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GASKET,SIGNAL LAMP LENS | |
| REF # | 11009B |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BRACKET,LICENSE PLATE LAMP | |
| REF # | 11043 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRACKET,LICENSE | |
| REF # | 11045 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,TAIL LAMP,LH | |
| REF # | 14024 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,TAIL LAMP,RH | |
| REF # | 14024A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,LICENSE PLATE LAMP | |
| REF # | 14024B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SOCKET-ASSY,LICENSE PLATE LAMP | |
| REF # | 23008 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LAMP-ASSY,LICENSE PLATE | |
| REF # | 23016 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LAMP-TAIL | |
| REF # | 23025 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LENS,LAMP | |
| REF # | 23026 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LENS,TAIL LAMP | |
| REF # | 23026A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BODY-COMP-TAIL LAMP | |
| REF # | 23027 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,6X14 | |
| REF # | 92002 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SCREW,TAPPING,4X16 | |
| REF # | 92009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| NUT,FLANGED,6MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| NUT,FLANGED,6MM | |
| REF # | 92015A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| COLLAR,L=13.1 | |
| REF # | 92027 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BULB,12V 27/8W | |
| REF # | 92069 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BULB,12V 8W | |
| REF # | 92069A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92075 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED | |
| REF # | 130 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SCREW-PAN-CROS | |
| REF # | 220 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SCREW-PAN-WP-CROS | |
| REF # | 235 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
