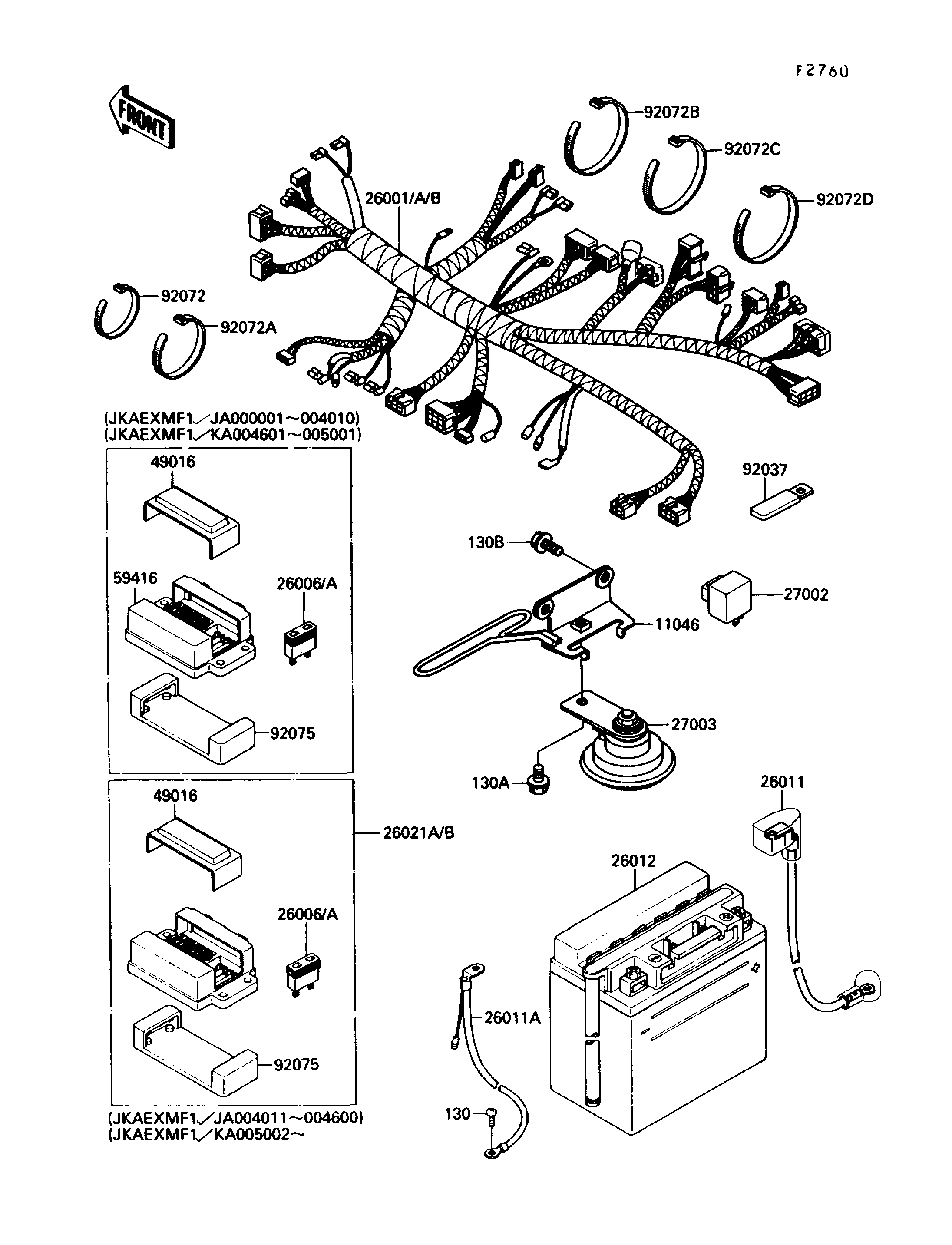

1989 Ninja® 250R - Chassis Electrical Equipment
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET,HORN&CABLE | 11046 | 11046-1233 | 1 | ||
| HARNESS,MAIN | 26001 | 26001-1899 | 1 | CAUS | |
| HARNESS,MAIN | 26001A | 26001-1929 | 1 | CN | |
| HARNESS,MAIN | 26001B | 26001-1929 | 1 | CAUS | |
| FUSE,30A-G | 26006 | 26006-1006 | 1 | CAUS | |
| FUSE,30A-G | 26006 | 26006-1006 | 1 | CN | |
| FUSE,10A-R | 26006A | 26006-1007 | 5 | CAUS | |
| FUSE,10A-R | 26006A | 26006-1007 | 5 | CN | |
| WIRE-LEAD,BATTERY(+) | 26011 | 26011-1352 | 1 | ||
| WIRE-LEAD,BATTERY(-) | 26011A | 26011-1353 | 1 | ||
| BATTERY,12V 8AH,FB9L-A2K(K2) | 26012 | 26012-1205 | 1 | ||
| JUNCTION BOX | 26021A | 26021-1071 | 1 | CN | |
| JUNCTION BOX | 26021B | 26021-1071 | 1 | CAUS | |
| RELAY-ASSY,TURN SIGNAL | 27002 | 27002-1053 | 1 | ||
| HORN | 27003 | 27003-1288 | 1 | ||
| COVER-SEAL,FUSE | 49016 | 49016-1125 | 1 | CAUS | |
| COVER-SEAL,FUSE | 49016 | 49016-1125 | 1 | CN | |
| CASE-ELECTRIC,JUNCTION BOX | 59416 | 59416-1059 | 1 | CAUS | |
| CLAMP,WIRING HARNESS | 92037 | 92037-1069 | 5 | ||
| BAND,L=123 | 92072 | 92072-030 | 3 | ||
| BAND,L=149 | 92072A | 92072-031 | 2 | ||
| BAND,L=218 | 92072B | 92072-032 | 1 | CN | |
| BAND,L=186 | 92072C | 92072-056 | 1 | CAUS | |
| BAND,L=185 | 92072D | 92072-1195 | 2 | ||
| DAMPER,JUNCTION BOX | 92075 | 92075-1688 | 1 | CAUS | |
| DAMPER,JUNCTION BOX | 92075 | 92075-1688 | 1 | CN | |
| BOLT-FLANGED,6X12 | 130 | 130B0612 | 1 | ||
| BOLT-FLANGED,6X12 | 130A | 130C0612 | 1 | ||
| BOLT-FLANGED,6X14 | 130B | 130G0614 | 2 |
