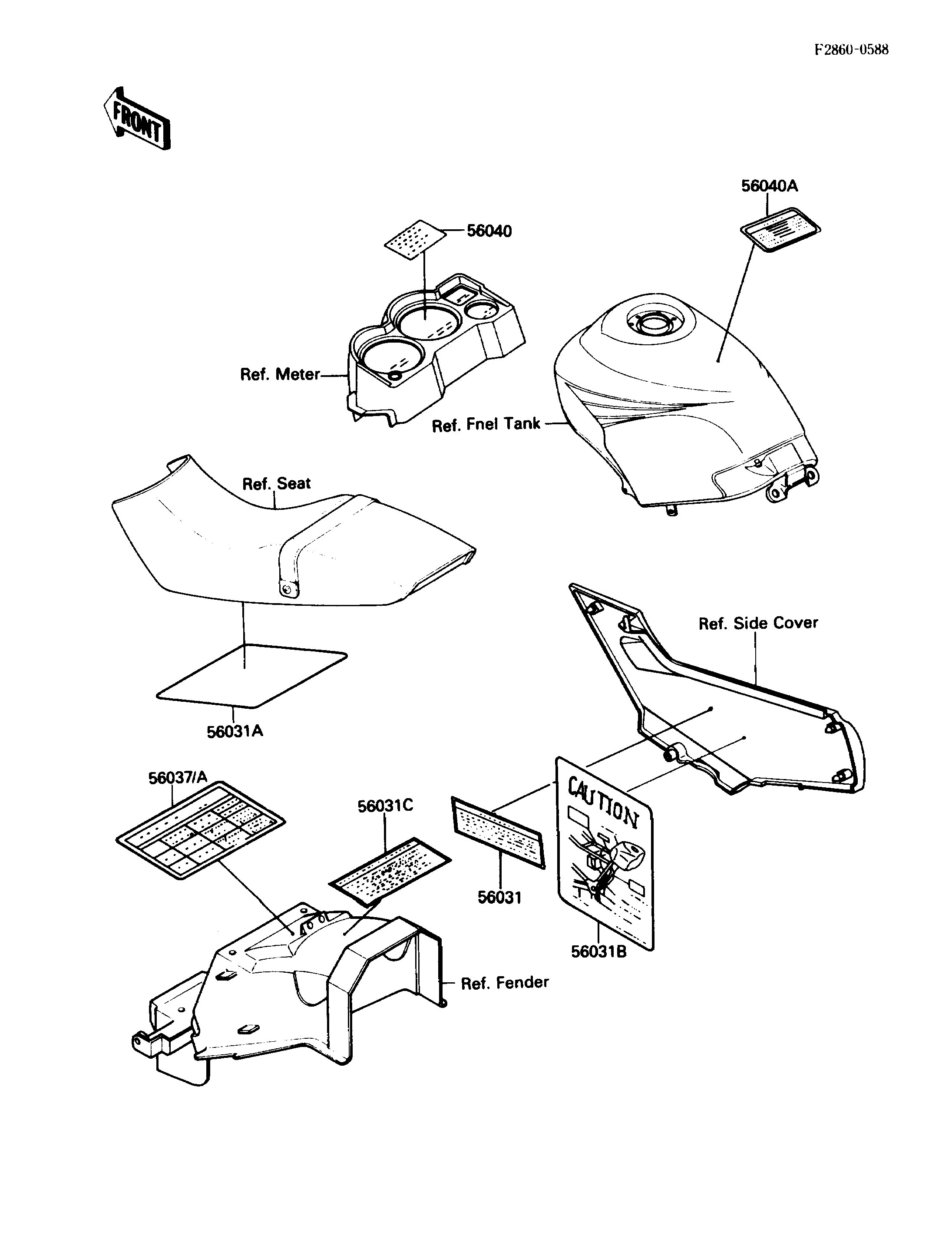

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
LABEL-MANUAL,OIL&OIL FILTER 56031 56031-1451 1
LABEL-MANUAL,DAILY SAFETY 56031A 56031-1453 1
LABEL-MANUAL,BATTERY VENT 56031B 56031-1579 1
LABEL-MANUAL,CHAIN 56031C 56031-1601 1
LABEL-SPECIFICATION,TIRE&LOAD 56037 56037-1401 1 CAUS
LABEL-SPECIFICATION,TIRE&LOAD 56037A 56037-1412 1 CN
LABEL-WARNING,BREAK IN CAUTION 56040 56040-1007 1 CAUS
LABEL-WARNING,EVAPO 56040A 56040-1121 1 CA
