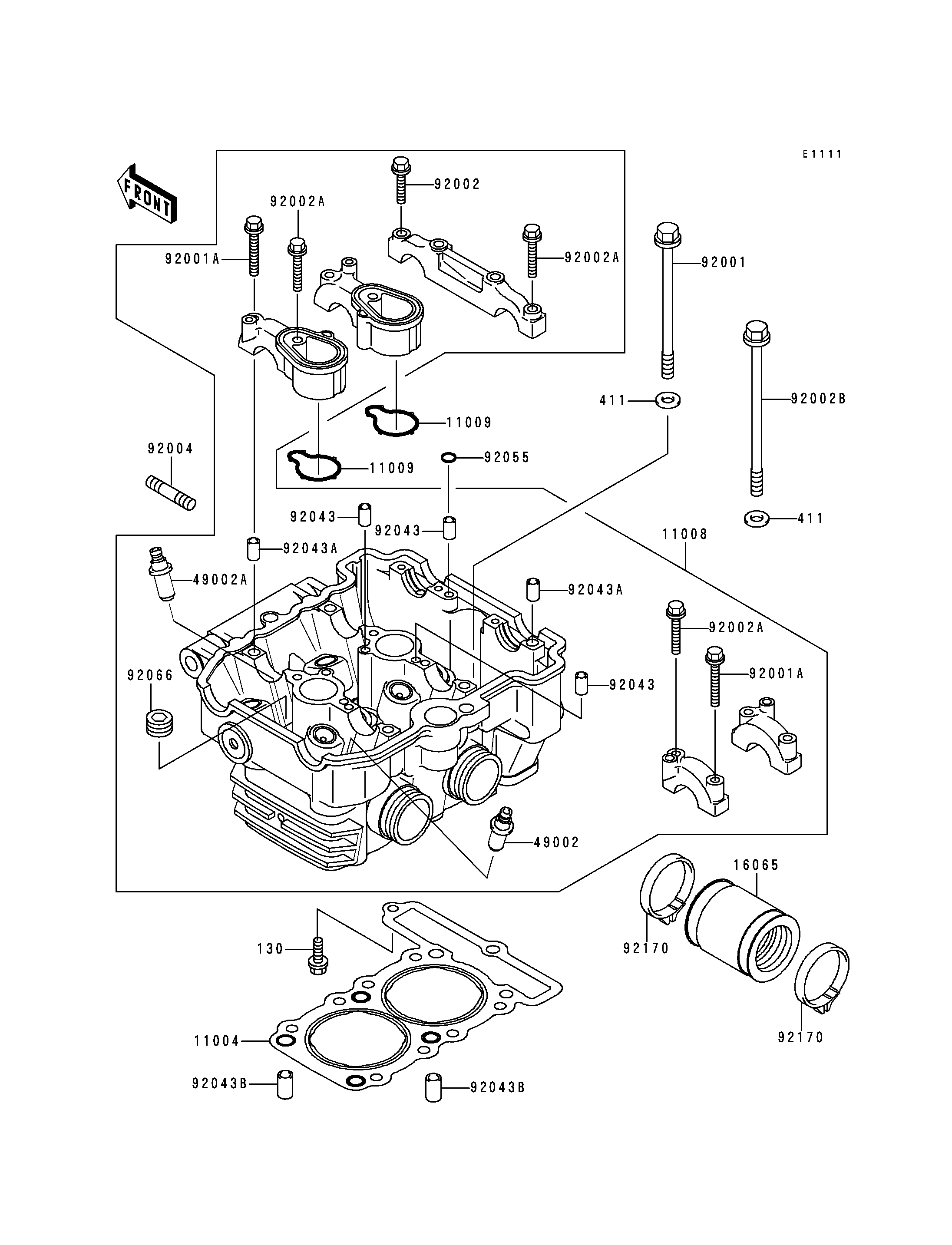

Parts Diagrams |
130
411
411
11004
11008
11009
11009
16065
49002
49002A
92001
92001A
92001A
92002
92002A
92002A
92002A
92002B
92004
92043
92043
92043
92043A
92043A
92043B
92043B
92055
92066
92170
92170
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-FLANGED,6X25 | 130 | 130J0625 | 1 | ||
WASHER-PLAIN,8MM | 411 | 411B0800 | 7 | ||
GASKET-HEAD | 11004 | 11004-1207 | 1 | ||
HEAD-COMP-CYLINDER | 11008 | 11008-1201 | 1 | ||
GASKET,CAMSHAFT BRACKET | 11009 | 11009-1573 | 2 | ||
HOLDER-CARBURETOR | 16065 | 16065-1156 | 2 | ||
GUIDE-VALVE,INTAKE | 49002 | 49002-1070 | AR | ||
GUIDE-VALVE,EXHAUST | 49002A | 49002-1071 | AR | ||
BOLT,8X115 | 92001 | 92001-1481 | 1 | ||
BOLT,6X46 | 92001A | 92001-1872 | 4 | ||
BOLT,6X30 | 92002 | 92002-1755 | 1 | ||
BOLT,6X40 | 92002A | 92002-1756 | 7 | ||
BOLT,8X146 | 92002B | 92002-1832 | 6 | ||
STUD,6X27 | 92004 | 92004-066 | 4 | ||
PIN,4.2X6X12 | 92043 | 92043-1262 | 5 | ||
PIN,6.2X8X14 | 92043A | 92043-1263 | 5 | ||
PIN,8.2X10X14 | 92043B | 92043-1264 | 2 | ||
RING-O,5.5X1.5 | 92055 | 92055-1339 | 1 | ||
PLUG | 92066 | 92066-1253 | 3 | ||
CLAMP | 92170 | 92170-1438 | 4 |
BOLT-FLANGED,6X25 | |
REF # | 130 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER-PLAIN,8MM | |
REF # | 411 |
---|---|
PART NUMBER | |
QUANTITY | 7 |
DESTINATION | |
REMARKS |
GASKET-HEAD | |
REF # | 11004 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
HEAD-COMP-CYLINDER | |
REF # | 11008 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GASKET,CAMSHAFT BRACKET | |
REF # | 11009 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
HOLDER-CARBURETOR | |
REF # | 16065 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
GUIDE-VALVE,INTAKE | |
REF # | 49002 |
---|---|
PART NUMBER | |
QUANTITY | AR |
DESTINATION | |
REMARKS |
GUIDE-VALVE,EXHAUST | |
REF # | 49002A |
---|---|
PART NUMBER | |
QUANTITY | AR |
DESTINATION | |
REMARKS |
BOLT,8X115 | |
REF # | 92001 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,6X46 | |
REF # | 92001A |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
BOLT,6X30 | |
REF # | 92002 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,6X40 | |
REF # | 92002A |
---|---|
PART NUMBER | |
QUANTITY | 7 |
DESTINATION | |
REMARKS |
BOLT,8X146 | |
REF # | 92002B |
---|---|
PART NUMBER | |
QUANTITY | 6 |
DESTINATION | |
REMARKS |
STUD,6X27 | |
REF # | 92004 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
PIN,4.2X6X12 | |
REF # | 92043 |
---|---|
PART NUMBER | |
QUANTITY | 5 |
DESTINATION | |
REMARKS |
PIN,6.2X8X14 | |
REF # | 92043A |
---|---|
PART NUMBER | |
QUANTITY | 5 |
DESTINATION | |
REMARKS |
PIN,8.2X10X14 | |
REF # | 92043B |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
RING-O,5.5X1.5 | |
REF # | 92055 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PLUG | |
REF # | 92066 |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
CLAMP | |
REF # | 92170 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
