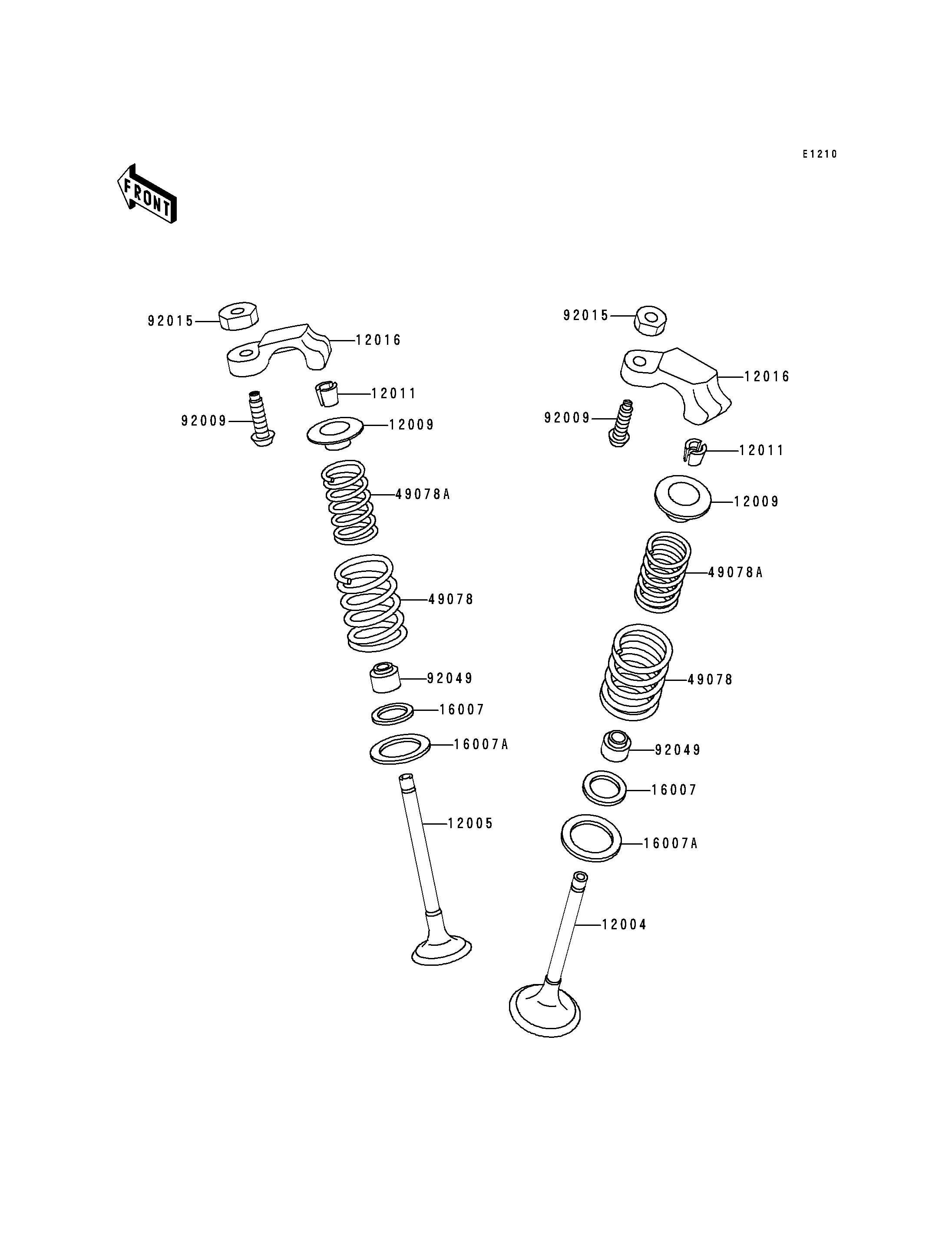

1994 Ninja® 250R - Valve(s)

DOWNLOAD PDF
SELECT A NEW PART
12004
12005
12009
12009
12011
12011
12016
12016
16007
16007
16007A
16007A
49078
49078
49078A
49078A
92009
92009
92015
92015
92049
92049
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
VALVE-INTAKE 12004 12004-1074 4
VALVE-EXHAUST 12005 12005-1091 4
RETAINER-VALVE SPRING 12009 12009-1060 8
COLLET 12011 12011-1051 16
ARM-ROCKER 12016 12016-1067 8
SEAT-SPRING,12.1X16.2X0.5 16007 16007-1177 8
SEAT-SPRING,17.5X23.8X0.5 16007A 16007-1178 8
SPRING-ENGINE VALVE 49078 49078-1078 8
SPRING-ENGINE VALVE 49078A 49078-1079 8
SCREW,6MM 92009 92009-1424 8
NUT,6MM 92015 92015-1586 8
SEAL-OIL,VSB58.558 92049 92049-1218 8
