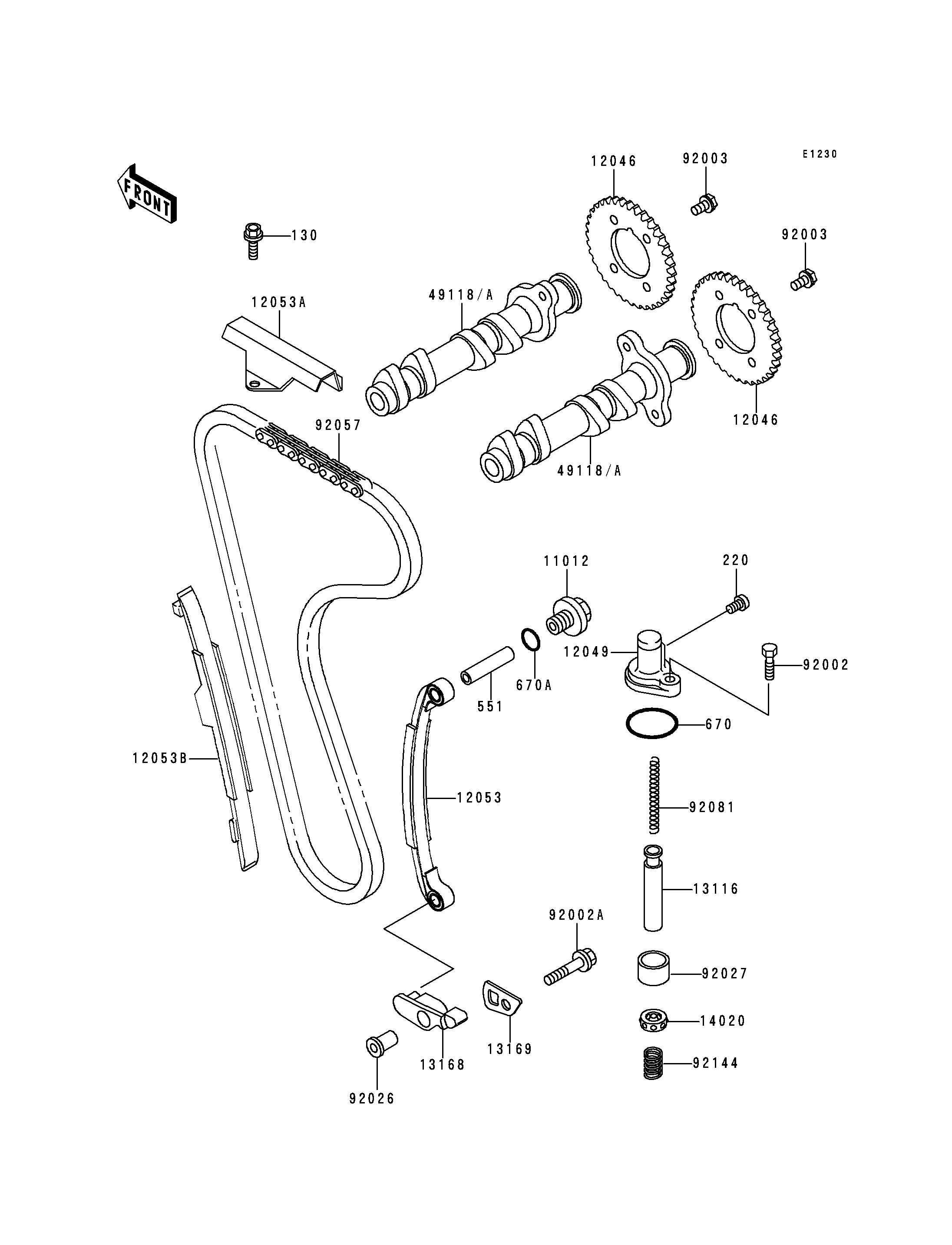

1994 Ninja® 250R - Camshaft(s)/Tensioner

DOWNLOAD PDF
SELECT A NEW PART
130
220
551
670
670A
11012
12046
12046
12049
12053
12053A
12053B
13116
13168
13169
14020
49118
49118
92002
92002A
92003
92003
92026
92027
92057
92081
92144
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X14 130 130P0614 1
SCREW-PAN-CROS 220 220C0508 1
PIN-DOWEL 551 551A0835 1
O RING,21MM 670 670B2021 1
O RING,14MM 670A 670D2014 1
CAP,BOLT 11012 11012-1677 1
SPROCKET,CAMSHAFT,38T 12046 12046-1085 2
TENSIONER 12049 12049-1053 1
GUIDE-CHAIN,RR 12053 12053-1191 1
GUIDE-CHAIN,UPP 12053A 12053-1192 1
GUIDE-CHAIN,FR 12053B 12053-1205 1
ROD-PUSH,TENSIONER 13116 13116-1138 1
LEVER,TENSIONER 13168 13168-1313 1
PLATE,CHAIN GUIDE 13169 13169-1661 1
RETAINER,TENSIONER 14020 14020-1054 1
CAMSHAFT-COMP 49118 49118-1054 2
BOLT,6X25 92002 92002-1344 2
BOLT,8X35 92002A 92002-1824 1
BOLT,FLANGED,6X11 92003 92003-208 4
SPACER 92026 92026-1266 1
COLLAR,TENSIONER 92027 92027-1240 1
CHAIN,CAM,82RH2010-124L 92057 92057-1210 1
SPRING,TENSIONER 92081 92081-1984 1
SPRING,TENSIONER 92144 92144-1274 1
