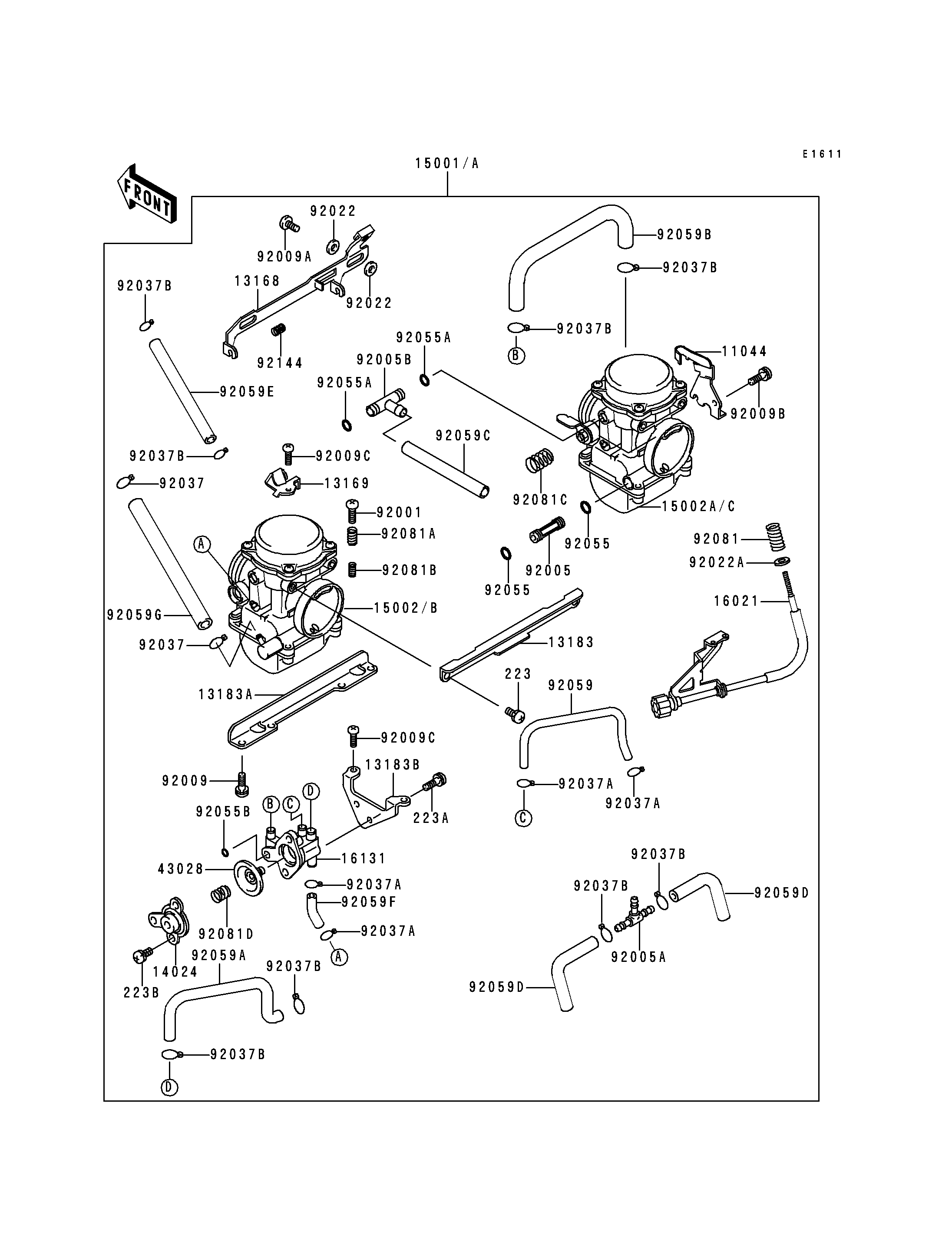

1994 Ninja® 250R - Carburetor

DOWNLOAD PDF
SELECT A NEW PART
11044
11044
13168
13168
13169
13169
13183
13183
13183A
13183A
13183B
13183B
14024
14024
16021
16021
16131
16131
43028
43028
92001
92001
92005
92005
92005B
92005B
92009
92009
92009A
92009A
92009B
92009B
92009C
92009C
92009C
92009C
92022
92022
92022
92022
92022A
92022A
92037
92037
92037
92037
92037A
92037A
92037A
92037A
92037A
92037A
92037A
92037A
92055
92055
92055
92055
92055A
92055A
92055A
92055A
92055B
92055B
223
223
223A
223A
223B
223B
92059
92059
92059A
92059A
92059C
92059C
92059E
92059E
92059F
92059F
92059G
92059G
92081
92081
92081A
92081A
92081B
92081B
92081C
92081C
92081D
92081D
92144
92144
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,THROTTLE CABLE 11044 11044-1061 1
LEVER,STARTER 13168 13168-1330 1
PLATE,STARTER CABLE 13169 13169-1965 1
PLATE,CARBURETOR STAY,UPP 13183 13183-1029 1
PLATE,CARBURETOR STAY,LWR,6MM 13183A 13183-1030 1
PLATE,AIR CUT VALVE 13183B 13183-1031 1
COVER,AIR CUT VALVE 14024 14024-1327 1
SCREW-THROTTLE STOP 16021 16021-1114 1
BODY-VALVE,DIAPHRAGM 16131 16131-1062 1
DIAPHRAGM,AIR CUT VALVE 43028 43028-1053 1
BOLT,THROTTLE ADJUST 92001 92001-1998 1
FITTING,FUEL,I-TYPE 92005 92005-1109 1
FITTING,T-TYPE 92005B 92005-1125 1
SCREW,6X16 92009 92009-1129 4
SCREW 92009A 92009-1262 2
SCREW,5X10 92009B 92009-1365 1
SCREW,4X18 92009C 92009-1446 3
WASHER,6.1X11X0.8,POLYACETAL 92022 92022-1199 4
WASHER,PLAIN,STOP SPRING 92022A 92022-1480 1
CLAMP,FUEL TUBE 92037 92037-1075 2
CLAMP,TUBE 92037A 92037-1142 4
RING-O 92055 92055-1004 2
RING-O,FUEL FITTING 92055A 92055-1223 2
RING-O 92055B 92055-1245 1
SCREW-PAN-WS-CROS 223 223C0510 4
SCREW-PAN-WS-CROS 223A 223D0408 2
SCREW-PAN-WS-CROS 223B 223D0410 2
TUBE,3.5X6.5X180 92059 92059-1140 1
TUBE,5X9X160 92059A 92059-1201 1
TUBE,6.5X9.5X500 92059C 92059-1465 1
TUBE,5X9X140 92059E 92059-1634 1
TUBE,3.5X6.5X26 92059F 92059-1722 1
TUBE,7.3X12.5X150 92059G 92059-1860 1
SPRING,THROTTLE STOP SCREW 92081 92081-1617 1
SPRING,THROTTLE ADJUST UPP 92081A 92081-1620 1
SPRING,THROTTLE ADJUST LWR 92081B 92081-1621 1
SPRING,THROTTLE ADJUST CNT 92081C 92081-1622 1
SPRING,AIR CUT VALVE 92081D 92081-1719 1
SPRING,THROTTLE ADJUST UPP 92144 92144-1048 1
CARBURETOR-ASSY 15001 15001-1433 1
CARBURETOR-ASSY 15001A 15001-1434 1
CARBURETOR,LH 15002 15002-1600 1
CARBURETOR,RH 15002A 15002-1601 1
CARBURETOR,LH 15002B 15002-1602 1
CARBURETOR,RH 15002C 15002-1603 1
FITTING,FUEL,T-TYPE 92005A 92005-1112 1
CLAMP,TUBE 92037B 92037-1477 6
CLAMP,TUBE 92037B 92037-1477 8
TUBE,5X9X180 92059B 92059-1377 1
TUBE,5X9X90 92059D 92059-1627 2
