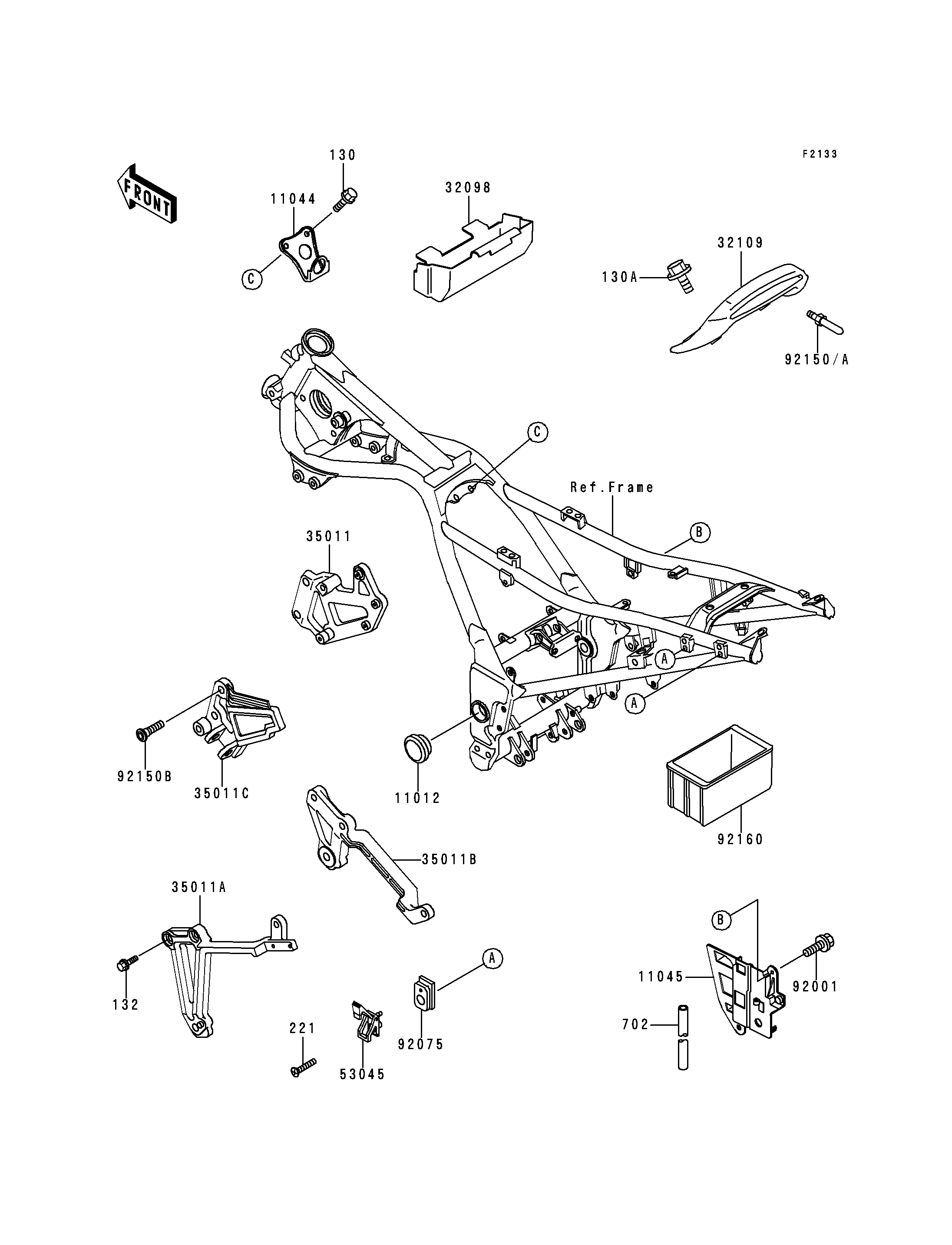

1994 Ninja® 250R - Electro Bracket

DOWNLOAD PDF
SELECT A NEW PART
130
130A
132
221
702
11012
11044
11045
32098
32109
35011
35011A
35011B
35011C
53045
92001
92075
92150A
92150B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X10 130 130B0610 2
BOLT-FLANGED,8X20 130A 130B0820 2
BOLT-FLANGED-SMALL 132 132G0820 6
SCREW-CSK-CROS 221 221E0625 4
TUBE-RUBBER,5X8X500 702 702A05500 1
CAP,SWING ARM BRACKET 11012 11012-1459 2
BRACKET,AIR FILTER 11044 11044-1828 1
BRACKET,ELECTRIC 11045 11045-1578 1
CASE-TOOL 32098 32098-1076 1
GRIP-FRAME,RR,EBONY 32109 32109-1163-H8 1
STAY,FR,RH 35011 35011-1355 1
STAY,MUFFLER,LH 35011A 35011-1356 1
STAY,MUFFLER,RH 35011B 35011-1357 1
STAY,FR,LH 35011C 35011-1380 1
HOOK-ASSY,ROPE 53045 53045-1051 4
BOLT,6X14,BLACK 92001 92001-1847 2
DAMPER,ROPE HOOK 92075 92075-1726 4
BOLT 92150A 92150-1002 2 (OPTION)
BOLT,SOCKET,8X20 92150B 92150-1839 5
