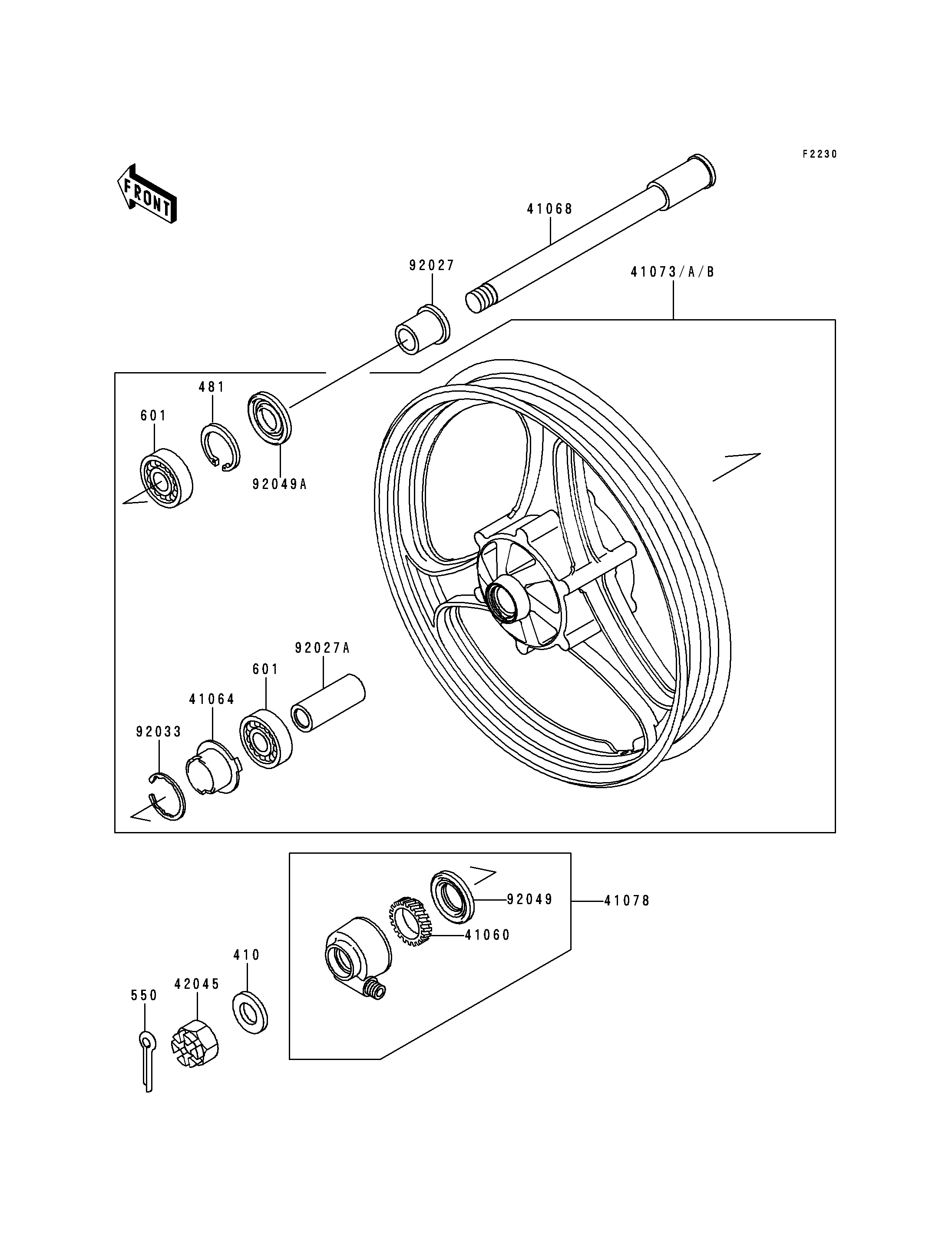

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
WASHER-PLAIN-SMALL,14MM 410 410B1400 1
CIRCLIP-TYPE-C,35MM 481 481J3500 1
PIN-COTTER,3.0X25 550 550D3025 1
BEARING-BALL,#6202UG 601 601B6202UG 2
GEAR-METER SCREW,23T 41060 41060-1107 1
RECEIVER-SPEEDOMETER 41064 41064-1006 1
AXLE,FR 41068 41068-1220 1
WHEEL-ASSY,FR,P.C.GRAY 41073 41073-1365-DH 1
CASE-ASSY-METER GEAR 41078 41078-1055 1
NUT,CASTLE,14MM 42045 42045-020 1
COLLAR,L=36.5 92027 92027-1979 1
COLLAR,15.2X22X60 92027A 92027-1980 1
RING-SNAP,42MM 92033 92033-1041 1
SEAL-OIL,BJN30427-C3 92049 92049-1057 1
SEAL-OIL 92049A 92049-1348 1
