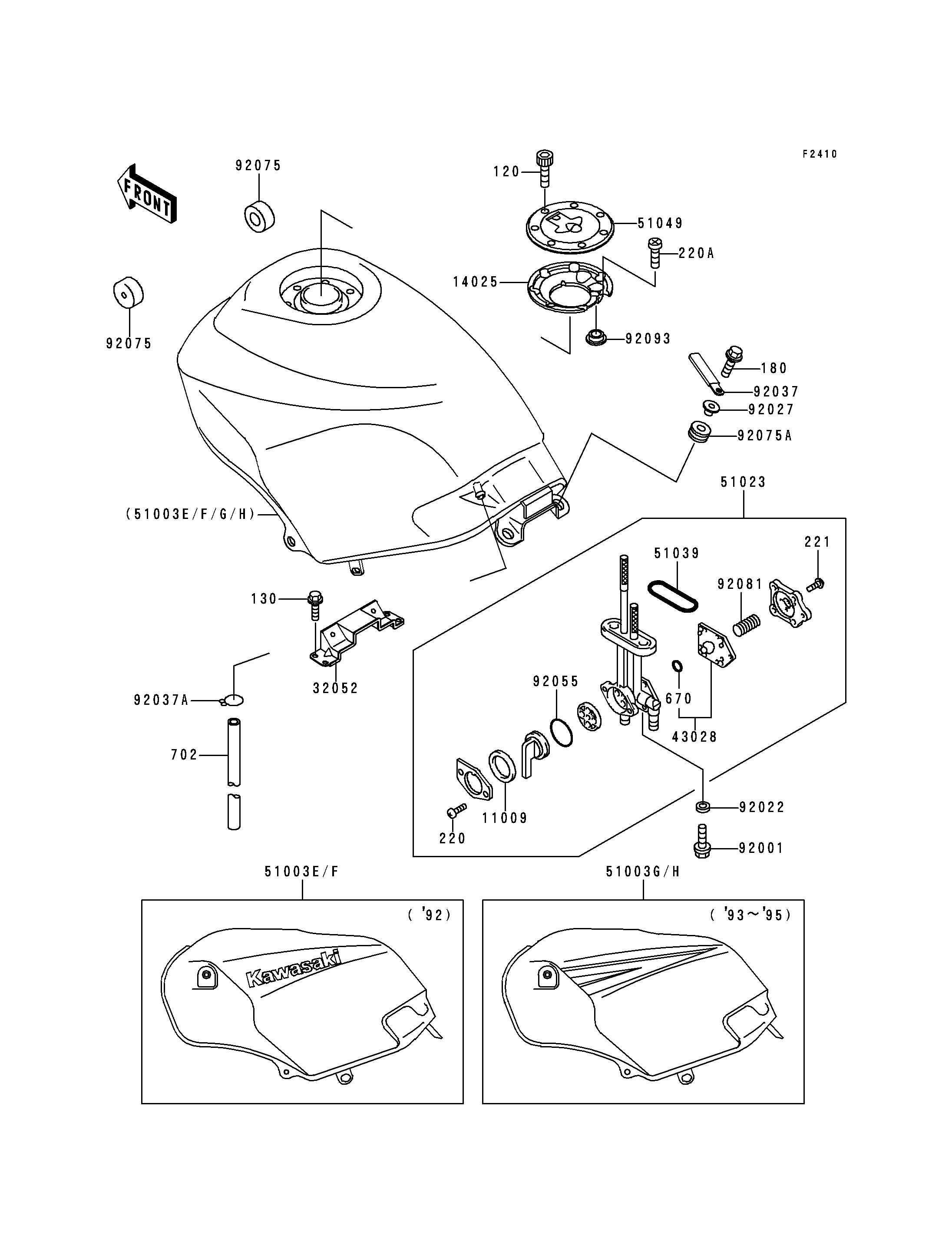

Parts Diagrams |
11009
11009
14025
14025
32052
32052
43028
43028
51023
51023
120
120
130
130
180
180
220
220
220A
220A
221
221
670
670
702
702
51039
51039
51049
51049
92001
92001
92022
92022
92027
92027
92037
92037
92037A
92037A
92055
92055
92075
92075
92075
92075
92075A
92075A
92081
92081
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
GASKET,TAP VALVE | 11009 | 11009-1188 | 1 | ||
COVER,TANK CAP | 14025 | 14025-1913 | 1 | ||
BRACKET-TANK,RR | 32052 | 32052-1254 | 1 | ||
DIAPHRAGM,TAP | 43028 | 43028-1068 | 1 | ||
TAP-ASSY,FUEL | 51023 | 51023-1139 | 1 | ||
BOLT-SOCKET | 120 | 120S0512 | 7 | ||
BOLT-FLANGED,6X10 | 130 | 130G0610 | 4 | ||
BOLT-UPSET-WS,6X25 | 180 | 180D0625 | 2 | ||
SCREW-PAN-CROS | 220 | 220C0308 | 2 | ||
SCREW-PAN-CROS | 220A | 220C0508 | 1 | ||
SCREW-CSK-CROS,4X14 | 221 | 221B0414 | 5 | ||
O RING,4MM | 670 | 670B1504 | 1 | ||
TUBE-RUBBER,7X10X1000 | 702 | 702A071000 | 1 | ||
RING,TAP FLANGED | 51039 | 51039-003 | 1 | ||
CAP-TANK,FUEL | 51049 | 51049-1079 | 1 | ||
BOLT,6X20 | 92001 | 92001-1091 | 2 | ||
WASHER,6.2X11X1.5 | 92022 | 92022-183 | 2 | ||
COLLAR,L=13.1 | 92027 | 92027-251 | 2 | ||
CLAMP,WIRING HARNESS | 92037 | 92037-1069 | 1 | ||
CLAMP | 92037A | 92037-1712 | 1 | ||
RING-O,TAP LEVER | 92055 | 92055-1085 | 1 | ||
DAMPER,FUEL TANK,FR | 92075 | 92075-1115 | 2 | ||
DAMPER | 92075A | 92075-1690 | 2 | ||
SPRING,TAP DIAPHRAGM | 92081 | 92081-1240 | 1 | ||
TANK-COMP-FUEL,EBONY | 51003G | 51003-5480-H8 | 1 | ||
TANK-COMP-FUEL,EBONY | 51003H | 51003-5481-H8 | 1 | ||
SEAL,FUEL TANK CAP | 92093 | 92093-1030 | 1 |
GASKET,TAP VALVE | |
REF # | 11009 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COVER,TANK CAP | |
REF # | 14025 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BRACKET-TANK,RR | |
REF # | 32052 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
DIAPHRAGM,TAP | |
REF # | 43028 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
TAP-ASSY,FUEL | |
REF # | 51023 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT-SOCKET | |
REF # | 120 |
---|---|
PART NUMBER | |
QUANTITY | 7 |
DESTINATION | |
REMARKS |
BOLT-FLANGED,6X10 | |
REF # | 130 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
BOLT-UPSET-WS,6X25 | |
REF # | 180 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SCREW-PAN-CROS | |
REF # | 220 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SCREW-PAN-CROS | |
REF # | 220A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SCREW-CSK-CROS,4X14 | |
REF # | 221 |
---|---|
PART NUMBER | |
QUANTITY | 5 |
DESTINATION | |
REMARKS |
O RING,4MM | |
REF # | 670 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
TUBE-RUBBER,7X10X1000 | |
REF # | 702 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RING,TAP FLANGED | |
REF # | 51039 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CAP-TANK,FUEL | |
REF # | 51049 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,6X20 | |
REF # | 92001 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
WASHER,6.2X11X1.5 | |
REF # | 92022 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
COLLAR,L=13.1 | |
REF # | 92027 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
CLAMP,WIRING HARNESS | |
REF # | 92037 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CLAMP | |
REF # | 92037A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RING-O,TAP LEVER | |
REF # | 92055 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
DAMPER,FUEL TANK,FR | |
REF # | 92075 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
DAMPER | |
REF # | 92075A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SPRING,TAP DIAPHRAGM | |
REF # | 92081 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
TANK-COMP-FUEL,EBONY | |
REF # | 51003G |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
TANK-COMP-FUEL,EBONY | |
REF # | 51003H |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SEAL,FUEL TANK CAP | |
REF # | 92093 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
