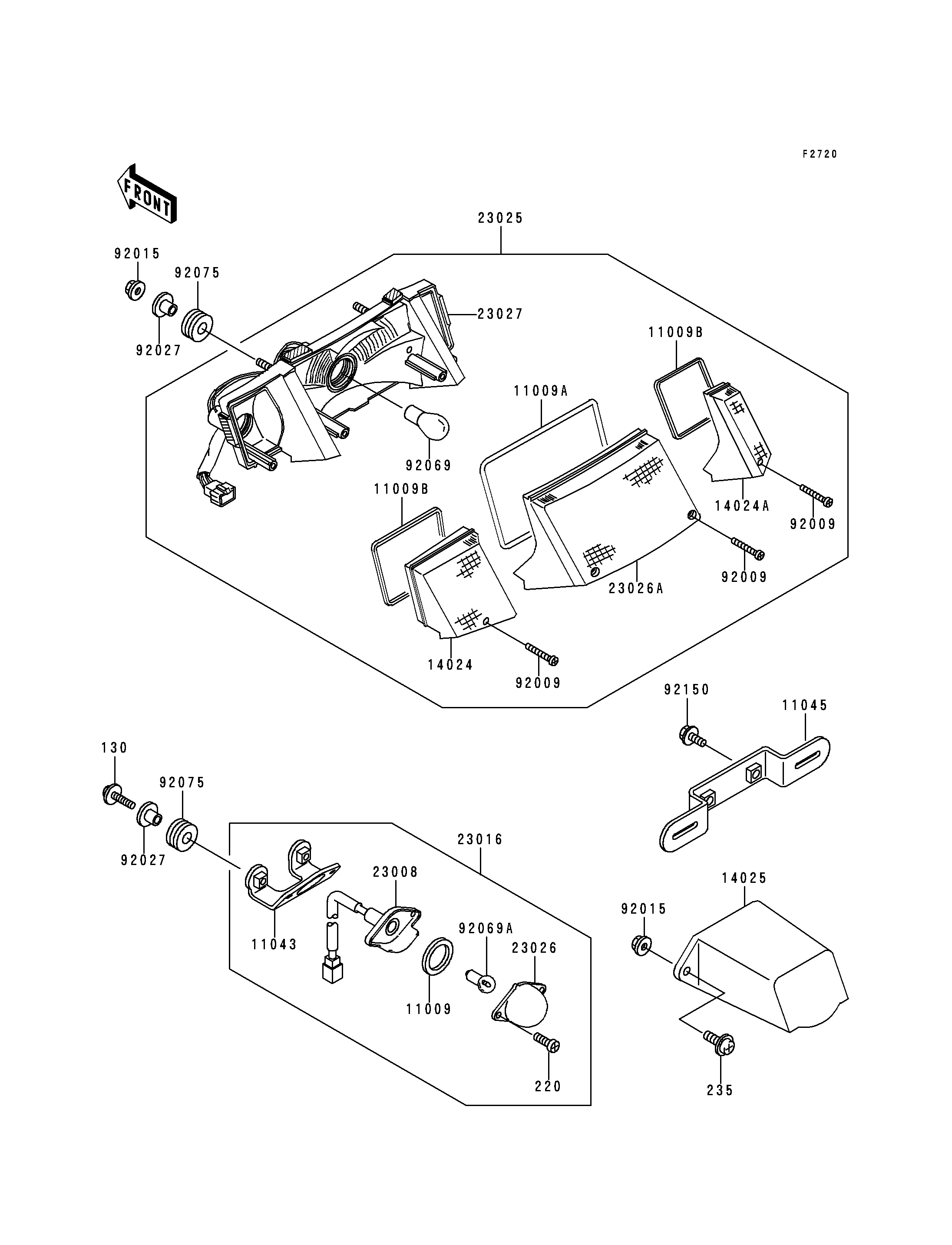

1994 Ninja® 250R - Taillight(s)

DOWNLOAD PDF
SELECT A NEW PART
130
220
235
11009
11009A
11009B
11009B
11043
11045
14024
14024A
14025
23008
23016
23025
23026
23026A
23027
92009
92009
92009
92015
92015
92027
92027
92069
92069A
92075
92075
92150
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X25 130 130H0625 2
SCREW-PAN-CROS 220 220B0410 2
SCREW-PAN-WP-CROS 235 235C0620 2
GASKET,LICENSE PLATE LAMP 11009 11009-1372 1
GASKET,TAIL LAMP LENS 11009A 11009-1663 1
GASKET,SIGNAL LAMP LENS 11009B 11009-1664 2
BRACKET,LICENSE PLATE LAMP 11043 11043-1497 1
BRACKET,LICENSE 11045 11045-1387 1
COVER,TAIL LAMP,LH 14024 14024-1662 1
COVER,TAIL LAMP,RH 14024A 14024-1663 1
COVER,LICENSE PLATE LAMP 14025 14025-1821 1
SOCKET-ASSY,LICENSE PLATE LAMP 23008 23008-1221 1
LAMP-ASSY,LICENSE PLATE 23016 23016-1053 1
LAMP-TAIL 23025 23025-1177 1
LENS,LAMP 23026 23026-1054 1
LENS,TAIL LAMP 23026A 23026-1101 1
BODY-COMP-TAIL LAMP 23027 23027-1088 1
SCREW,TAPPING,4X16 92009 92009-1063 4
NUT,FLANGED,6MM 92015 92015-1367 4
COLLAR,L=13.1 92027 92027-251 4
BULB,12V 27/8W 92069 92069-059 1
BULB,12V 8W 92069A 92069-1012 1
DAMPER 92075 92075-1690 4
BOLT,6X14 92150 92150-1133 2
