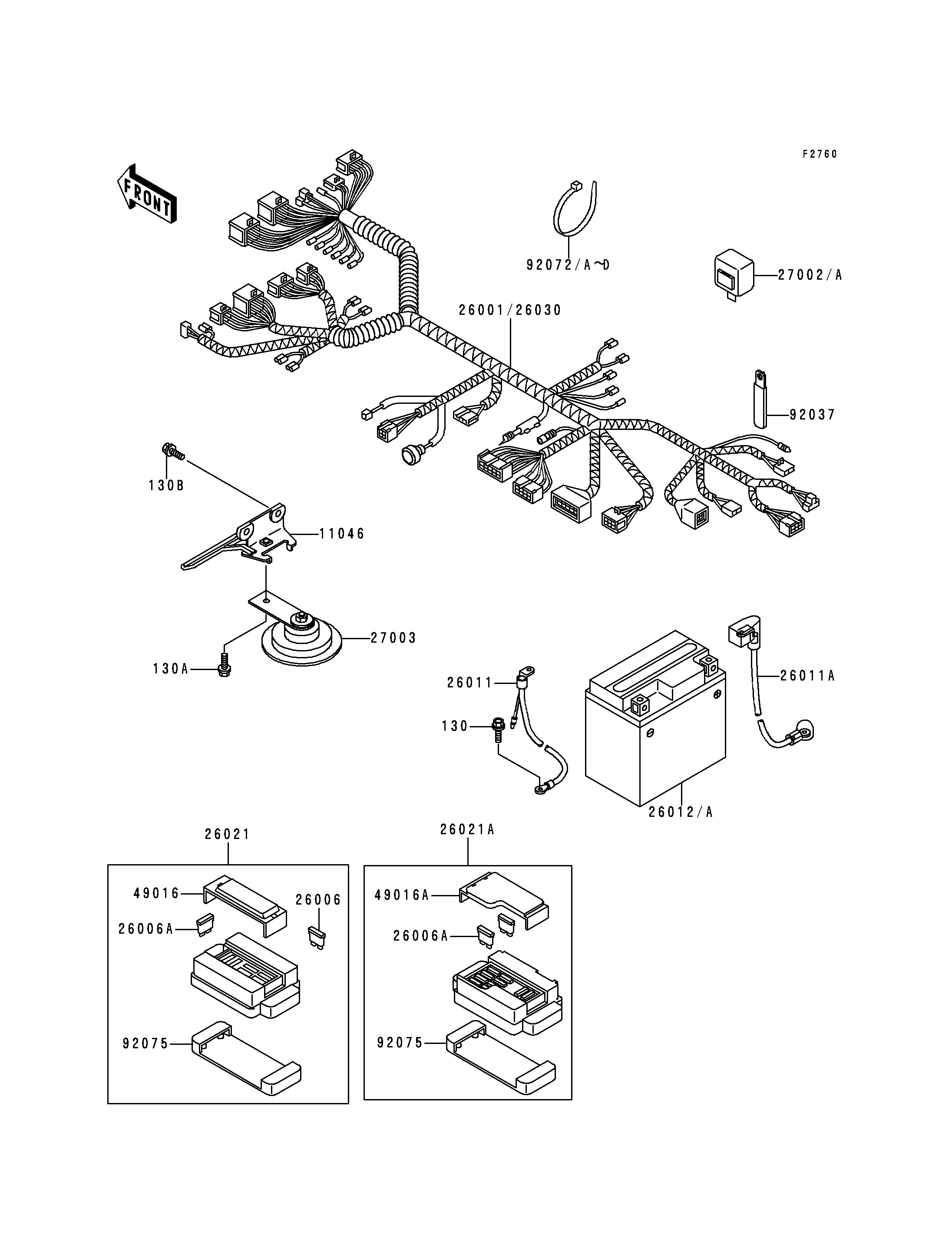

1994 Ninja® 250R - Chassis Electrical Equipment

DOWNLOAD PDF
SELECT A NEW PART
130
130A
130B
11046
26001
26006
26006A
26006A
26011
26011A
26012
26021
27002
27003
49016
92037
92072
92072A
92072B
92072C
92075
92075
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X12 130 130C0612 1
BOLT-FLANGED,6X12 130A 130C0612 1
BOLT-FLANGED,6X14 130B 130G0614 2
BRACKET,HORN&CABLE 11046 11046-1233 1
HARNESS,MAIN 26001 26001-1929 1
FUSE,30A-G 26006 26006-1067 1
FUSE,10A-R 26006A 26006-1068 5
WIRE-LEAD,BATTERY GROUND 26011 26011-1189 1
WIRE-LEAD,BATTERY(+) 26011A 26011-1352 1
BATTERY,12V 8AH,FB9L-A2K(K2) 26012 26012-1205 1
JUNCTION BOX 26021 26021-1077 1
RELAY-ASSY,TURN SIGNAL 27002 27002-1053 1
HORN 27003 27003-1288 1
COVER-SEAL,FUSE 49016 49016-1125 1
CLAMP,WIRING HARNESS 92037 92037-1069 5
BAND,L=123 92072 92072-030 3
BAND,L=149 92072A 92072-031 2
BAND,L=218 92072B 92072-032 1
BAND,L=185 92072C 92072-1195 2
DAMPER,JUNCTION BOX 92075 92075-1688 1
