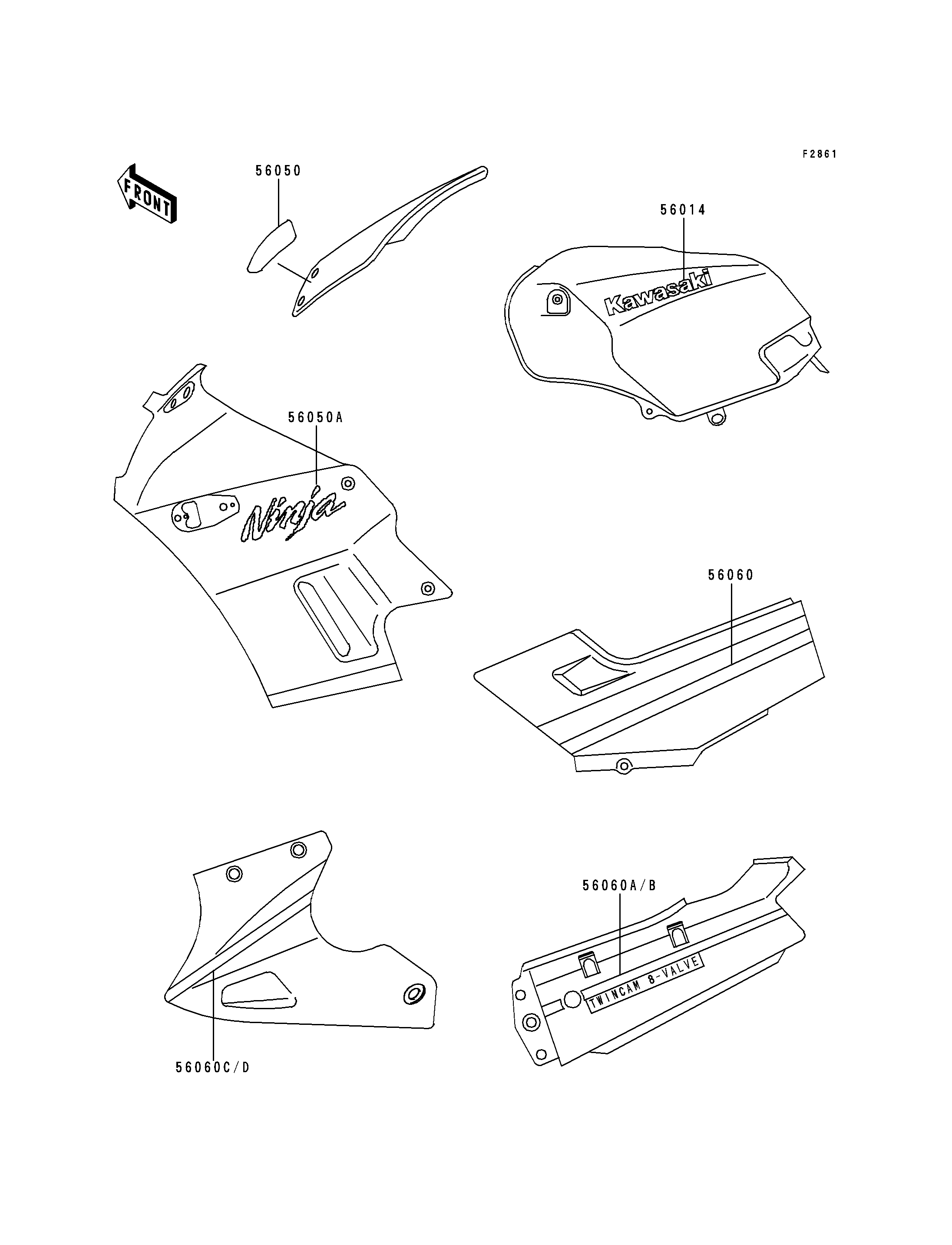

56014
56050
56050A
56060
56060A
56060B
56060C
56060D
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
EMBLEM,FUEL TANK,KAWASAKI 56014 56014-1201 2
MARK,WINDSHIELD 56050 56050-1054 1
MARK,NINJA 56050A 56050-1742 2
PATTERN,SIDE COVER 56060 56060-1003 2
PATTERN,SEAT COVER,LH 56060A 56060-1004 1
PATTERN,SEAT COVER,RH 56060B 56060-1005 1
PATTERN,LWR COWLING,LH 56060C 56060-1006 1
PATTERN,LWR COWLING,RH 56060D 56060-1007 1
