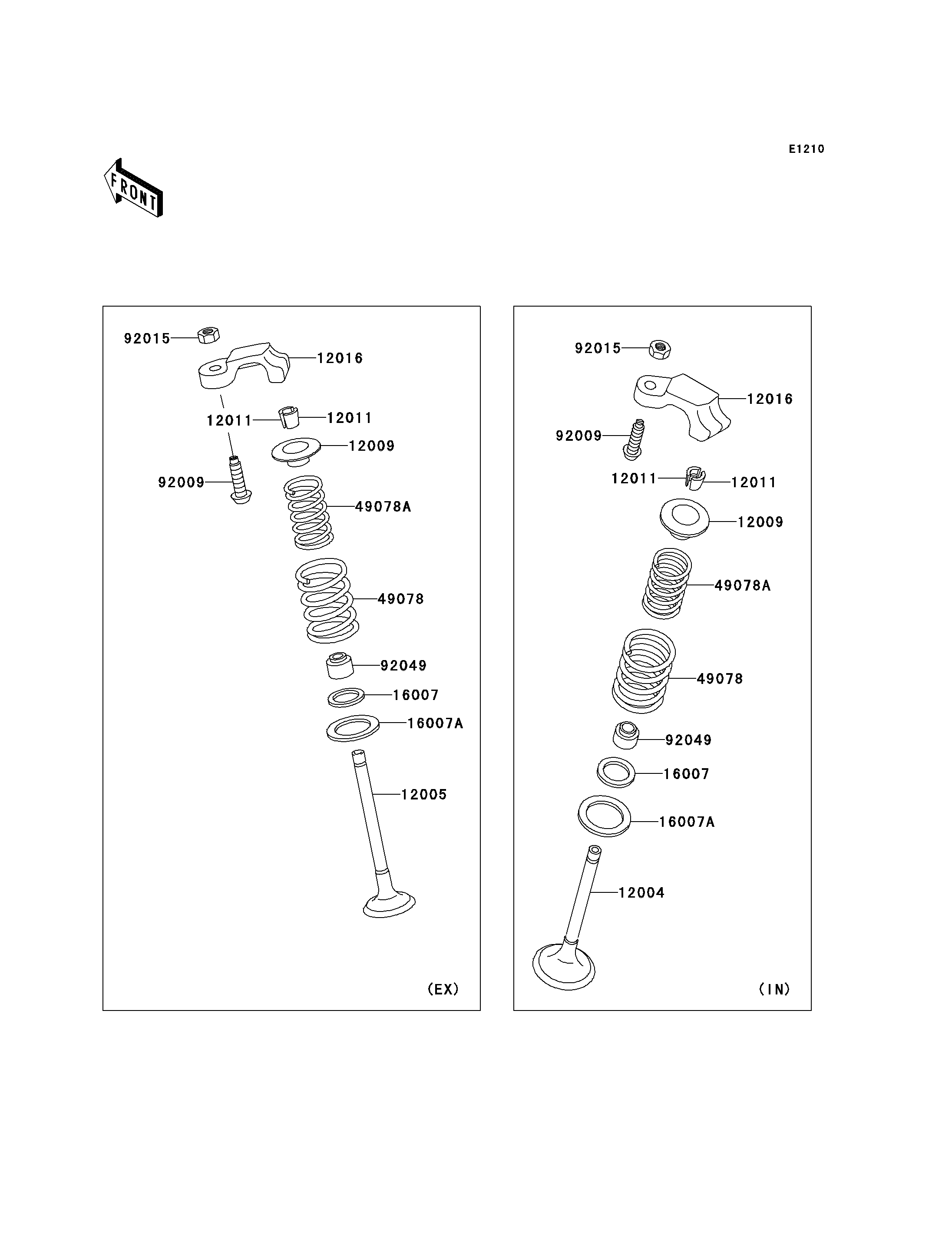

2006 Ninja® 250R - Valve(s)

DOWNLOAD PDF
SELECT A NEW PART
12004
12005
12009
12009
12011
12011
12011
12011
12016
12016
16007
16007
16007A
16007A
49078
49078
49078A
49078A
92009
92009
92015
92015
92049
92049
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
VALVE-INTAKE 12004 12004-1074 4
VALVE-EXHAUST 12005 12005-1091 4
RETAINER-VALVE SPRING 12009 12009-1060 8
COLLET 12011 12011-1051 16
ARM-ROCKER 12016 12016-1067 8
SEAT-SPRING,12.1X16.2X0.5 16007 16007-1177 8
SEAT-SPRING,17.5X23.8X0.5 16007A 16007-1178 8
SPRING-ENGINE VALVE 49078 49078-1078 8
SPRING-ENGINE VALVE 49078A 49078-1079 8
SCREW,6MM 92009 92009-1424 8
NUT,6MM 92015 92015-1586 8
SEAL-OIL,VSB58.558 92049 92049-1218 8
