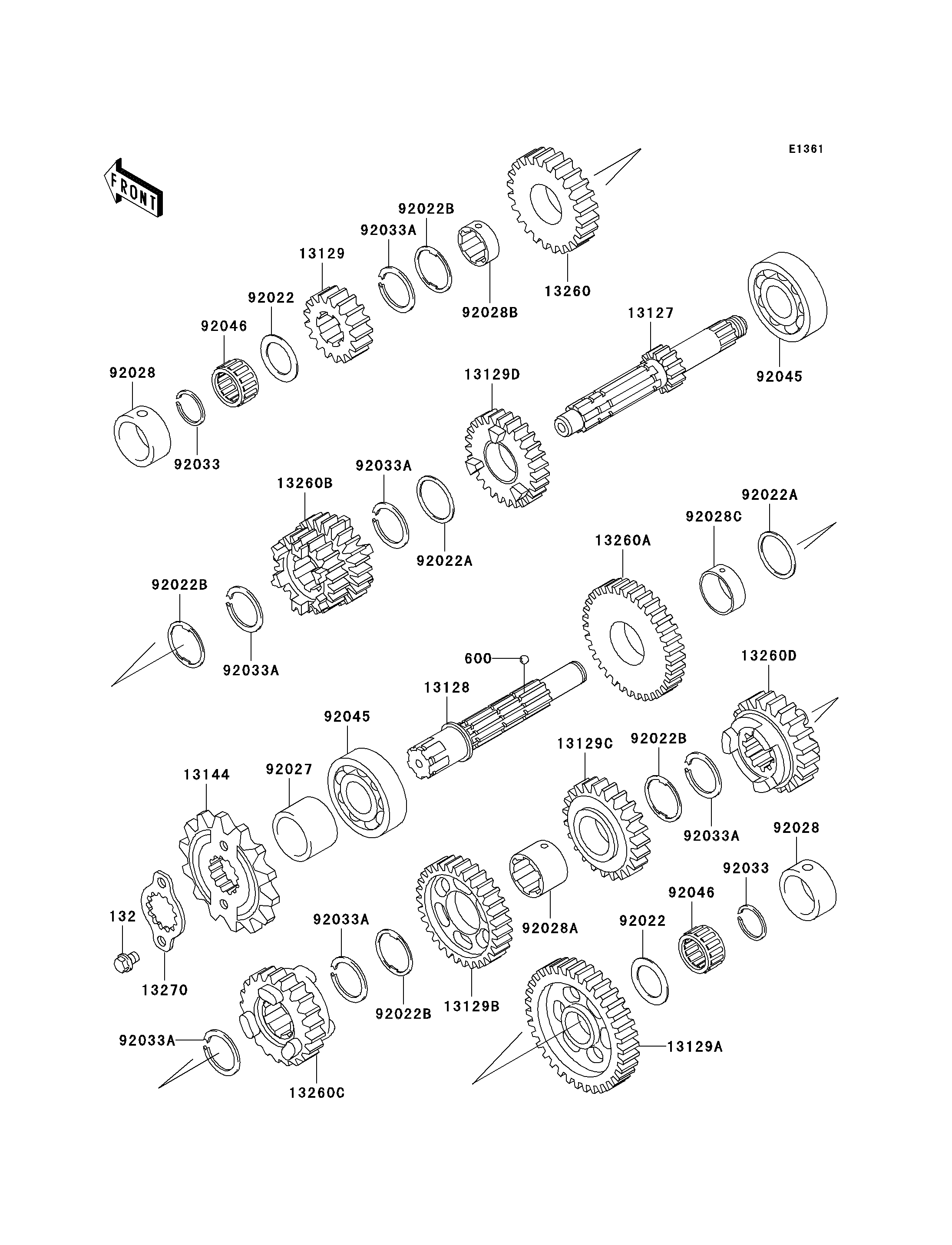

2006 Ninja® 250R - Transmission

DOWNLOAD PDF
SELECT A NEW PART
132
600
13127
13128
13129
13129A
13129B
13129C
13129D
13144
13260
13260A
13260B
13260C
13260D
13270
92022
92022
92022A
92022A
92022B
92022B
92022B
92022B
92027
92028
92028
92028A
92028B
92028C
92033
92033
92033A
92033A
92033A
92033A
92033A
92033A
92045
92045
92046
92046
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL,6X8 132 132G0608 2
BALL-STEEL,5/32" 600 600A0500 3
SHAFT-TRANSMISSION INPUT 13127 13127-1134 1
SHAFT-TRANSMISSION OUTPUT 13128 13128-1131 1
GEAR,INPUT 2ND,19T 13129 13129-1086 1
GEAR,OUTPUT LOW,39T 13129A 13129-1254 1
GEAR,OUTPUT 3RD,31T 13129B 13129-1781 1
GEAR,OUTPUT 4TH,29T 13129C 13129-1782 1
GEAR,INPUT 5TH,27T 13129D 13129-1882 1
SPROCKET-OUTPUT,14T 13144 13144-1126 1
GEAR,INPUT TOP,28T 13260 13260-1033 1
GEAR,OUTPUT 2ND,34T 13260A 13260-1034 1
GEAR,INPUT 3RD&4TH,22T&25T 13260B 13260-1098 1
GEAR,OUTPUT TOP,25T 13260C 13260-1099 1
GEAR,OUTPUT 5TH,27T 13260D 13260-1267 1
PLATE,SPROCKET 13270 13270-1060 1
WASHER,20.5X30X1,STEEL 92022 92022-112 2
WASHER,25.3X30X1 92022A 92022-161 2
WASHER,23X30X1.0 92022B 92022-1935 4
COLLAR,ENGINE SPROCKET 92027 92027-1302 1
BUSHING,25X33X14 92028 92028-1426 2
BUSHING 92028A 92028-1437 1
BUSHING,TOP GEAR 92028B 92028-1563 1
BUSHING,9.4X25X28 92028C 92028-1564 1
RING-SNAP,20MM 92033 92033-015 2
RING-SNAP,24MM 92033A 92033-026 6
BEARING-BALL,#6205NX3 92045 92045-1013 2
BEARING-NEEDLE,20R2513P 92046 92046-044 2
