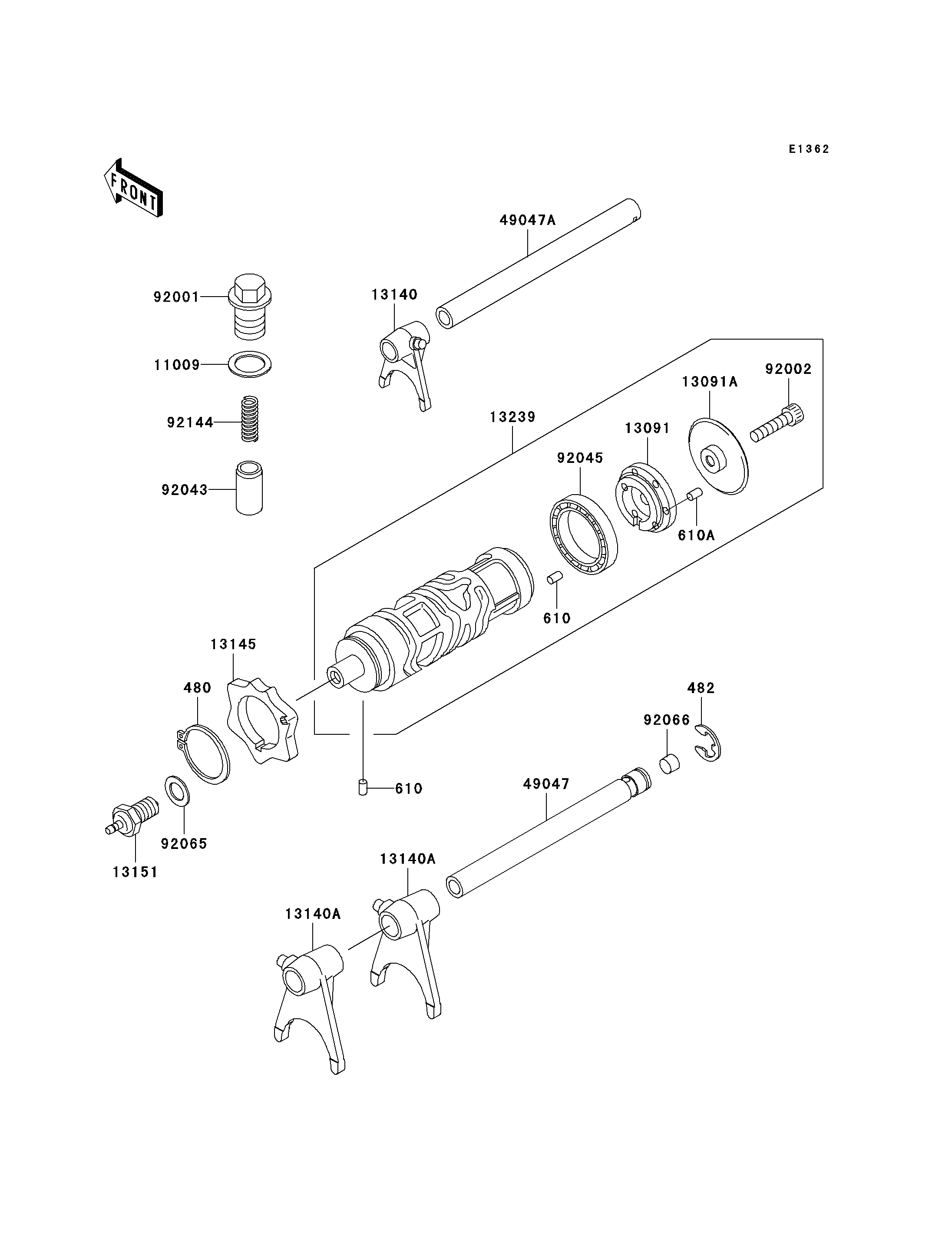

2006 Ninja® 250R - Gear Change Drum/Shift Fork(s)

DOWNLOAD PDF
SELECT A NEW PART
480
482
610
610
610A
11009
13091
13091A
13140
13140A
13140A
13145
13151
13239
49047
49047A
92001
92002
92043
92045
92065
92066
92144
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CIRCLIP-TYPE-C,30MM 480 480J3000 1
CIRCLIP-TYPE-E,10MM 482 482J0100 1
ROLLER,4X6 610 610A0406 2
ROLLER,4X8 610A 610A0408 6
GASKET,15.5X22X1 11009 11009-1008 1
HOLDER 13091 13091-1417 1
HOLDER,CHANGE DRUM 13091A 13091-1464 1
FORK-SHIFT,IN 13140 13140-1148 1
FORK-SHIFT,OUT 13140A 13140-1149 2
CAM-CHANGE DRUM 13145 13145-1058 1
SWITCH-COMP,NEUTRAL 13151 13151-1080 1
DRUM-ASSY-CHANGE 13239 13239-1131 1
ROD-SHIFT,OUT 49047 49047-1067 1
ROD-SHIFT 49047A 49047-1095 1
BOLT,NEUTRAL POSITION 92001 92001-1037 1
BOLT,SOCKET,6X25 92002 92002-1696 1
PIN 92043 92043-076 1
BEARING-BALL,6806 92045 92045-1152 1
GASKET,10.5X16X1 92065 92065-058 1
PLUG 92066 92066-1246 1
SPRING,NEUTRAL POSITION 92144 92144-1580 1
