130
311
13161
13242
13242A
39110
92002
92015
92022
92022A
92027
92081
92144
92153
92161

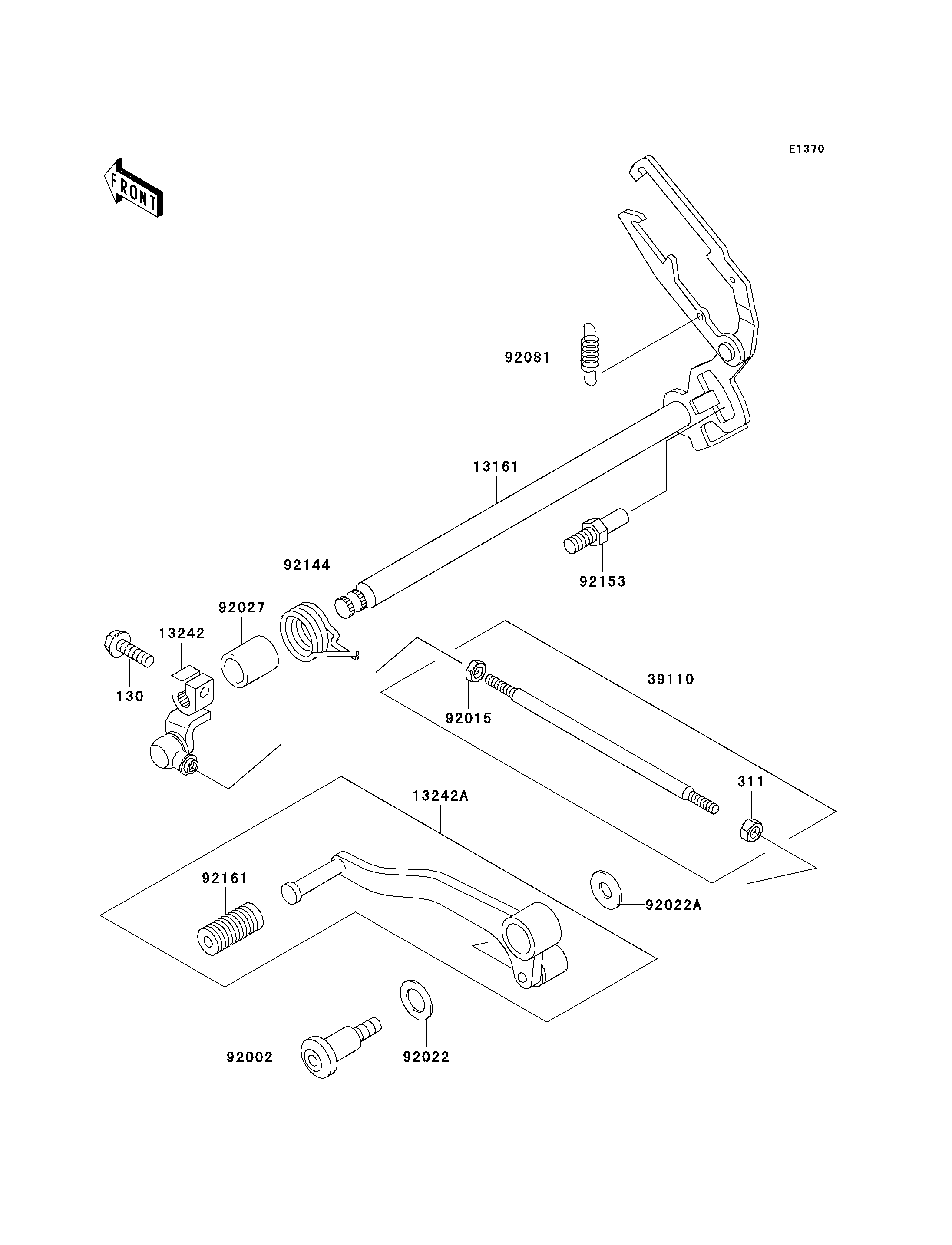

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X20 130 130S0620 1
NUT-HEX 311 311J0600 1
LEVER-COMP-CHANGE SHAFT 13161 13161-1131 1
LEVER-ASSY-CHANGE 13242 13242-1214 1
LEVER-ASSY-CHANGE,PEDAL 13242A 13242-1215 1
ROD-ASSY-TIE 39110 39110-1075 1
BOLT,CHANGE PEDAL 92002 92002-1926 1
NUT,LEFT HANDED,6MM 92015 92015-1178 1
WASHER,12.5X22X1.2 92022 92022-072 1
WASHER,8.5X20X1.6 92022A 92022-1561 1
COLLAR,13X18.3X21.5 92027 92027-1440 1
SPRING,CHANGE LEVER 92081 92081-076 1
SPRING,CHANGE PEDAL RETURN 92144 92144-1074 1
BOLT,8X15.5 92153 92153-0720 1
DAMPER,CHANGE PEDAL 92161 92161-1300 1
