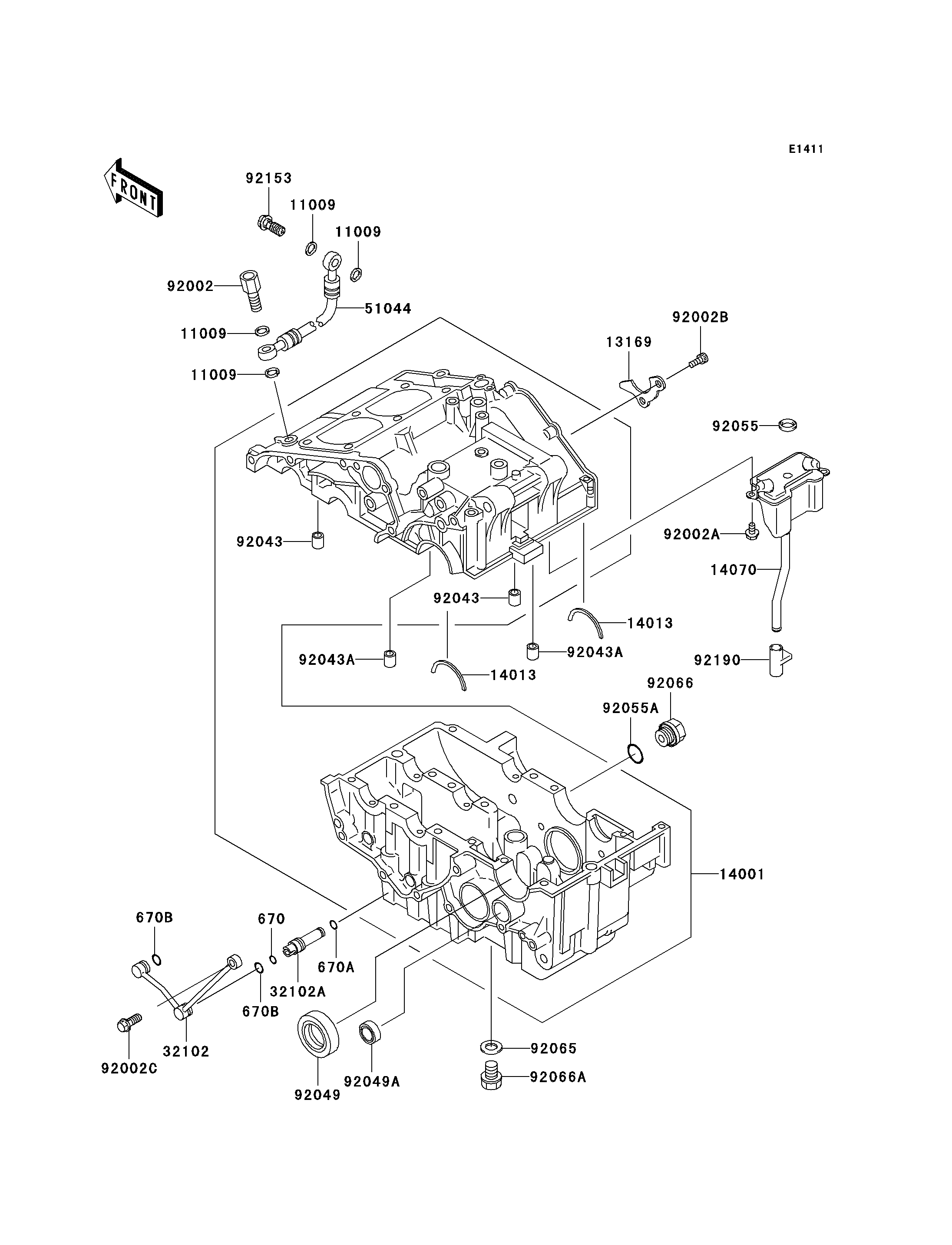

2006 Ninja® 250R - Crankcase

DOWNLOAD PDF
SELECT A NEW PART
670
670A
670B
670B
11009
11009
11009
11009
13169
14001
14013
14013
14070
32102
32102A
51044
92002
92002A
92002B
92002C
92043
92043
92043A
92043A
92049
92049A
92055
92055A
92065
92066
92066A
92153
92190
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
O RING,9MM 670 670D1509 1
O RING 670A 670D2010 1
O RING,12MM 670B 670D2012 2
GASKET,10X14.5X1.5 11009 11009-1105 4
PLATE 13169 13169-1659 1
SET-CRANKCASE 14001 14001-1216 1
RING-POSITION 14013 14013-004 2
BODY-BREATHER 14070 14070-1081 1
PIPE 32102 32102-1017 1
PIPE 32102A 32102-1018 1
TUBE-ASSY 51044 51044-1074 1
BOLT,OIL SWITCH 92002 92002-1427 1
BOLT,6X10 92002A 92002-1449 2
BOLT,SOCKET,6X14 92002B 92002-1592 2
BOLT,BANJO,8X20 92002C 92002-1705 1
PIN,9.2X12X14 92043 92043-1265 2
PIN,3.5X6X16 92043A 92043-1309 2
SEAL-OIL,HTC 32 52 10 92049 92049-1506 1
SEAL-OIL 92049A 92049-1559 1
RING-O,OD=18 92055 92055-048 1
RING-O,20X2 92055A 92055-1146 1
GASKET,12X22X2 92065 92065-097 1
PLUG,MAIN GALLERY,18X9,BLACK 92066 92066-1096 1
PLUG,OIL DRAIN,12X15 92066A 92066-1174 1
BOLT,OIL,L=23 92153 92153-0627 1
TUBE 92190 92190-1489 1
