32043
34011
34024
92001
92001
92002
92015
92015
92015
92075
92081
92145
92150

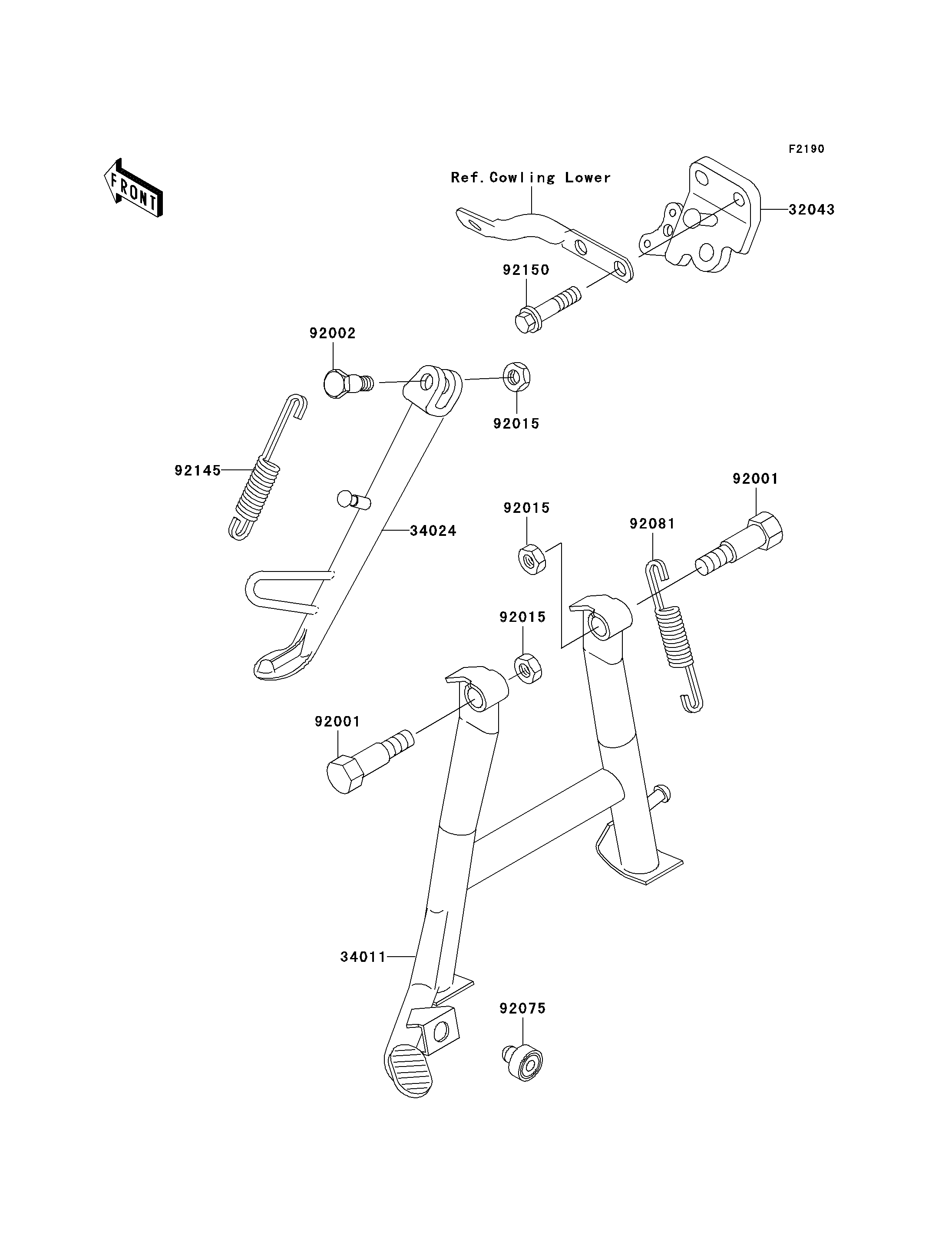

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET-STAND,SIDE 32043 32043-1317 1
STAND-CENTER 34011 34011-1196 1
STAND-SIDE 34024 34024-1230 1
BOLT,CENTER STAND 92001 92001-1214 2
BOLT,SIDE STAND 92002 92002-1813 1
NUT,LOCK,10MM,BLACK 92015 92015-1188 3
DAMPER 92075 92075-015 1
SPRING,CENTER STAND 92081 92081-1835 1
SPRING,SIDE STAND 92145 92145-0084 1
BOLT,FLANGED,10X25 92150 92150-1065 2
