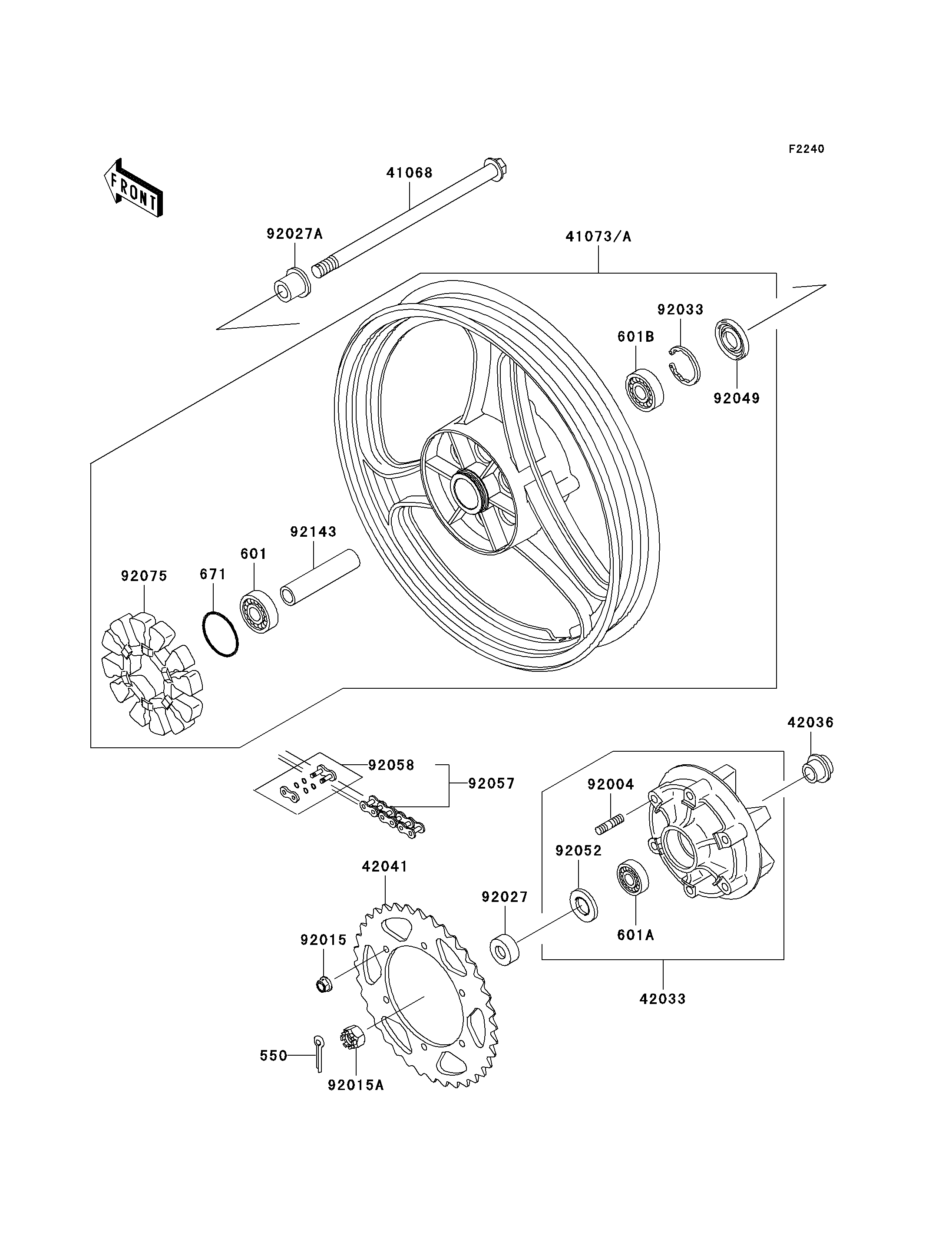

2006 Ninja® 250R - Rear Wheel/Chain

DOWNLOAD PDF
SELECT A NEW PART
550
601
601A
601B
671
41068
41073
42033
42036
42041
92004
92015
92015A
92027
92027A
92033
92049
92052
92057
92058
92075
92143
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PIN-COTTER,4.0X35 550 550D4035 1
BEARING-BALL,#6203UUC3 601 601B6203UU 1
BEARING-BALL,#6205G 601A 601B6205G 1
BEARING-BALL,#6303UUC3 601B 601B6303UU 1
O RING 671 671B2550 1
AXLE,RR 41068 41068-0025 1
WHEEL-ASSY,RR,BLACK 41073 41073-1366-QT 1
COUPLING-ASSY,RR HUB 42033 42033-1217 1
SLEEVE,RR HUB,L=30 42036 42036-1055 1
SPROCKET-HUB,45T 42041 42041-0011 1
STUD,10X19 92004 92004-1275 6
NUT,FLANGED,10MM 92015 92015-1335 6
NUT,CASTLE,16MM 92015A 92015-1947 1
COLLAR,RR HUB 92027 92027-1784 1
COLLAR,RR HUB 92027A 92027-1785 1
RING-SNAP,47MM 92033 92033-1042 1
SEAL-OIL,BJN28475 92049 92049-1056 1
SEAL-OIL,TWC35527 92052 92052-006 1
CHAIN,DRIVE,EK520SR-O2X106L 92057 92057-0019 1
JOINT-CHAIN,DRIVE 92058 92058-1102 1
DAMPER,RR HUB SHOCK 92075 92075-1436 1
COLLAR,17.2X25X97 92143 92143-1119 1
