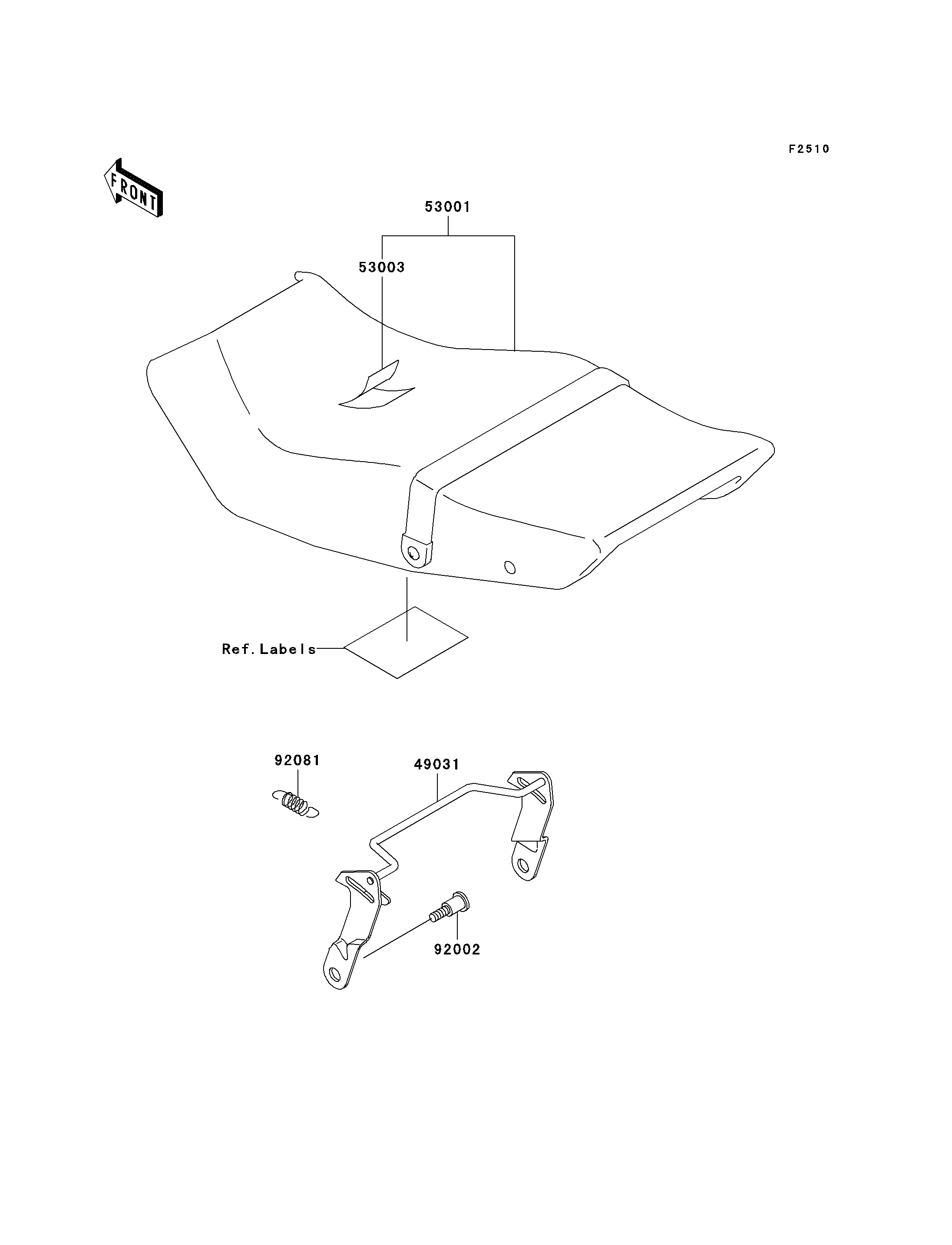

49031
53001
53003
92002
92081
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
LATCH,SEAT 49031 49031-1056 1
SEAT-ASSY,DUAL,BLACK 53001 53001-1547-MA 1
LEATHER,SEAT,BLACK 53003 53003-1192-MA 1
BOLT,SOCKET,6MM 92002 92002-1616 2
SPRING,HOOK RETURN 92081 92081-1580 2
