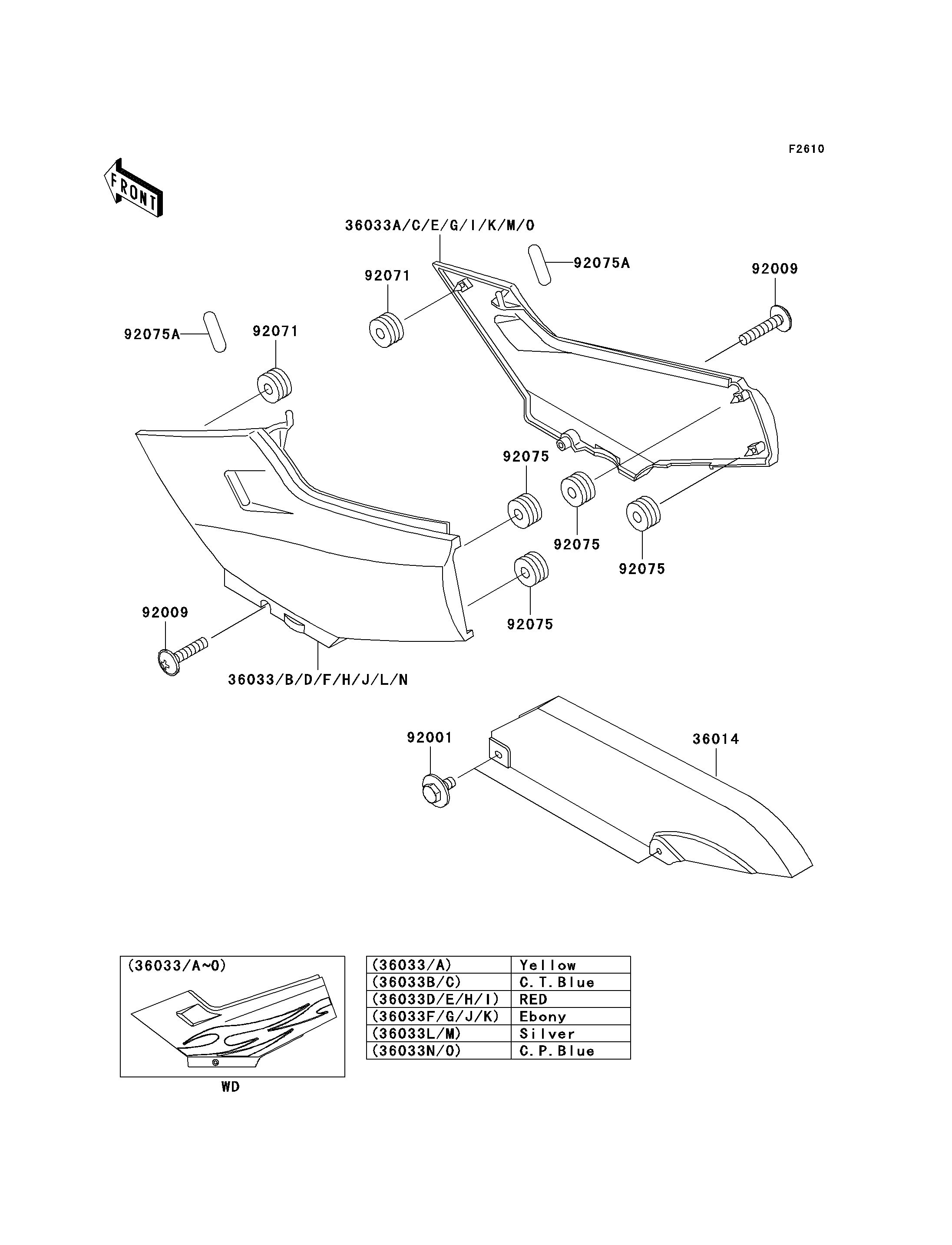

2006 Ninja® 250R - Side Covers/Chain Cover

DOWNLOAD PDF
SELECT A NEW PART
36014
36014
36033
36033
36033A
36033A
36033B
36033B
36033C
36033C
36033D
36033D
36033E
36033E
36033F
36033F
36033G
36033G
92001
92001
92009
92009
92009
92009
92071
92071
92071
92071
92075
92075
92075
92075
92075
92075
92075
92075
92075A
92075A
92075A
92075A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CASE-CHAIN 36014 36014-1147 1
COVER-SIDE,LH,B.YELLOW 36033 36033-5083-187 1
COVER-SIDE,RH,B.YELLOW 36033A 36033-5084-187 1
COVER-SIDE,LH,C.T.BLUE 36033B 36033-5085-620 1
COVER-SIDE,RH,C.T.BLUE 36033C 36033-5086-620 1
COVER-SIDE,LH,C.P.RED 36033D 36033-5087-G2 1
COVER-SIDE,RH,C.P.RED 36033E 36033-5088-G2 1
COVER-SIDE,LH,EBONY 36033F 36033-5089-IG 1
COVER-SIDE,RH,EBONY 36033G 36033-5090-IG 1
BOLT,6X14,BLACK 92001 92001-1847 2
SCREW,6X28,BLACK 92009 92009-1400 2
GROMMET 92071 92071-1043 2
DAMPER 92075 92075-1067 4
DAMPER,SIDE COVER 92075A 92075-1964 2
