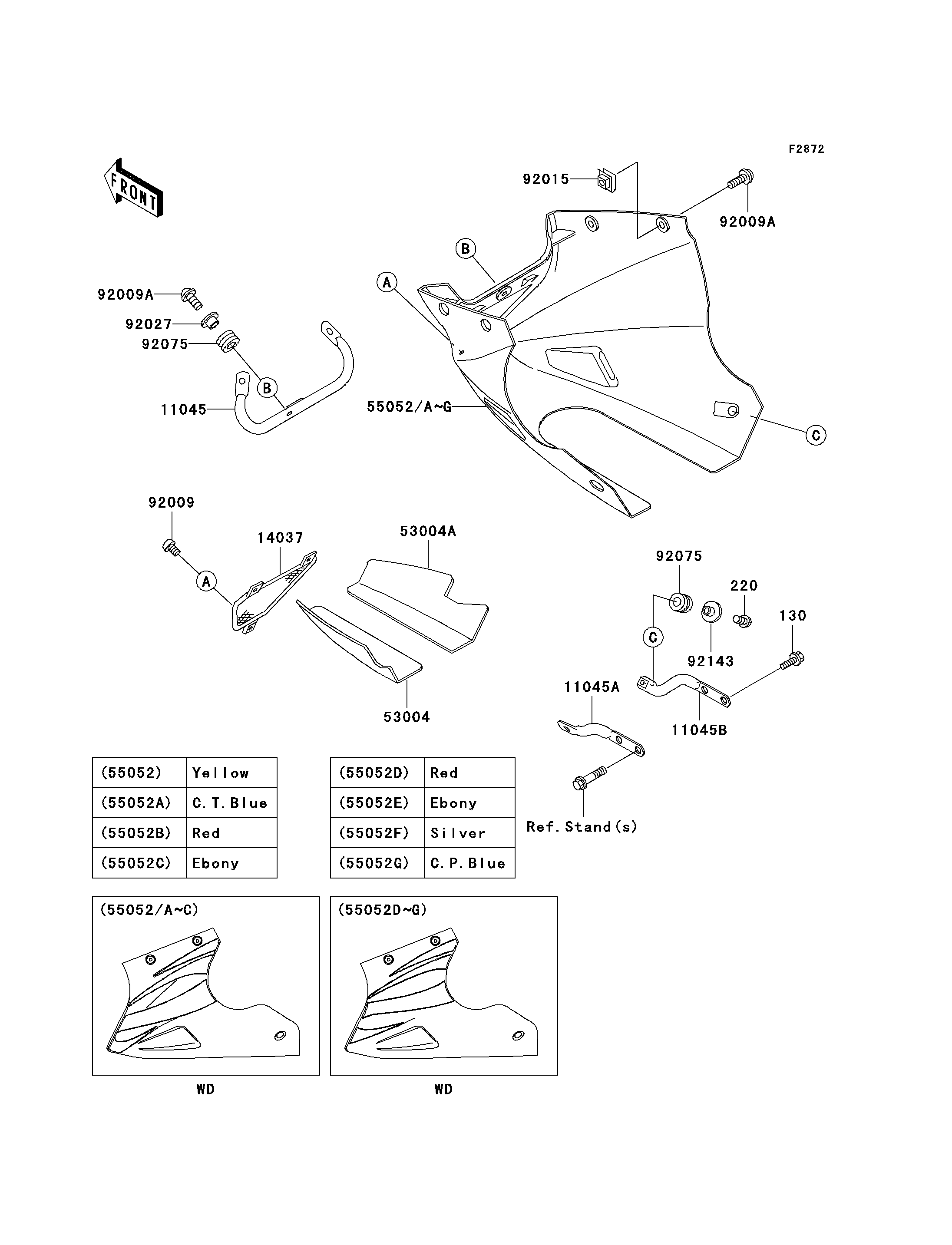

2006 Ninja® 250R - Cowling Lowers

DOWNLOAD PDF
SELECT A NEW PART
11045
11045
11045A
11045A
11045B
11045B
14037
14037
53004
53004
53004A
53004A
55052
55052
55052A
55052A
55052B
55052B
55052C
55052C
130
130
220
220
92009
92009
92009A
92009A
92009A
92009A
92015
92015
92027
92027
92075
92075
92075
92075
92143
92143
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,LOWER COWLING,FR 11045 11045-1861 1
BRACKET,LOWER COWLING,RR,LH 11045A 11045-1864 1
BRACKET,LOWER COWLING,RR,RH 11045B 11045-1865 1
SCREEN 14037 14037-1094 1
MAT,LOWER COWLING,LH 53004 53004-1053 1
MAT,LOWER COWLING,RH 53004A 53004-1054 1
COWLING-ASSY,LWR,B.YELLOW 55052 55052-5280-187 1
COWLING-ASSY,LWR,C.T.BLUE 55052A 55052-5282-620 1
COWLING-ASSY,LWR,C.P.RED 55052B 55052-5284-G2 1
COWLING-ASSY,LWR,EBONY 55052C 55052-5286-IG 1
BOLT-FLANGED,6X14 130 130J0614 1
SCREW-PAN-CROSS,6X20 220 220F0620 2
SCREW,5X16,BLACK 92009 92009-1654 1
SCREW,6X18 92009A 92009-1663 5
NUT,6MM 92015 92015-1602 4
COLLAR,L=9.1,BLACK 92027 92027-1935 1
DAMPER 92075 92075-1634 3
COLLAR,BLACK 92143 92143-1226 2
