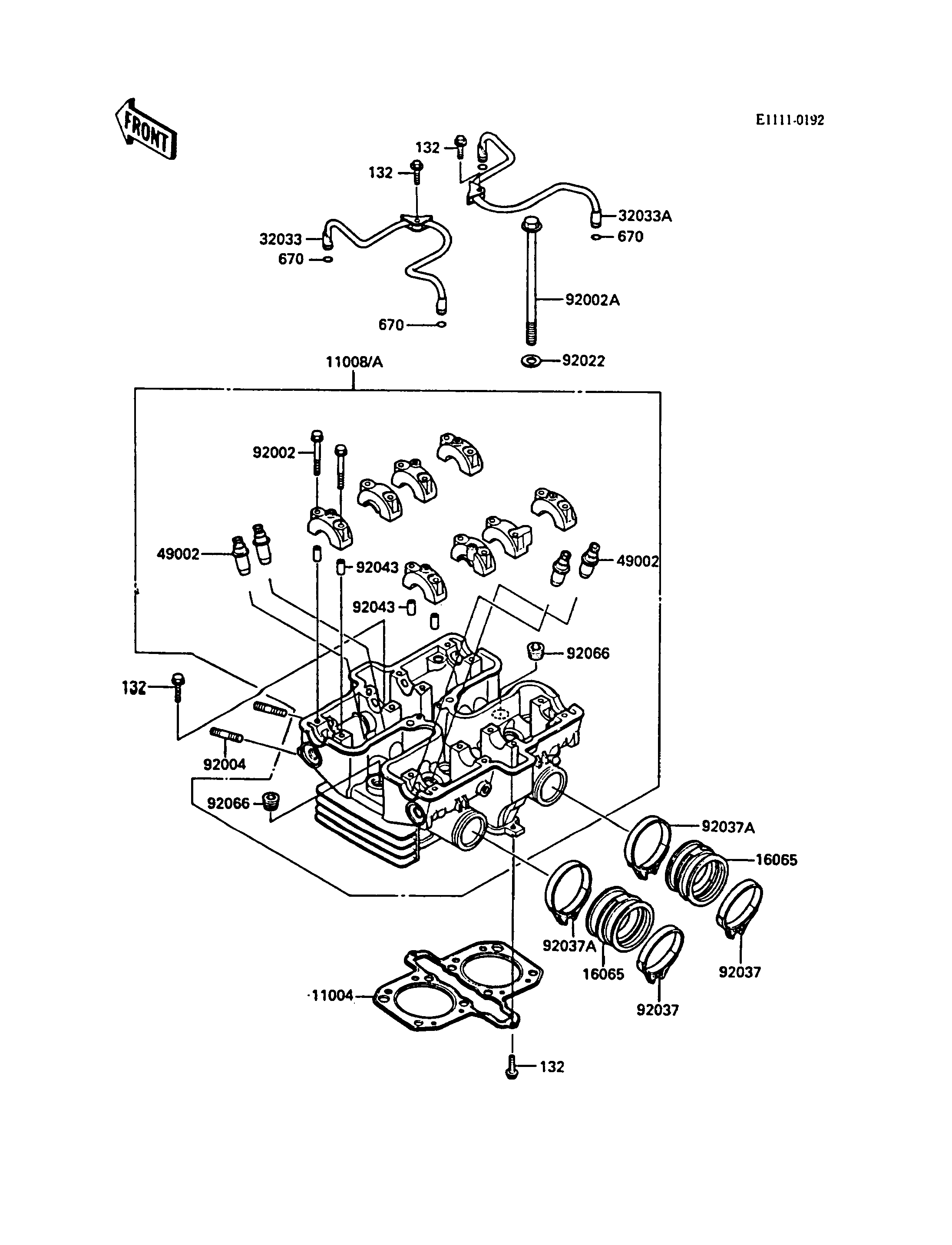

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET-HEAD 11004 11004-1159 1
HEAD-COMP-CYLINDER 11008 11008-1145 1 CAUS
HEAD-COMP-CYLINDER 11008A 11008-1154 1 CN
HOLDER-CARBURETOR 16065 16065-1130 2
PIPE,OIL,LH 32033 32033-1527 1
PIPE,OIL,RH 32033A 32033-1528 1
GUIDE-VALVE 49002 49002-1052 8
BOLT,6X46 92002 92001-1872 16
BOLT,10X164 92002A 92002-1943 8
STUD,8X25 92004 92004-1008 4
WASHER,10.5X20X1.6 92022 92022-1591 8
CLAMP,ID=53,BLACK 92037 92037-1304 2
CLAMP 92037A 92037-1523 2
PIN,6.2X8X14 92043 92043-1263 16
PLUG 92066 92066-1253 2
BOLT-FLANGED-SMALL 132 132G0620 4
O RING,7MM 670 670D1507 4
