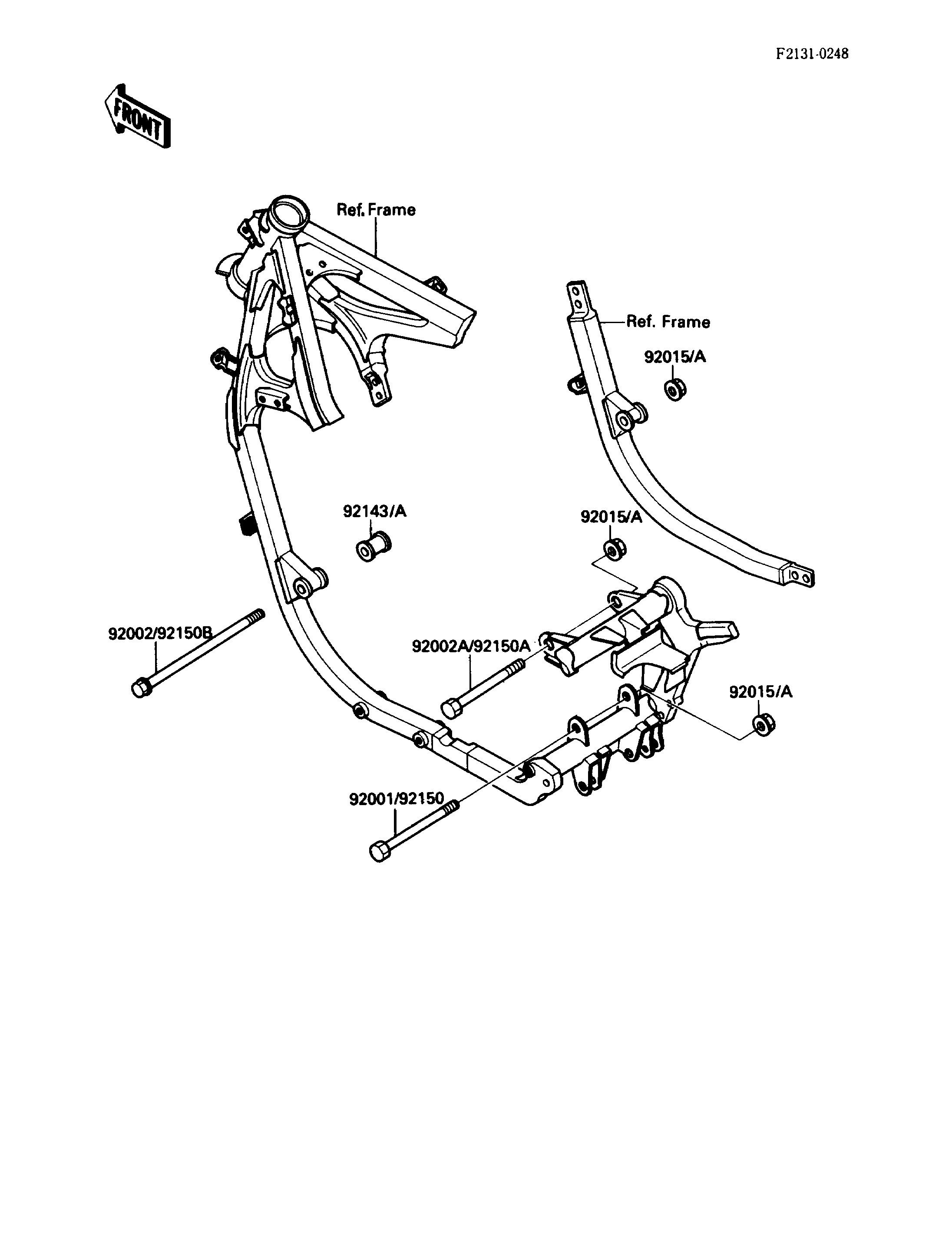

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT,10X179 92001 92001-1109 1
BOLT,FLANGED,10X295 92002 92002-1891 1
BOLT,10X165 92002A 92002-1920 1
NUT,FLANGED,10MM 92015A 92015-1428 3
COLLAR,L=34 92143 92143-1073 1
