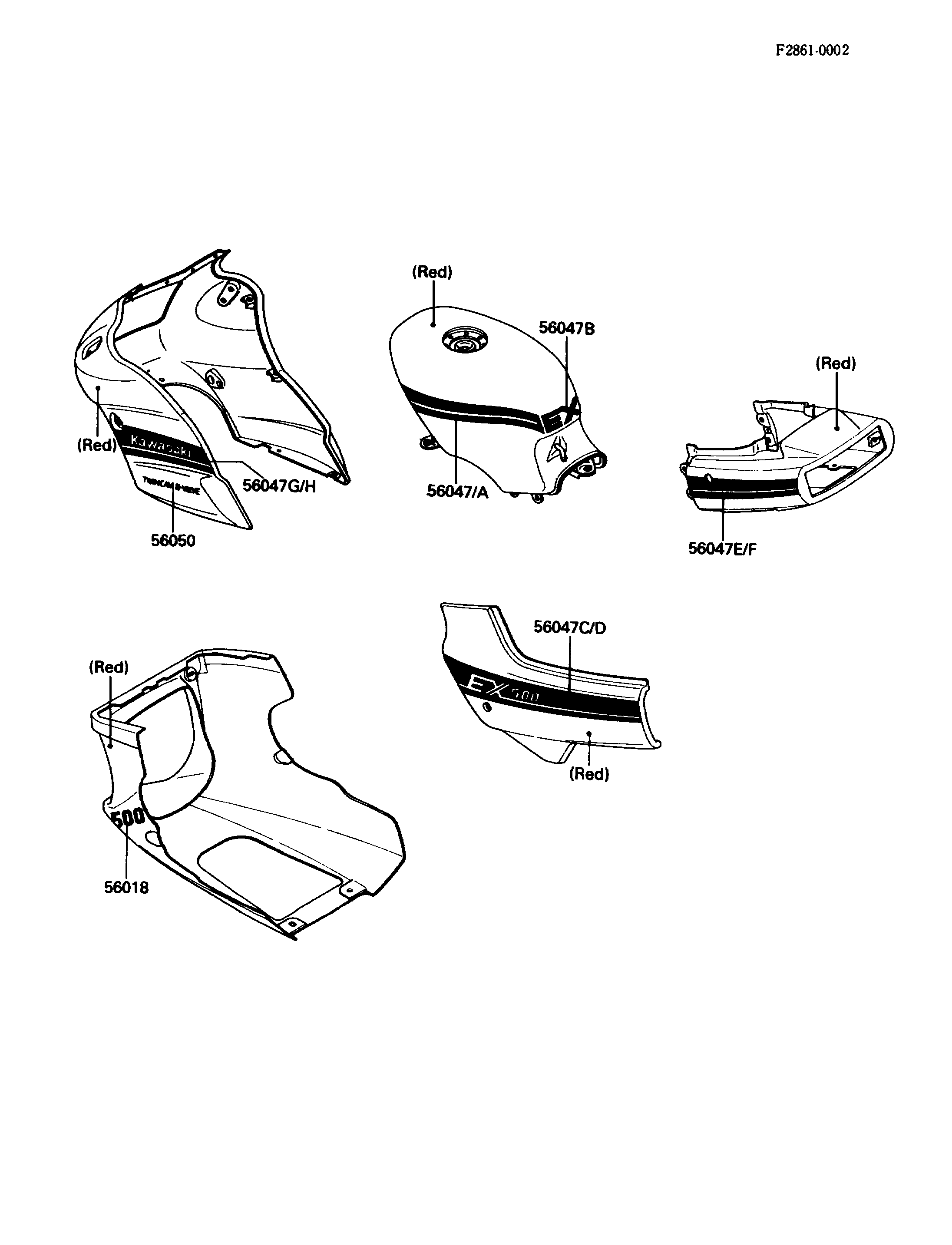

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
MARK,500 56018 56018-1974 2 (OPTION)
PATTERN,FUEL TANK,LH 56047 56047-1733 1
PATTERN,FUEL TANK,RH 56047A 56047-1734 1
PATTERN,FUEL TANK,RR,EX 56047B 56047-1735 1
PATTERN,SIDE COVER,LH 56047C 56047-1736 1
PATTERN,SIDE COVER,RH 56047D 56047-1737 1
PATTERN,SEAT COVER,LH 56047E 56047-1738 1
PATTERN,SEAT COVER,RH 56047F 56047-1739 1
PATTERN,UPP COWLING,LH 56047G 56047-1740 1
PATTERN,UPP COWLING,RH 56047H 56047-1741 1
MARK,TWIN CAM 8-VALVE 56050 56050-1050 2
