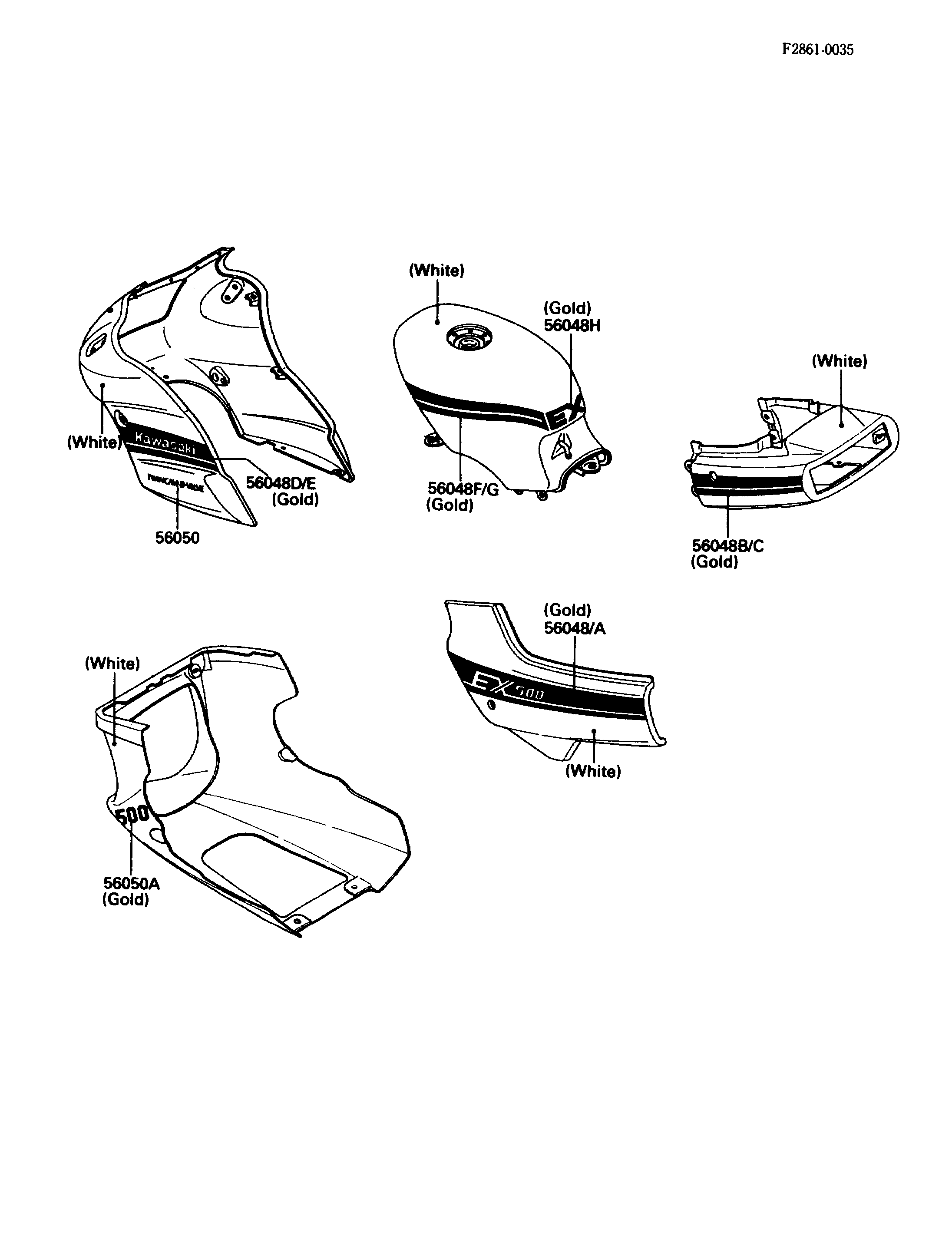

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PATTERN,SIDE COVER,LH 56048 56048-1421 1 CAUS
PATTERN,SIDE COVER,RH 56048A 56048-1422 1 CAUS
PATTERN,SEAT COVER,LH 56048B 56048-1423 1 CAUS
PATTERN,SEAT COVER,RH 56048C 56048-1424 1 CAUS
PATTERN,UPP COWLING,LH 56048D 56048-1425 1 CAUS
PATTERN,UPP COWLING,RH 56048E 56048-1426 1 CAUS
PATTERN,FUEL TANK,LH 56048F 56048-1476 1 CAUS
PATTERN,FUEL TANK,RH 56048G 56048-1477 1 CAUS
PATTERN,FUEL TANK,RR,EX 56048H 56048-1478 1 CAUS
MARK,TWIN CAM 8-VALVE 56050 56050-1167 1 CAUS
MARK,500 56050A 56050-1168 2 CAUS
