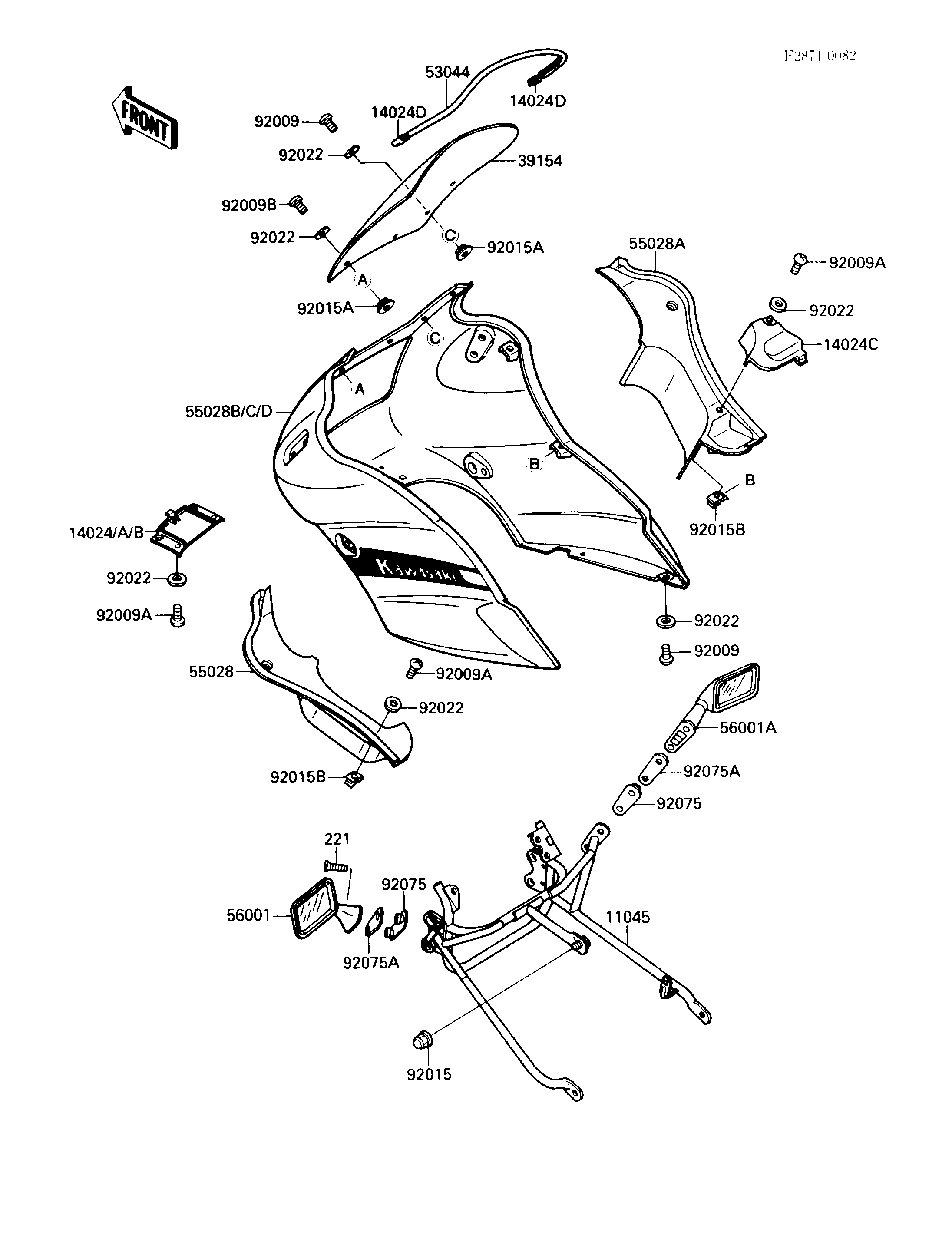

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET,COWLING | 11045 | 11045-1816 | 1 | ||
| COVER,UPPER COWLING,LWR,WHITE | 14024 | 14024-1385-R1 | 1 | ||
| COVER,UPPER COWLING,LWR,EBONY | 14024A | 14024-1385-6C | 1 | CAUS | |
| COVER,UPPER COWLING,LWR,F.RED | 14024B | 14024-1385-6L | 1 | CN | |
| COVER,INNER COWLING,RH | 14024C | 14024-1392 | 1 | ||
| COVER,TRIM END | 14024D | 14025-1756 | 2 | ||
| WINDSHIELD | 39154 | 39154-1067 | 1 | ||
| TRIM,WINDSHIELD | 53044 | 53044-1120 | 1 | ||
| COWLING,INNER,LH | 55028 | 55028-1145 | 1 | ||
| COWLING,INNER,RH | 55028A | 55028-1146 | 1 | ||
| COWLING,UPP,F.RED | 55028B | 55028-5309-B1 | 1 | CN | |
| COWLING,UPP,P.A.WHITE | 55028C | 55028-5310-R1 | 1 | ||
| COWLING,UPP,EBONY | 55028D | 55028-5311-H8 | 1 | CAUS | |
| MIRROR-ASSY,LH | 56001 | 56001-1250 | 1 | ||
| MIRROR-ASSY,RH | 56001A | 56001-1251 | 1 | ||
| SCREW,5X16,BLACK | 92009 | 92009-1301 | 6 | ||
| SCREW,TAPPING,5X15 | 92009A | 92009-1479 | 6 | ||
| SCREW,5X12 | 92009B | 92009-1490 | 2 | ||
| NUT,CAP,8MM,BLACK | 92015 | 92015-1174 | 1 | ||
| NUT,5MM,COWLING | 92015A | 92015-1343 | 6 | ||
| NUT,5MM | 92015B | 92015-1638 | 4 | ||
| WASHER,NYLON,5.3X11.5X1.5 | 92022 | 92022-1521 | 14 | ||
| DAMPER,MIRROR | 92075 | 92075-1492 | 2 | ||
| DAMPER,MIRROR | 92075A | 92075-1745 | 2 | ||
| SCREW-CSK-CROS,6X30 | 221 | 221C0630 | 4 |
