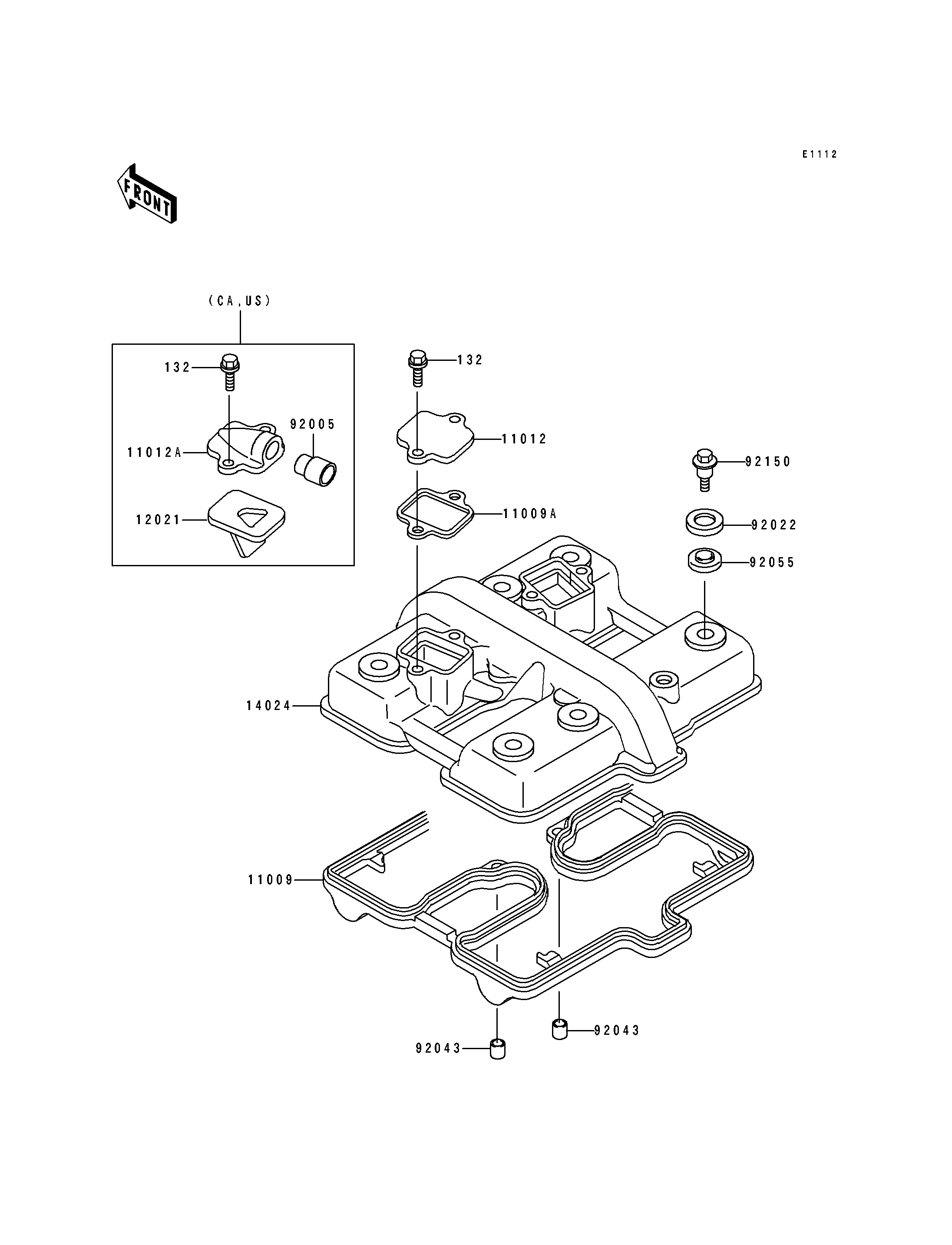

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,CYLINDER HEAD COVER 11009 11009-1483 1
GASKET,REED VALVE 11009A 11009-1879 2 CN
CAP,CYLINDER HEAD COVER 11012 11012-1212 2 CN
CAP,REED VALVE 11012A 11012-1310 2 CAUS
VALVE-ASSY-REED 12021 12021-1026 2 CAUS
COVER,CYLINDER HEAD 14024 14024-1397 1
FITTING,REED VALVE 92005 92005-1006 2 CAUS
WASHER,HEAD COVER BOLT 92022 92022-1487 6
PIN,DOWEL,8X10 92043 92043-1302 2
RING-O,HEAD COVER BOLT 92055 92055-1225 6
BOLT,HEAD COVER 92150 92150-1447 6
BOLT-FLANGED-SMALL 132 132J0616 4
