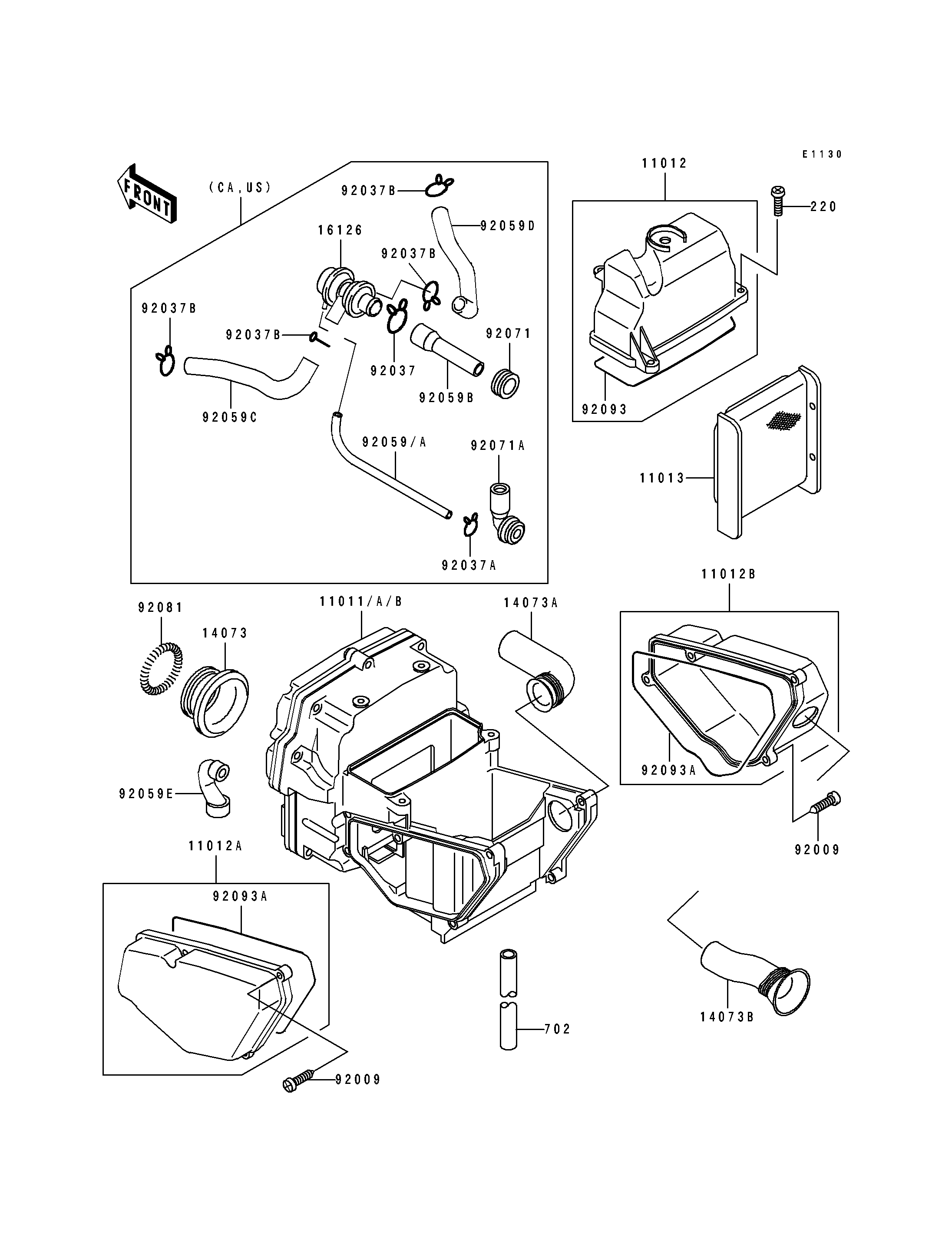

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CASE-AIR FILTER | 11011 | 11011-1268 | 1 | US | |
| CASE-AIR FILTER | 11011A | 11011-1269 | 1 | CA | |
| CASE-AIR FILTER | 11011B | 11011-1270 | 1 | CN | |
| CAP,AIR FILTER CASE,UPP | 11012 | 11012-1571 | 1 | ||
| CAP,AIR FILTER,LH | 11012A | 11012-1608 | 1 | ||
| CAP,AIR FILTER,RH | 11012B | 11012-1609 | 1 | ||
| ELEMENT-AIR FILTER | 11013 | 11013-1155 | 1 | ||
| DUCT,CARBURATOR | 14073 | 14073-1292 | 2 | ||
| DUCT,INTAKE | 14073A | 14073-1293 | 1 | ||
| DUCT | 14073B | 14073-1295 | 1 | ||
| VALVE,AIR SWITCH | 16126 | 16126-1005 | 1 | CAUS | |
| SCREW,TAPPING,5X30 | 92009 | 92009-1488 | 12 | ||
| CLAMP,TUBE | 92037 | 92037-1076 | 1 | CAUS | |
| CLAMP | 92037A | 92037-1712 | 1 | CAUS | |
| CLAMP,TUBE | 92037B | 92037-213 | 4 | CAUS | |
| TUBE,4X9X290 | 92059 | 92059-1043 | 1 | US | |
| TUBE,4X9X110 | 92059A | 92059-1131 | 1 | CA | |
| TUBE,AIR FILTER-ACV | 92059B | 92059-1770 | 1 | CAUS | |
| TUBE,AIR SWITCH,LH | 92059C | 92059-1771 | 1 | CAUS | |
| TUBE,AIR SWITCH,RH | 92059D | 92059-1772 | 1 | CAUS | |
| TUBE,BREATHER | 92059E | 92059-1773 | 1 | ||
| GROMMET,AIR FILTER | 92071 | 92071-1028 | 1 | CAUS | |
| GROMMET,AIR FILTER | 92071A | 92071-1114 | 1 | CA | |
| SPRING,COIL,BLACK | 92081 | 92081-1457 | 2 | ||
| SEAL,AIR FILTER CAP | 92093 | 92093-1233 | 1 | ||
| SEAL,AIR FILTER | 92093A | 92093-1234 | 2 | ||
| SCREW-PAN-CROS,6X16 | 220 | 220B0616 | 4 | ||
| TUBE-RUBBER,5X350 | 702 | 702A05350 | 1 |
