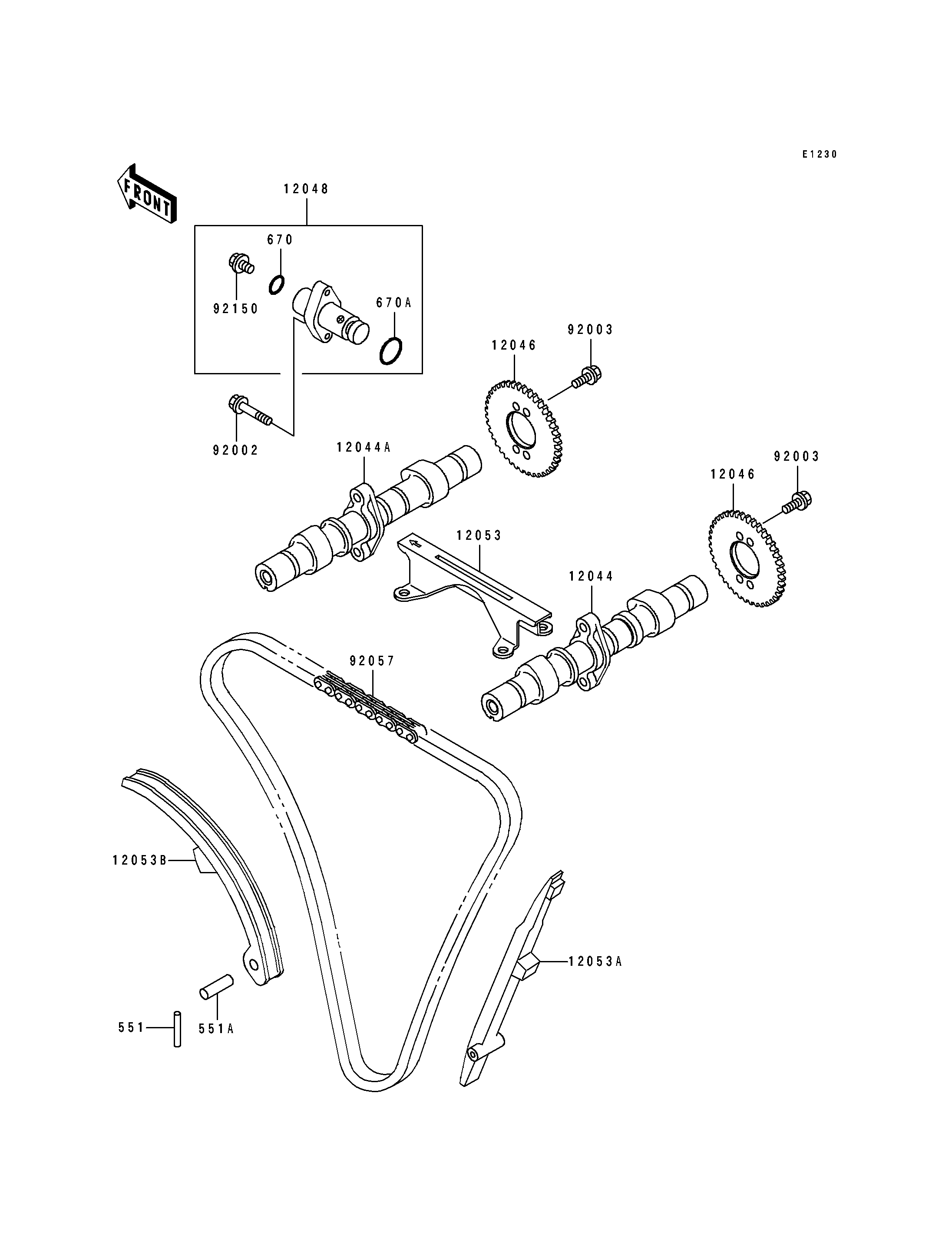

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAMSHAFT-VALVE,INTAKE 12044 12044-1198 1
CAMSHAFT-VALVE,EXHAUST 12044A 12044-1199 1
SPROCKET,CAMSHAFT,46T 12046 12046-1075 2
TENSIONER-ASSY,CAM CHAIN 12048 12048-1067 1
GUIDE-CHAIN,UPP 12053 12053-1145 1
GUIDE-CHAIN,RR 12053A 12053-1150 1
GUIDE-CHAIN,FR 12053B 12053-1151 1
BOLT,6X25 92002 92002-1086 2
BOLT,FLANGED,6X11 92003 92003-208 4
CHAIN,CAM,79RH2015-148L 92057 92057-1188 1
BOLT,TENSIONER 92150 92150-1380 1
PIN-DOWEL 551 551A0432 1
PIN-DOWEL,8X40 551A 551A0840 1
O RING 670 670D2010 1
O RING,21MM 670A 670D2021 1
