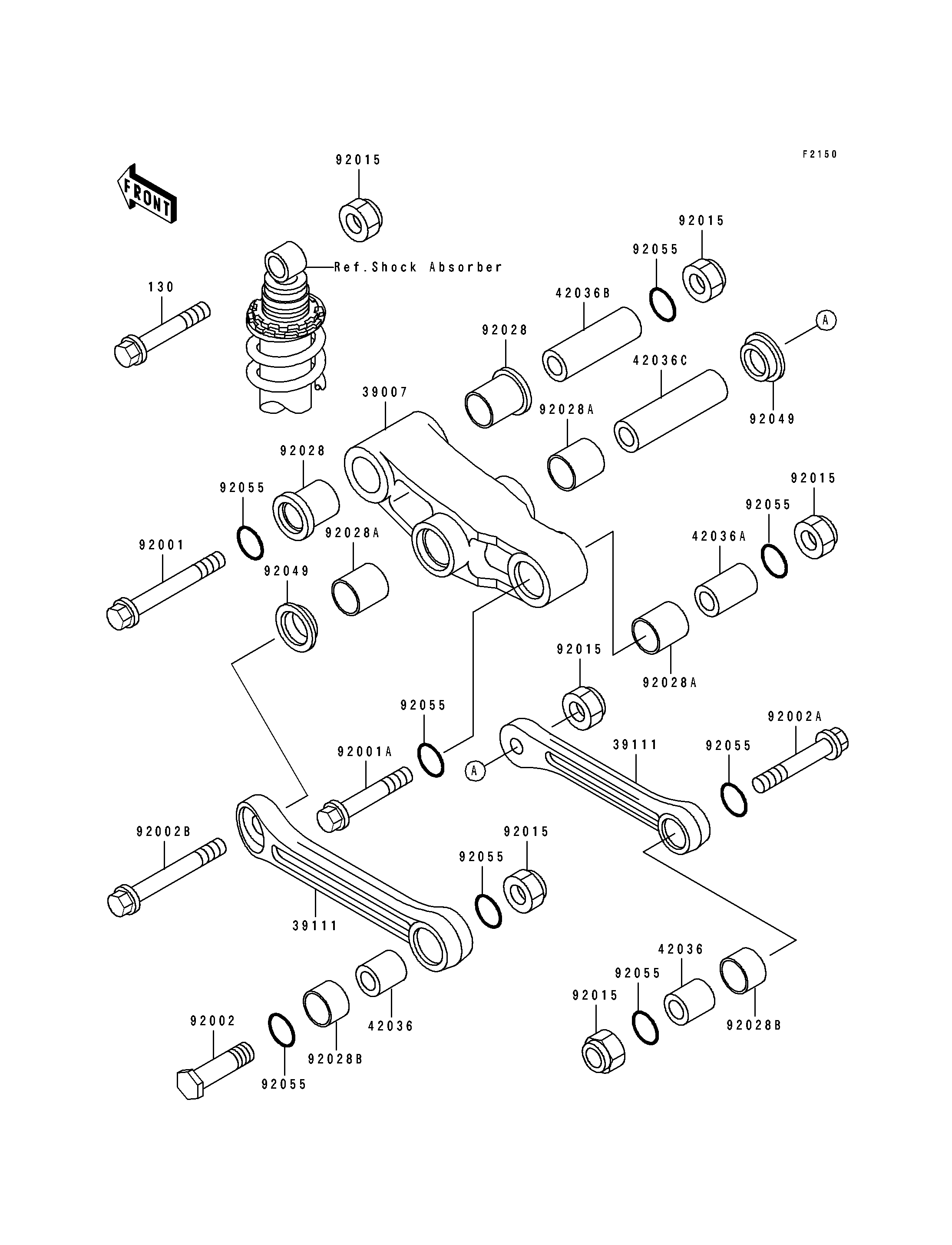

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
ARM-SUSP,UNI TRAK 39007 39007-1120 1
ROD-TIE,UNI TRAK 39111 39111-1072 2
SLEEVE,12.1X20X22 42036 42036-1076 2
SLEEVE,ARM,RR 42036A 42036-1077 1
SLEEVE,ARM,FR 42036B 42036-1078 1
SLEEVE,12.1X20X74 42036C 42036-1102 1
BOLT,12X90 92001 92001-1937 1
BOLT,12X55 92001A 92001-1938 1
BOLT,12X45 92002 92002-1065 1
BOLT,FLANGED,12X60 92002A 92002-1885 1
BOLT,FLANGED,12X100 92002B 92002-1886 1
NUT,12MM 92015 92015-1375 6
BUSHING 92028 92028-1597 2
BUSHING 92028A 92028-1598 3
BUSHING 92028B 92028-1599 2
SEAL-OIL,ARM,CNT 92049 92049-1109 2
RING-O,19.8X2.2 92055 92055-1215 8
BOLT-FLANGED 130 130G1250 1
