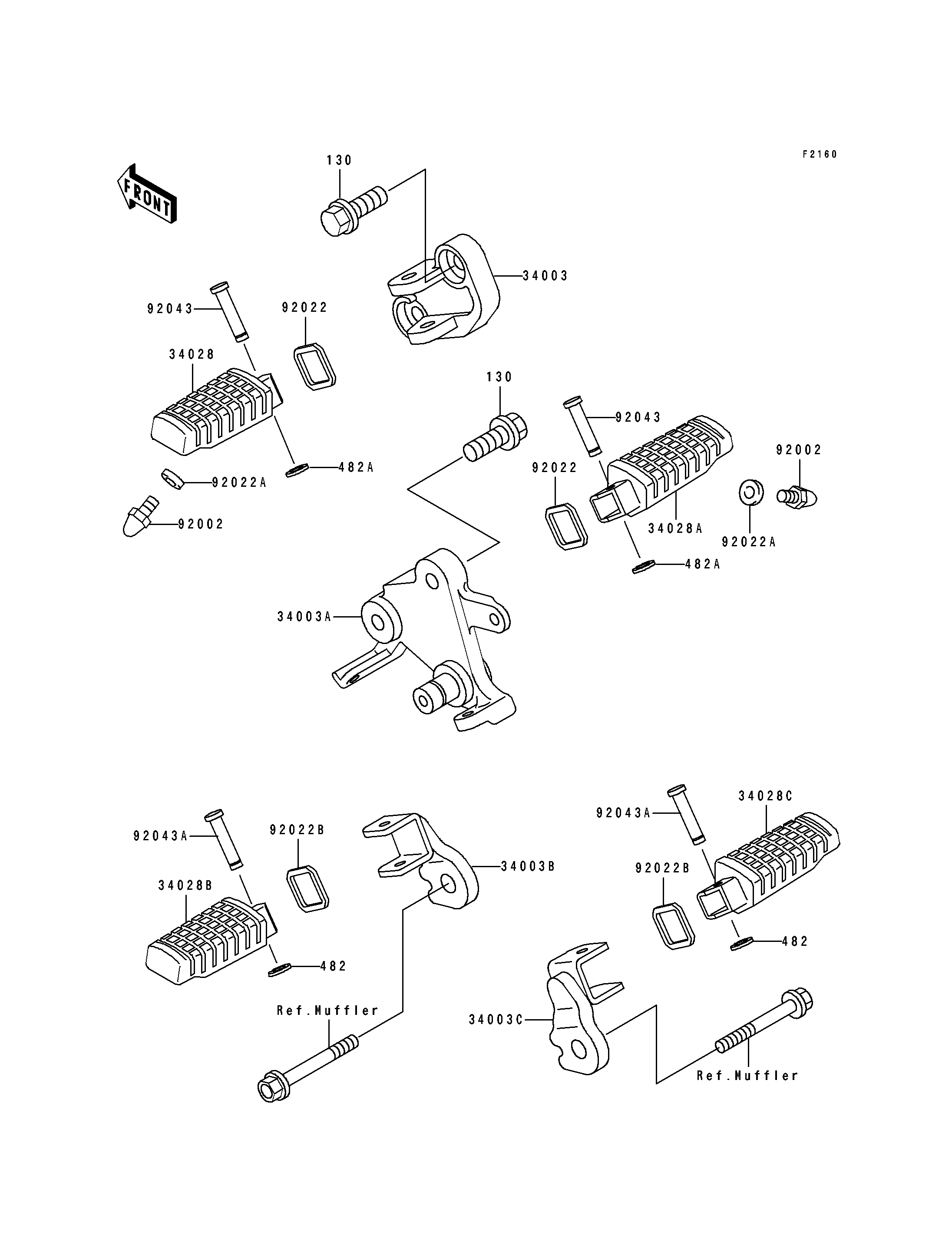

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HOLDER-STEP,FR,LH 34003 34003-1319 1
HOLDER-STEP,FR,RH 34003A 34003-1320 1
HOLDER-STEP,RR,LH 34003B 34003-1321 1
HOLDER-STEP,RR,RH 34003C 34003-1322 1
STEP,FR,LH 34028 34028-1193 1
STEP,FR,RH 34028A 34028-1194 1
STEP,RR,LH 34028B 34028-1195 1
STEP,RR,RH 34028C 34028-1196 1
BOLT,BANK SENSOR 92002 92002-1742 2
WASHER,STEP FITTING 92022 92022-1314 2
WASHER,6.5X11.5X2 92022A 92022-1506 2
WASHER,STEP FITTING 92022B 92022-1797 2
PIN,8X40.5 92043 92043-1326 2
PIN,6X30 92043A 92043-1327 2
BOLT-FLANGED,8X20 130 130J0820 4
CIRCLIP-TYPE-E,5MM 482 482L5000 2
CIRCLIP-TYPE-E 482A 482L7000 2
