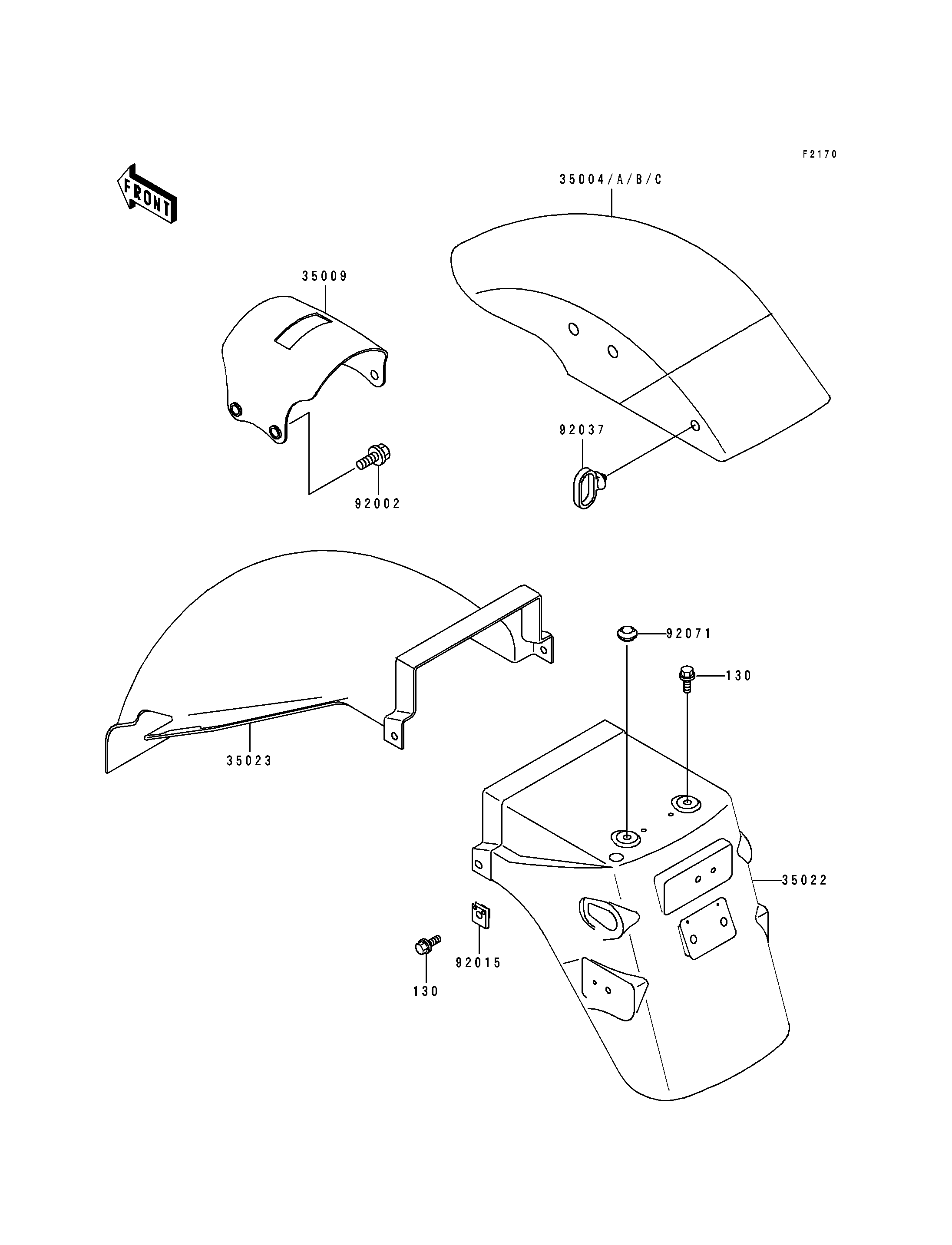

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
FENDER-FRONT,RED/BLACK 35004 35004-1188-GR 1
FENDER-FRONT,F.BLACK/EBONY 35004B 35004-1188-P3 1
BRACE,FRONT FENDER 35009 35009-1070 1
FENDER-COMP-REAR,RR,BLACK 35022 35022-1229-6Z 1
FENDER-REAR,FR 35023 35023-1183 1
BOLT,FLANGED,8X16 92002 92002-1200 4
NUT,CLAMP,6MM 92015 92015-1678 2
CLAMP,CABLE 92037 92037-1459 1
GROMMET,10MM 92071 92071-019 1
BOLT-FLANGED,6X16 130 130B0616 4
