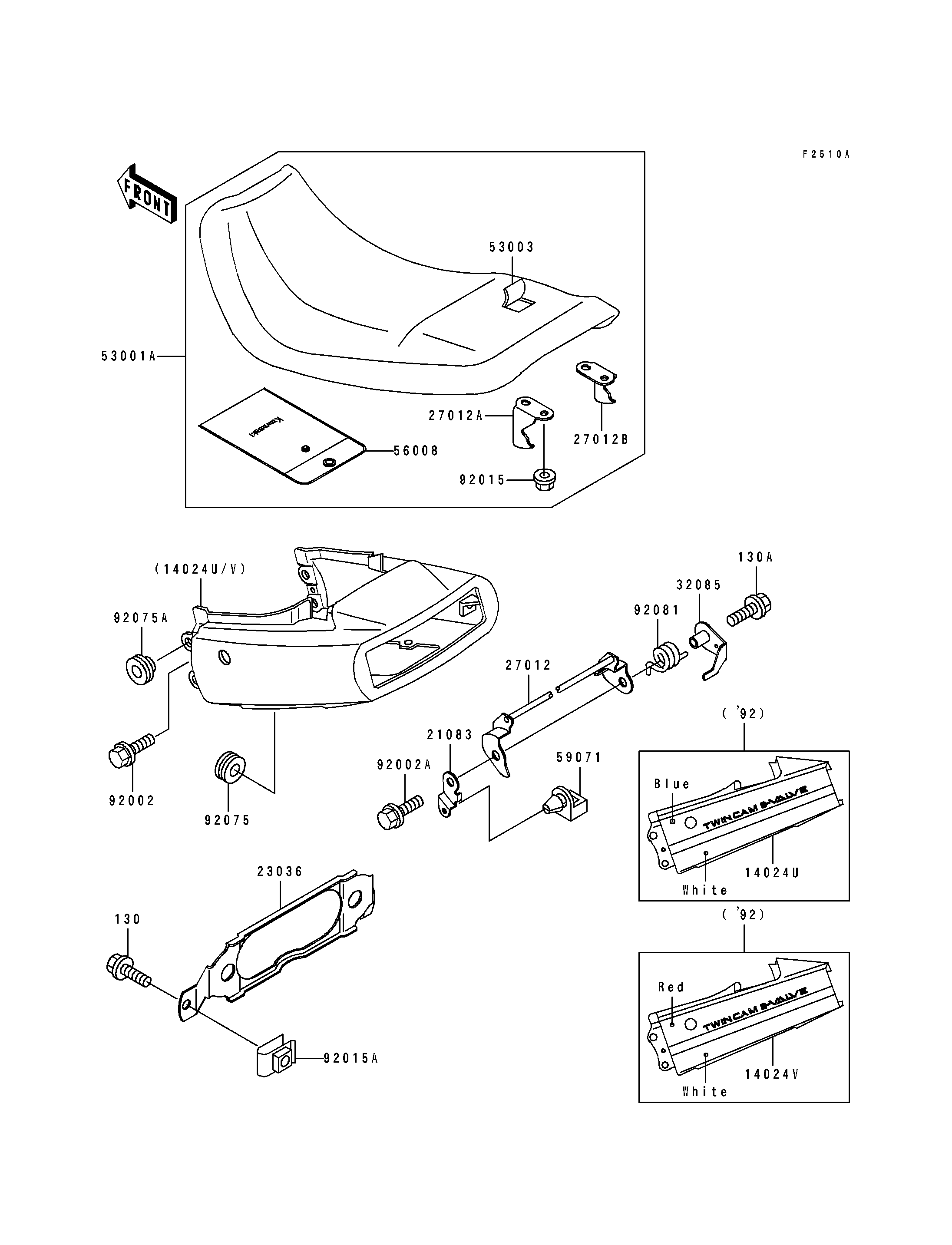

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
COVER,SEAT,BLUE/WHITE | 14024U | 14024-5205-S3 | 1 | ||
COVER,SEAT,RED/WHITE | 14024V | 14024-5206-GP | 1 | ||
ARM,SEAT LOCK | 21083 | 21083-1063 | 1 | ||
BRACKET-TAIL LAMP | 23036 | 23036-1111 | 1 | ||
HOOK,SEAT LOCK | 27012 | 27012-1363 | 1 | ||
HOOK,SEAT,LH | 27012A | 27012-1377 | 1 | ||
HOOK,SEAT,RH | 27012B | 27012-1378 | 1 | ||
STOPPER,SEAT LOCK SPRING | 32085 | 32085-1270 | 1 | ||
SEAT-ASSY,DUAL,BLACK | 53001A | 53001-1519-MA | 1 | ||
LEATHER,SEAT,BLACK | 53003 | 53003-1179-MA | 1 | ||
BAG,HAND BOOK | 56008 | 56008-1066 | 1 | ||
JOINT | 59071 | 59071-1103 | 1 | ||
BOLT,6X14 | 92002 | 92002-1351 | 2 | ||
BOLT,6X12 | 92002A | 92002-1884 | 1 | ||
NUT,FLANGED,6MM | 92015 | 92015-1078 | 4 | ||
NUT,6MM | 92015A | 92015-1671 | 2 | ||
DAMPER | 92075 | 92075-1690 | 2 | ||
DAMPER,SIDE COVER | 92075A | 92075-1962 | 4 | ||
SPRING | 92081 | 92081-1982 | 1 | ||
BOLT-FLANGED,6X14 | 130 | 130D0614 | 2 | ||
BOLT-FLANGED,6X25 | 130A | 130J0625 | 1 |
