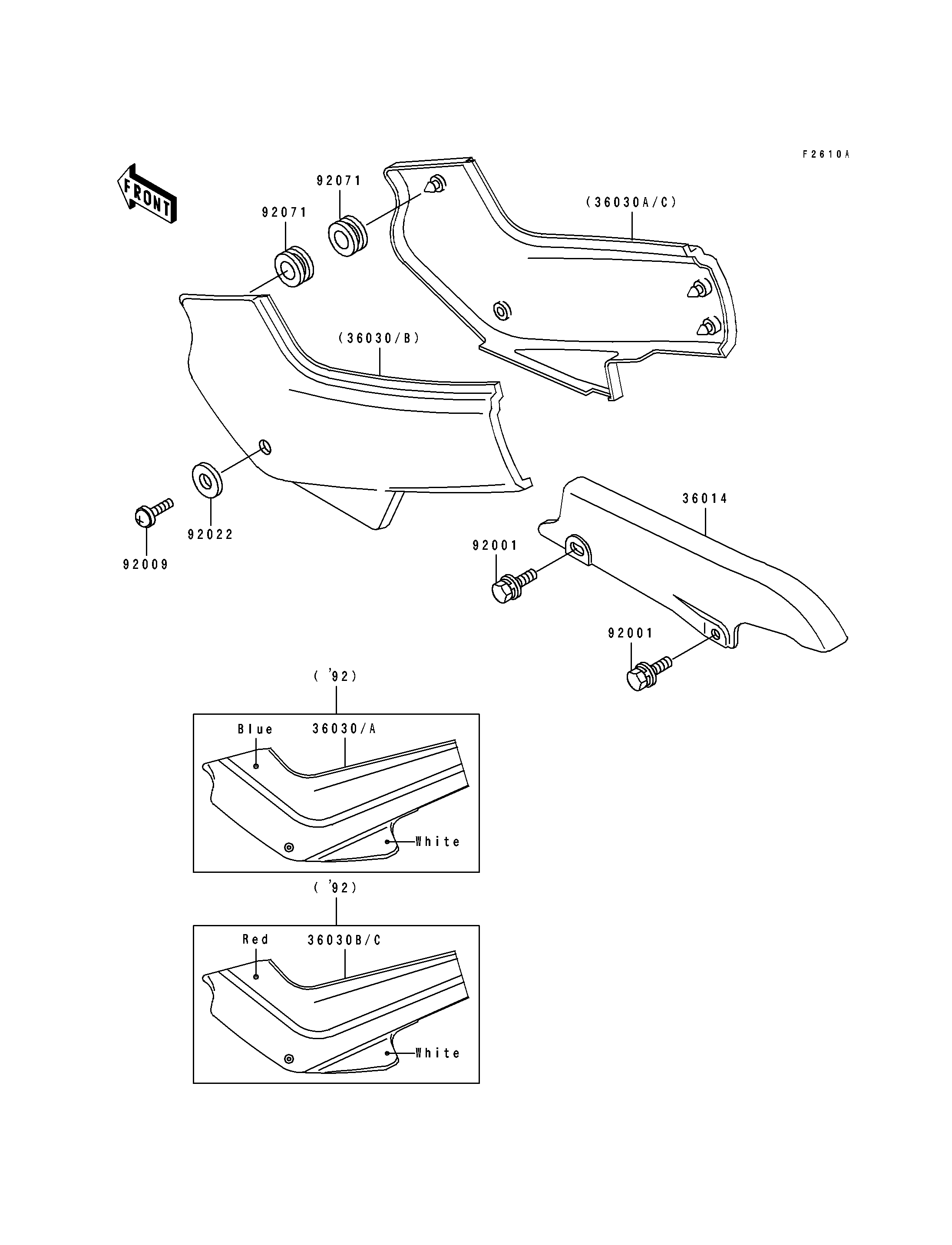

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CASE-CHAIN 36014 36014-1144 1
COVER-SIDE,LH,BLUE/WHITE 36030 36030-5047-S3 1
COVER-SIDE,RH,BLUE/WHITE 36030A 36030-5048-S3 1
COVER-SIDE,LH,RED/WHITE 36030B 36030-5049-GP 1
COVER-SIDE,RH,RED/WHITE 36030C 36030-5050-GP 1
BOLT,6X14,BLACK 92001 92001-1847 2
SCREW,6X14 92009 92009-1288 2
WASHER,6.5X16X1.0 92022 92022-1654 2
GROMMET 92071 92071-056 2
