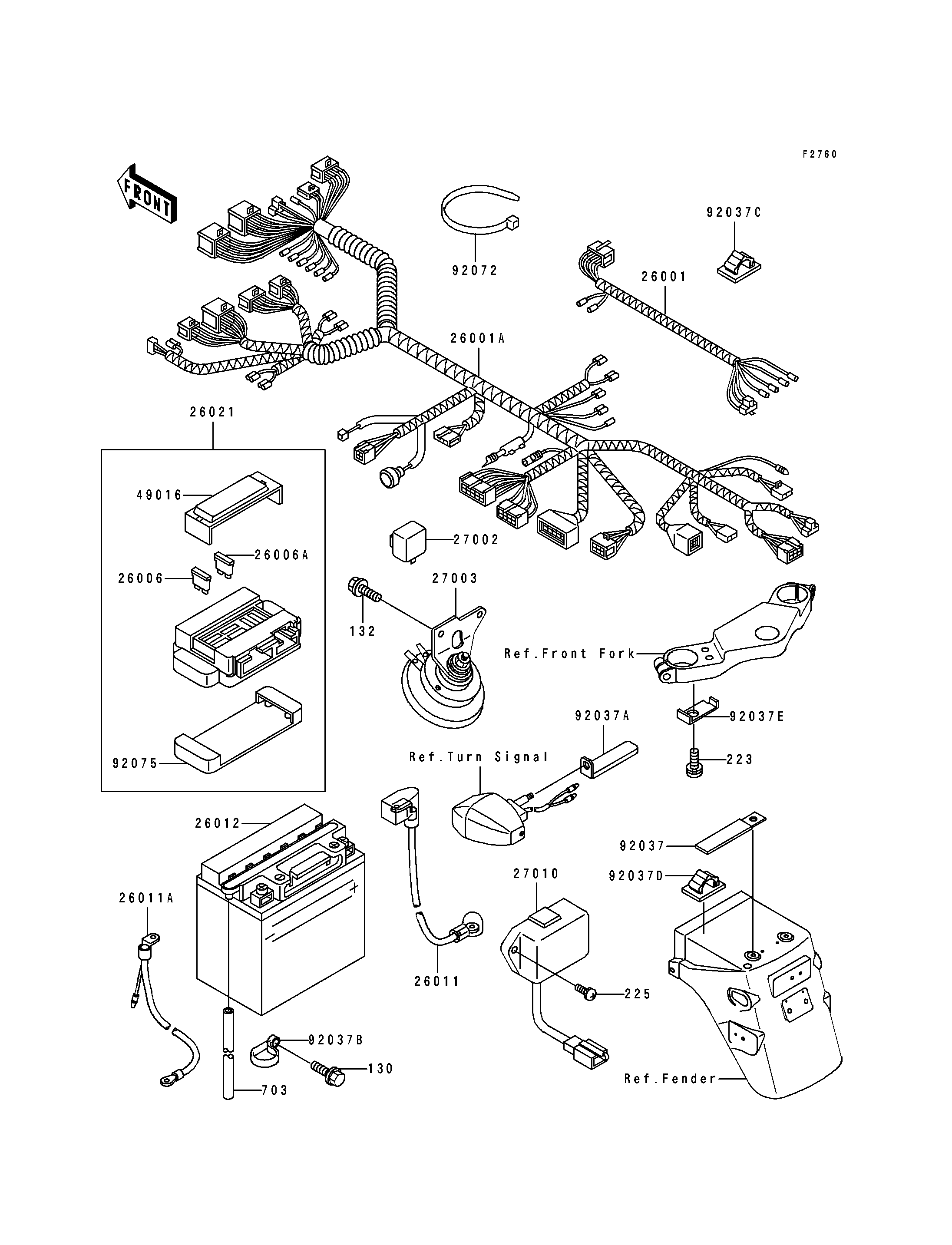

1991 EX500 - Chassis Electrical Equipment
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
HARNESS,FRONT SIGNAL LAMP | 26001 | 26001-1859 | 1 | ||
HARNESS,MAIN | 26001A | 26001-1957 | 1 | ||
FUSE,30A-G | 26006 | 26006-1067 | 1 | ||
FUSE,10A-R | 26006A | 26006-1068 | 5 | ||
WIRE-LEAD,BATTERY(+) | 26011 | 26011-1388 | 1 | ||
WIRE-LEAD,BATTERY(-) | 26011A | 26011-1389 | 1 | ||
BATTERY,12V 14AH,FB14L-A2 | 26012 | 26012-1219 | 1 | ||
JUNCTION BOX | 26021 | 26021-1077 | 1 | ||
RELAY-ASSY,TURN SIGNAL | 27002 | 27002-1060 | 1 | ||
HORN | 27003 | 27003-1274 | 1 | ||
SWITCH,RESERV LIGHTING | 27010 | 27010-1066 | 1 | ||
COVER-SEAL,FUSE | 49016 | 49016-1125 | 1 | ||
CLAMP,WIRING HARNESS | 92037 | 92037-1069 | 1 | ||
CLAMP,HARNESS | 92037A | 92037-1316 | 2 | ||
CLAMP,HOSE | 92037B | 92037-1727 | 1 | ||
CLAMP,TUBE | 92037C | 92037-1794 | 2 | ||
CLAMP,HARNESS | 92037D | 92037-1816 | 1 | ||
CLAMP,HARNESS | 92037E | 92037-1916 | 1 | ||
BAND,L=185 | 92072 | 92072-1195 | 9 | ||
DAMPER,JUNCTION BOX | 92075 | 92075-1688 | 1 | ||
BOLT-FLANGED,6X10 | 130 | 130B0610 | 2 | ||
BOLT-FLANGED-SMALL,6X10 | 132 | 132J0610 | 2 | ||
SCREW-PAN-WS-CROS | 223 | 223B0610 | 1 | ||
SCREW-PAN-WSP-CROS | 225 | 225B0620 | 2 | ||
TUBE-RUBBER,8X12X530 | 703 | 703A08530 | 1 |
