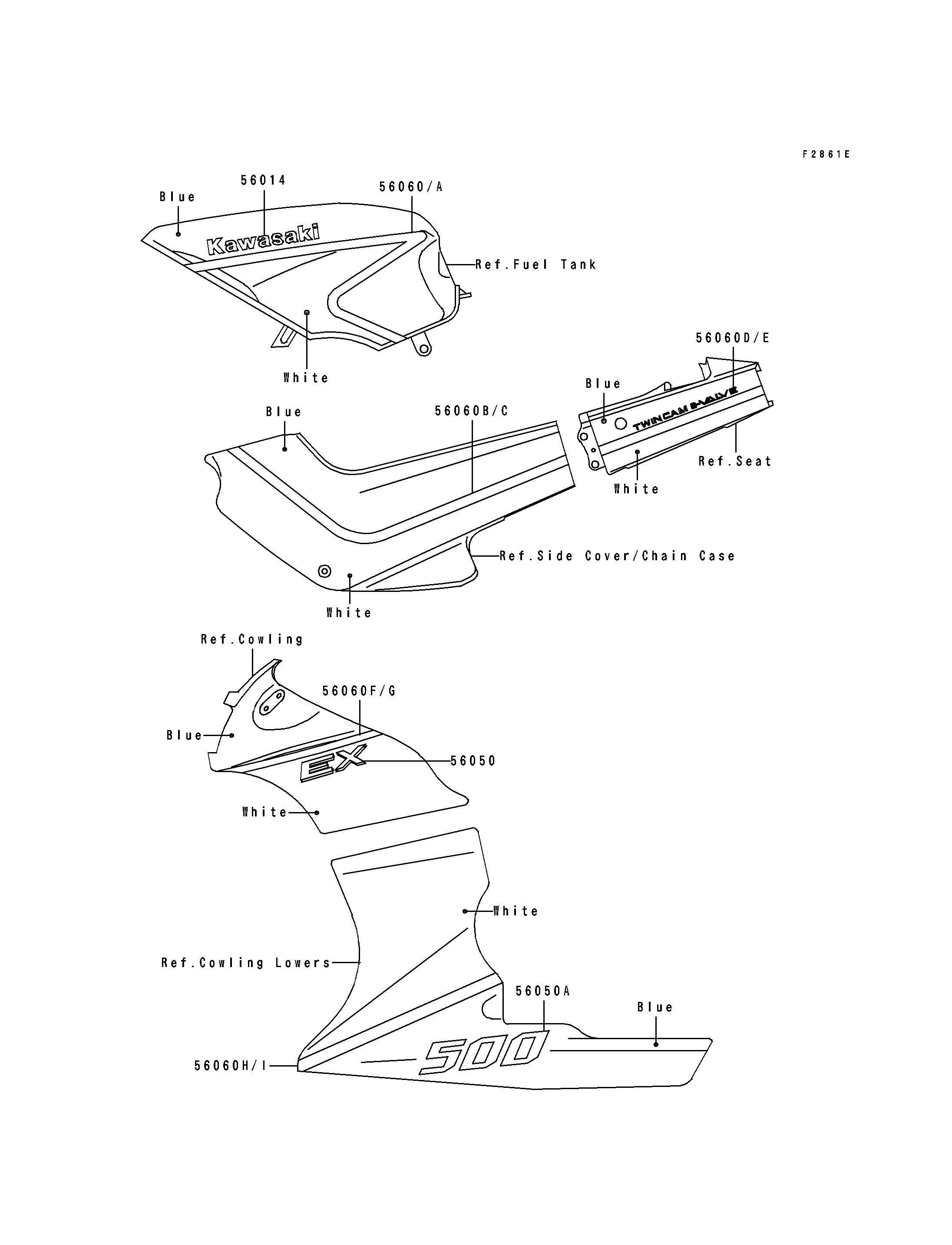

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
EMBLEM,FUEL TANK,KAWASAKI 56014 56014-1233 2
MARK,EX 56050 56050-1768 2
MARK,500 56050A 56050-1769 2 (OPTION)
PATTERN,FUEL TANK,LH 56060 56060-1079 1
PATTERN,FUEL TANK,RH 56060A 56060-1080 1
PATTERN,SIDE COVER,LH 56060B 56060-1081 1
PATTERN,SIDE COVER,RH 56060C 56060-1082 1
PATTERN,SEAT COVER,LH 56060D 56060-1083 1
PATTERN,SEAT COVER,RH 56060E 56060-1084 1
PATTERN,UPP COWLING,LH 56060F 56060-1085 1
PATTERN,UPP COWLING,RH 56060G 56060-1086 1
PATTERN,LWR COWLING,LH 56060H 56060-1087 1
PATTERN,LWR COWLING,RH 56060I 56060-1088 1
