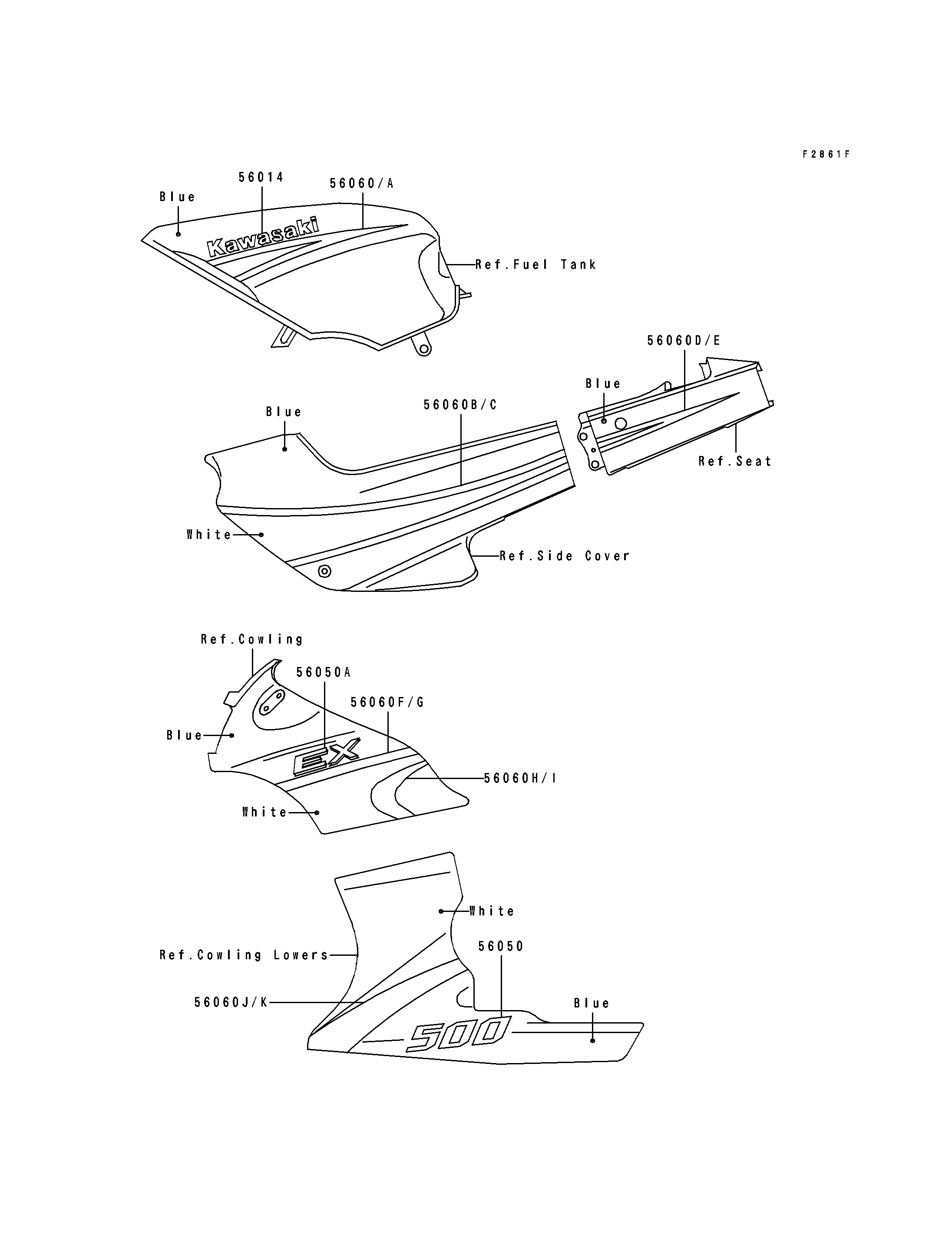

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
EMBLEM,FUEL TANK,KAWASAKI 56014 56014-1233 2
MARK,500 56050 56050-1769 2 (OPTION)
MARK,EX 56050A 56050-1866 2
PATTERN,FUEL TANK,LH 56060 56060-1331 1
PATTERN,FUEL TANK,RH 56060A 56060-1332 1
PATTERN,SIDE COVER,LH 56060B 56060-1333 1
PATTERN,SIDE COVER,RH 56060C 56060-1334 1
PATTERN,SEAT COVER,LH 56060D 56060-1335 1
PATTERN,SEAT COVER,RH 56060E 56060-1336 1
PATTERN,UPP COWLING,UPP,LH 56060F 56060-1337 1
PATTERN,UPP COWLING,UPP,RH 56060G 56060-1338 1
PATTERN,UPP COWLING,LWR,LH 56060H 56060-1339 1
PATTERN,UPP COWLING,LWR,RH 56060I 56060-1340 1
PATTERN,LWR COWLING,LH 56060J 56060-1341 1 (OPTION)
PATTERN,LWR COWLING,RH 56060K 56060-1342 1 (OPTION)
