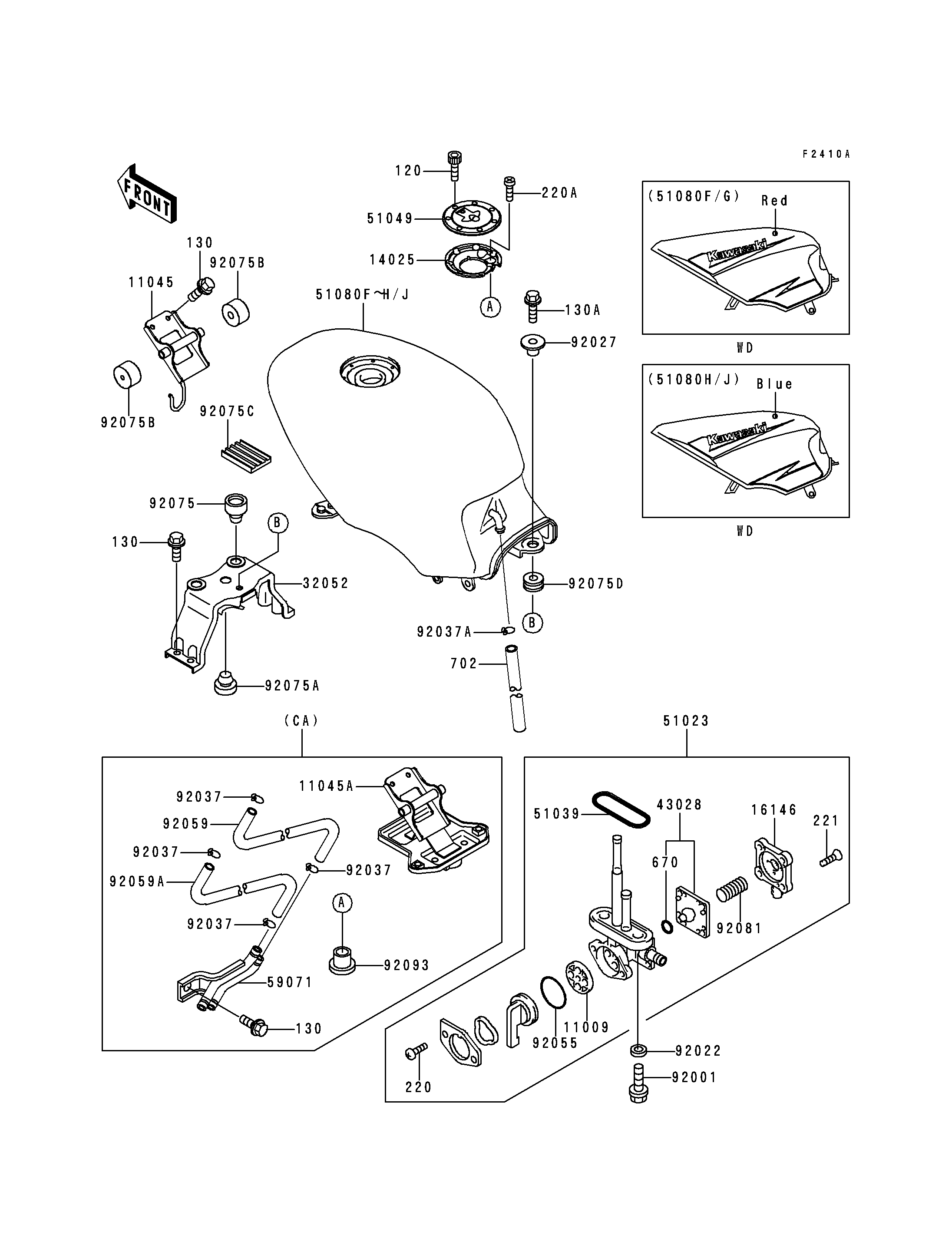

1995 Ninja® 500 - Fuel Tank(EX500-D2)

DOWNLOAD PDF
SELECT A NEW PART
11009
11009
14025
14025
16146
16146
32052
32052
43028
43028
51023
51023
51039
51039
51049
51049
120
120
130A
130A
220
220
220A
220A
221
221
670
670
702
702
92001
92001
92022
92022
92027
92027
92037A
92037A
92055
92055
92075
92075
92075A
92075A
92075B
92075B
92075B
92075B
92075C
92075C
92075D
92075D
92081
92081
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,TAP VALVE 11009 11009-1188 1
COVER,TANK CAP 14025 14025-1913 1
COVER-ASSY,TAP DIAPHRAGM 16146 16146-1010 1
BRACKET-TANK,FUEL,RR 32052 32052-1394 1
DIAPHRAGM 43028 43028-1033 1
TAP-ASSY,FUEL 51023 51023-1142 1
RING,TAP FLANGED 51039 51039-003 1
CAP-TANK,FUEL 51049 51049-1091 1
BOLT-SOCKET 120 120S0512 7
BOLT-FLANGED,8X30 130A 130G0830 1
SCREW-PAN-CROS 220 220B0308 2
SCREW-PAN-CROS 220A 220C0508 1
SCREW-CSK-CROS,4X14 221 221B0414 4
O RING,4MM 670 670B1504 1
TUBE-RUBBER,7X10X380 702 702A07380 1
BOLT,6X20 92001 92001-1091 2
WASHER,6.2X11X1.5 92022 92022-183 2
COLLAR,L=19.3 92027 92027-1780 1
CLAMP 92037A 92037-1712 1
RING-O,TAP LEVER 92055 92055-1085 1
DAMPER 92075 92075-015 2
DAMPER 92075A 92075-1045 1
DAMPER,FUEL TANK,FR 92075B 92075-1115 2
DAMPER 92075C 92075-1489 2
DAMPER 92075D 92075-1736 1
SPRING,TAP DIAPHRAGM 92081 92081-1240 1
BRACKET,FUEL TANK,FR 11045 11045-1362 1
BRACKET,FUEL TANK,FR 11045A 11045-1389 1
TANK-COMP-FUEL,C.P.RED 51080F 51080-5140-A5 1
TANK-COMP-FUEL,C.P.RED 51080G 51080-5141-A5 1
TANK-COMP-FUEL,M.N.BLUE 51080H 51080-5142-C6 1
TANK-COMP-FUEL,M.N.BLUE 51080J 51080-5144-C6 1
BOLT-FLANGED,6X12 130 130B0612 6
BOLT-FLANGED,6X12 130 130B0612 7
JOINT,EVAPO 59071 59071-1122 1
CLAMP,TUBE 92037 92037-010 4
TUBE,EVAPO 92059 92059-1767 1
TUBE,EVAPO 92059A 92059-1768 1
SEAL,FUEL TANK CAP 92093 92093-1030 1
