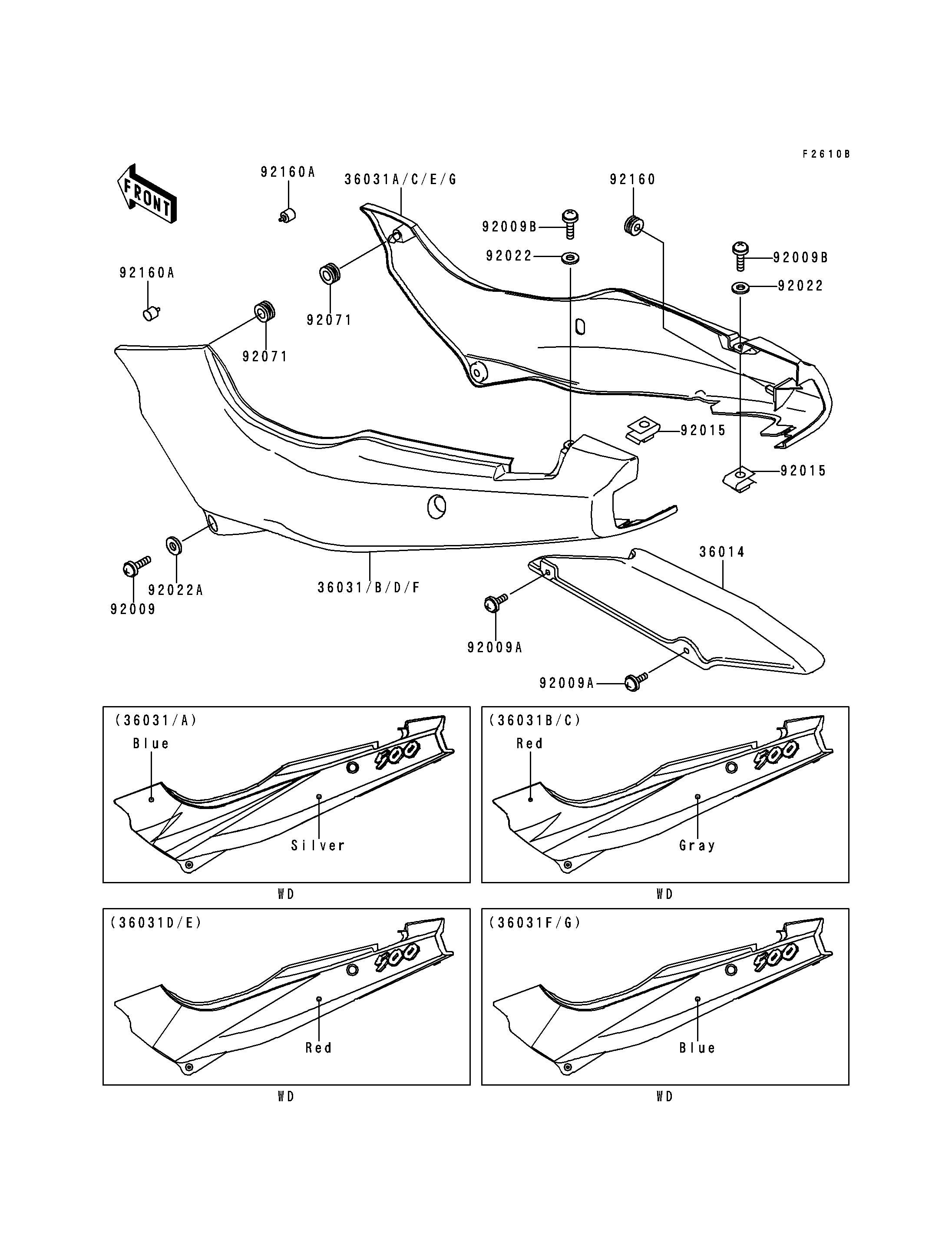

1996 Ninja® 500 - Side Covers/Chain Cover

DOWNLOAD PDF
SELECT A NEW PART
36014
36031
36031A
36031B
36031C
92009
92009A
92009A
92009B
92009B
92015
92015
92022
92022
92022A
92071
92071
92160
92160A
92160A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CASE-CHAIN 36014 36014-1164 1
COVER-SIDE,LH,G.SILVER 36031 36031-5019-F2 1
COVER-SIDE,RH,G.SILVER 36031A 36031-5020-F2 1
COVER-SIDE,LH,P.G.GRAY 36031B 36031-5027-T8 1
COVER-SIDE,RH,P.G.GRAY 36031C 36031-5028-T8 1
SCREW,6X14 92009 92009-1288 2
SCREW,6X10 92009A 92009-1402 2
SCREW,5X16 92009B 92009-1654 2
NUT,5MM 92015 92015-1710 2
WASHER,NYLON,5.3X11.5X1.5 92022 92022-1521 2
WASHER,6.5X16X1.0 92022A 92022-1654 2
GROMMET 92071 92071-056 2
DAMPER 92160 92160-1162 2
DAMPER 92160A 92160-1555 2
