56051
56051A
56061
56061A
56061B
56061C
56061F
56061G

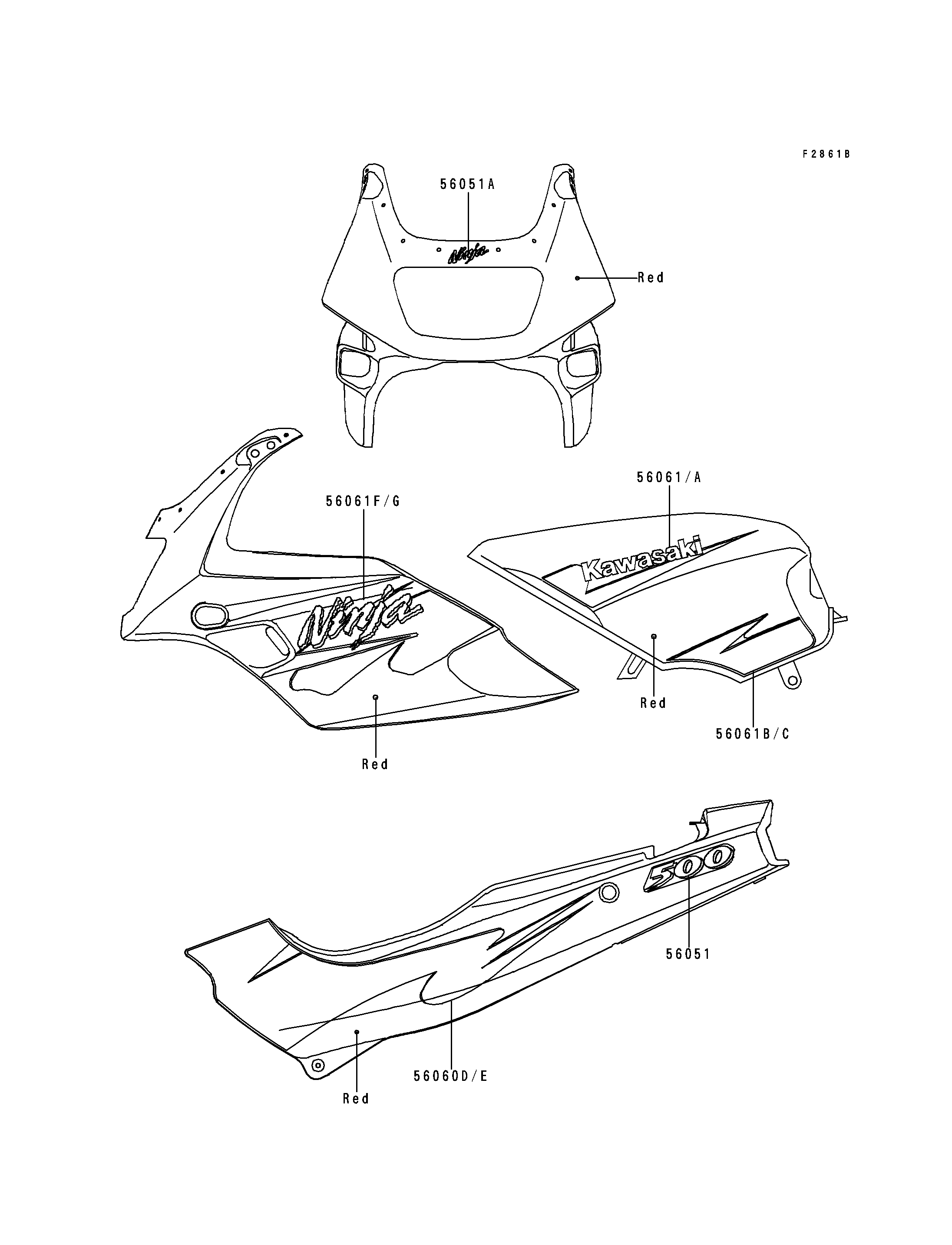

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
MARK,500 56051 56051-1196 2
MARK,NINJA 56051A 56051-1198 1
PATTERN,FUEL TANK,LH,UPP 56061 56061-1139 1
PATTERN,FUEL TANK,RH,UPP 56061A 56061-1140 1
PATTERN,FUEL TANK,LH,LWR 56061B 56061-1141 1
PATTERN,FUEL TANK,RH,LWR 56061C 56061-1142 1
PATTERN,UPP COWLING,LH 56061F 56061-1145 1
PATTERN,UPP COWLING,RH 56061G 56061-1146 1
PATTERN,SIDE COVER,LH 56061D 56061-1143 1
PATTERN,SIDE COVER,RH 56061E 56061-1144 1
