56051
56051A
56061
56061A
56061B
56061C
56061F
56061G

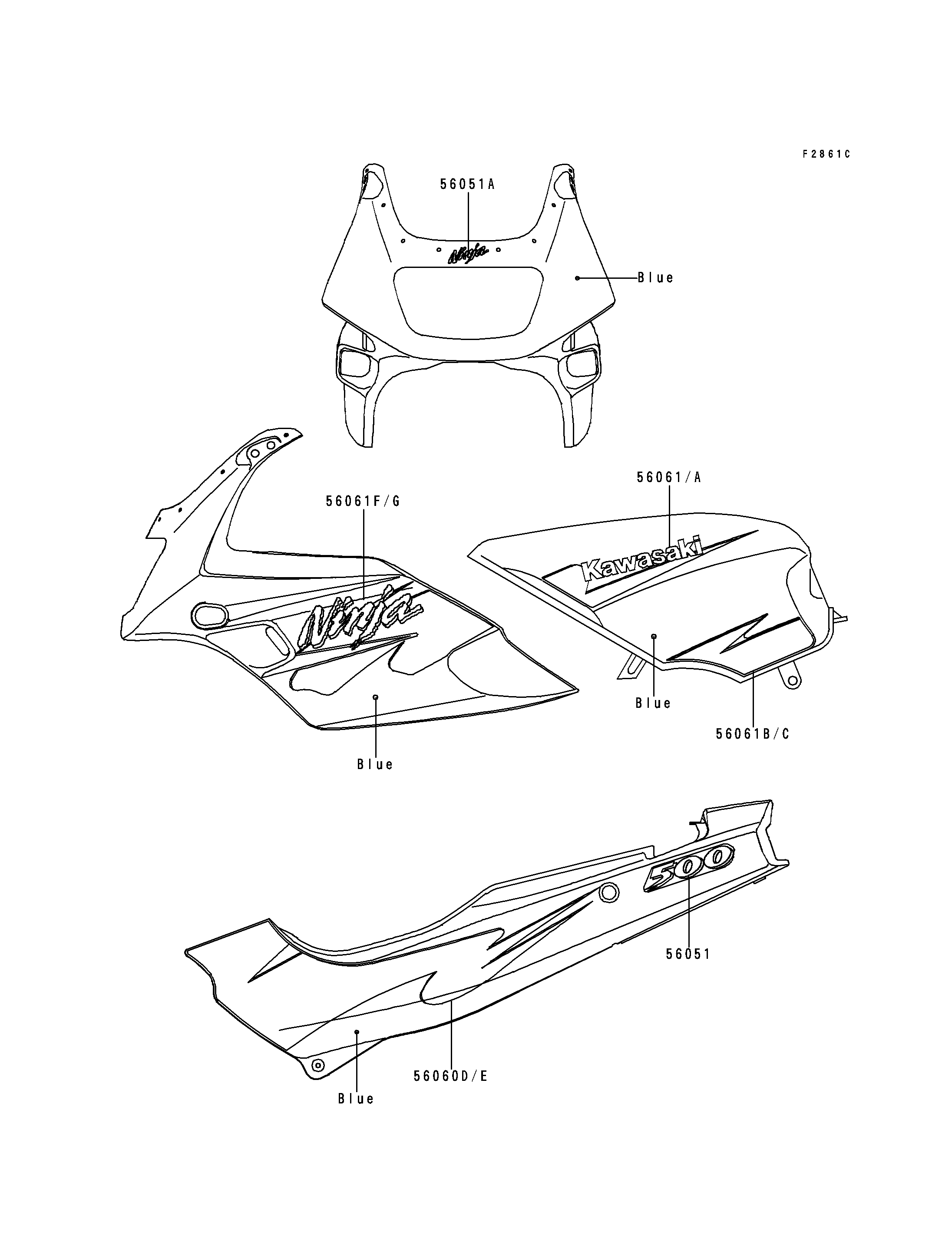

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
MARK,500 56051 56051-1200 2
MARK,NINJA 56051A 56051-1202 1
PATTERN,FUEL TANK,LH,UPP 56061 56061-1149 1
PATTERN,FUEL TANK,RH,UPP 56061A 56061-1150 1
PATTERN,FUEL TANK,LH,LWR 56061B 56061-1151 1
PATTERN,FUEL TANK,RH,LWR 56061C 56061-1152 1
PATTERN,UPP COWLING,LH 56061F 56061-1155 1
PATTERN,UPP COWLING,RH 56061G 56061-1156 1
PATTERN,SIDE COVER,LH 56061D 56061-1153 1
PATTERN,SIDE COVER,RH 56061E 56061-1154 1
