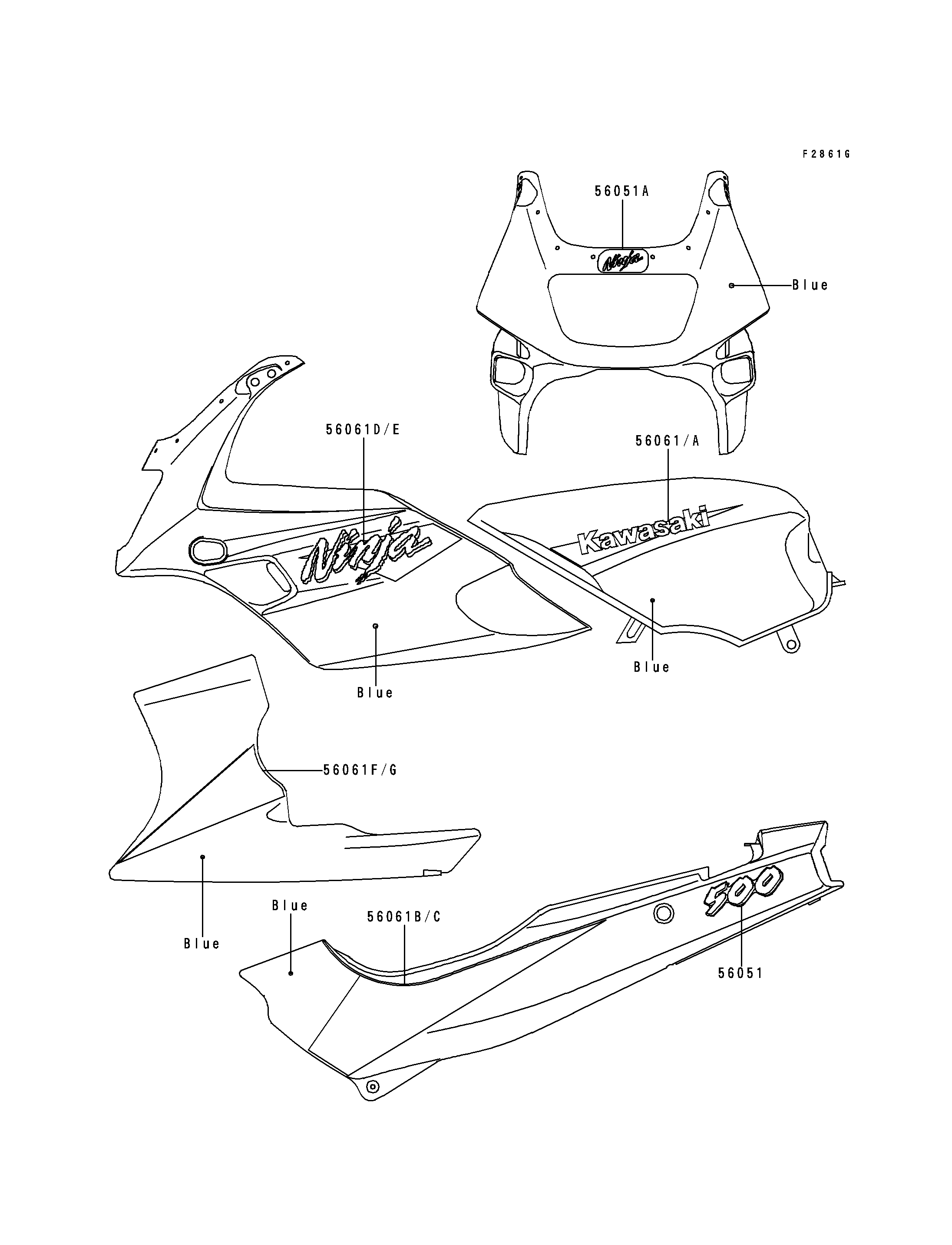

56051
56051A
56061
56061A
56061B
56061C
56061D
56061E
56061F
56061G
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
MARK,SIDE COVER,500 56051 56051-1562 2
MARK,UPP COWLING,NINJA 56051A 56051-1563 1
PATTERN,FUEL TANK,LH 56061 56061-1851 1
PATTERN,FUEL TANK,RH 56061A 56061-1852 1
PATTERN,SIDE COVER,LH 56061B 56061-1853 1
PATTERN,SIDE COVER,RH 56061C 56061-1854 1
PATTERN,UPP COWLING,LH 56061D 56061-1855 1
PATTERN,UPP COWLING,RH 56061E 56061-1856 1
PATTERN,LWR COWLING,LH 56061F 56061-1857 1
PATTERN,LWR COWLING,RH 56061G 56061-1858 1
