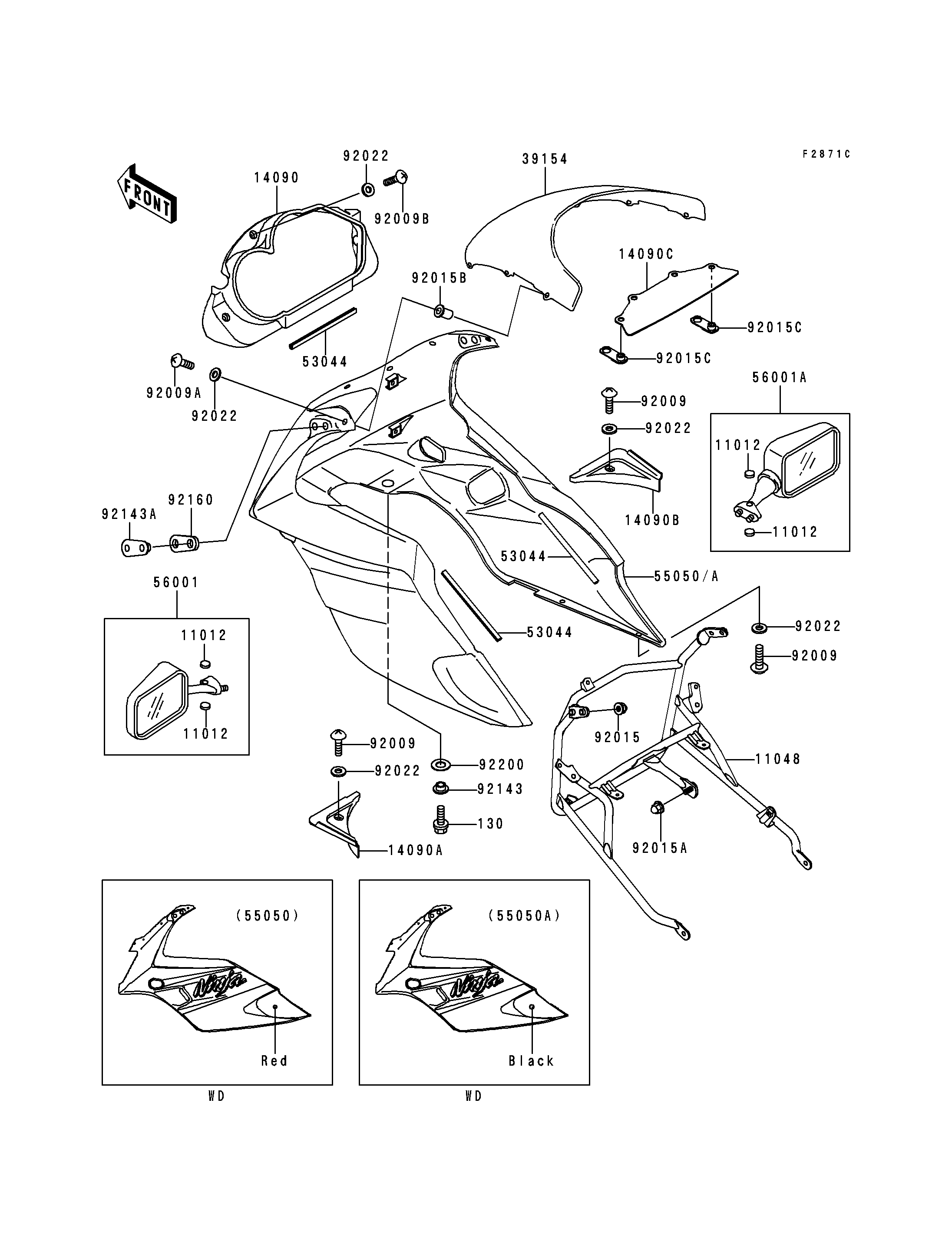

Parts Diagrams |
130
11012
11012
11012
11012
11048
14090
14090A
14090B
14090C
39154
53044
53044
53044
56001
56001A
92009
92009
92009
92009A
92009B
92015
92015A
92015B
92015C
92015C
92022
92022
92022
92022
92022
92143
92143A
92160
92200
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-FLANGED | 130 | 130J0620 | 2 | ||
CAP,MIRROR | 11012 | 11012-1818 | 4 | ||
BRACKET,UPP COWLING | 11048 | 11048-1368 | 1 | ||
COVER,INNER COWLING,CNT | 14090 | 14090-1397 | 1 | ||
COVER,INNER COWLING,LH | 14090A | 14090-1398 | 1 | ||
COVER,INNER COWLING,RH | 14090B | 14090-1399 | 1 | ||
COVER,WINDSHIELD | 14090C | 14090-1488 | 1 | ||
WINDSHIELD | 39154 | 39154-1125 | 1 | ||
TRIM,L=157 | 53044 | 53044-1276 | 3 | ||
MIRROR-ASSY,LH,EBONY | 56001 | 56001-1376-6C | 1 | ||
MIRROR-ASSY,RH,EBONY | 56001A | 56001-1377-6C | 1 | ||
SCREW,TAPPING,5X15 | 92009 | 92009-1479 | 4 | ||
SCREW,5X16 | 92009A | 92009-1654 | 8 | ||
SCREW,5X22 | 92009B | 92009-1660 | 3 | ||
NUT,CAP,6MM,BLACK | 92015 | 92015-1170 | 4 | ||
NUT,CAP,8MM,BLACK | 92015A | 92015-1174 | 1 | ||
NUT,WELL,5MM | 92015B | 92015-1757 | 6 | ||
NUT | 92015C | 92015-1949 | 2 | ||
WASHER,NYLON,5.3X11.5X1.5 | 92022 | 92022-1521 | 15 | ||
COLLAR,L=6.6 | 92143 | 92143-1088 | 2 | ||
COLLAR | 92143A | 92143-1699 | 2 | ||
DAMPER,MIRROR | 92160 | 92160-1089 | 2 | ||
WASHER,10.3X20X1 | 92200 | 92200-1013 | 2 | ||
COWLING-ASSY.,UPP,C.P.RED | 55050 | 55050-5097-A5 | 1 | ||
COWLING-ASSY.,UPP,BLACK PEARL | 55050A | 55050-5150-B5 | 1 |
BOLT-FLANGED | |
REF # | 130 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
CAP,MIRROR | |
REF # | 11012 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
BRACKET,UPP COWLING | |
REF # | 11048 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COVER,INNER COWLING,CNT | |
REF # | 14090 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COVER,INNER COWLING,LH | |
REF # | 14090A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COVER,INNER COWLING,RH | |
REF # | 14090B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COVER,WINDSHIELD | |
REF # | 14090C |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WINDSHIELD | |
REF # | 39154 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
TRIM,L=157 | |
REF # | 53044 |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
MIRROR-ASSY,LH,EBONY | |
REF # | 56001 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
MIRROR-ASSY,RH,EBONY | |
REF # | 56001A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SCREW,TAPPING,5X15 | |
REF # | 92009 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
SCREW,5X16 | |
REF # | 92009A |
---|---|
PART NUMBER | |
QUANTITY | 8 |
DESTINATION | |
REMARKS |
SCREW,5X22 | |
REF # | 92009B |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
NUT,CAP,6MM,BLACK | |
REF # | 92015 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
NUT,CAP,8MM,BLACK | |
REF # | 92015A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
NUT,WELL,5MM | |
REF # | 92015B |
---|---|
PART NUMBER | |
QUANTITY | 6 |
DESTINATION | |
REMARKS |
NUT | |
REF # | 92015C |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
WASHER,NYLON,5.3X11.5X1.5 | |
REF # | 92022 |
---|---|
PART NUMBER | |
QUANTITY | 15 |
DESTINATION | |
REMARKS |
COLLAR,L=6.6 | |
REF # | 92143 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
COLLAR | |
REF # | 92143A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
DAMPER,MIRROR | |
REF # | 92160 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
WASHER,10.3X20X1 | |
REF # | 92200 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
COWLING-ASSY.,UPP,C.P.RED | |
REF # | 55050 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COWLING-ASSY.,UPP,BLACK PEARL | |
REF # | 55050A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
