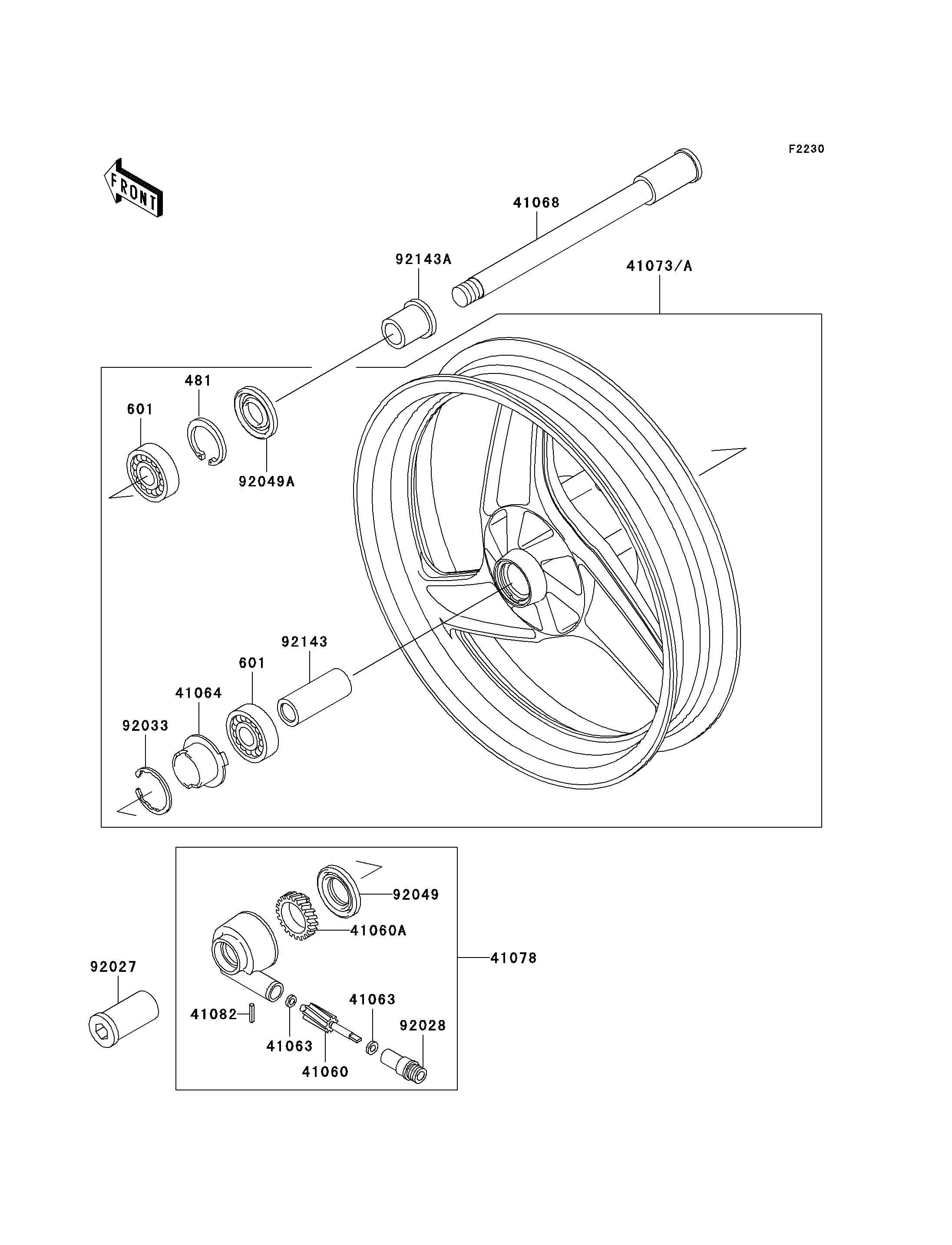

2003 Ninja® 500R - Front Wheel

DOWNLOAD PDF
SELECT A NEW PART
481
601
601
41060
41060A
41063
41063
41064
41068
41073
41078
41082
92027
92028
92033
92049
92049A
92143
92143A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CIRCLIP-TYPE-C,35MM 481 481J3500 1
BEARING-BALL 601 601B6202UU 2
GEAR-METER SCREW,9T 41060 41060-1123 1
GEAR-METER SCREW,23T 41060A 41060-1124 1
WASHER,5.1X9X0.4 41063 41063-001 2
RECEIVER-SPEEDOMETER 41064 41064-1006 1
AXLE,FR 41068 41068-1175 1
WHEEL-ASSY,FR,G.GRAY 41073 41073-1543-GE 1
CASE-ASSY-METER GEAR 41078 41078-1068 1
PIN,SPRING 41082 41082-001 1
COLLAR,FR AXLE,L=36.5 92027 92027-1726 1
BUSHING,SPEEDOMETER 92028 92028-1066 1
RING-SNAP,42MM 92033 92033-1041 1
SEAL-OIL,BJN30427-C3 92049 92049-1057 1
SEAL-OIL,MH20354.5 92049A 92049-1176 1
COLLAR,15.1X20X70 92143 92143-1185 1
COLLAR,FR AXLE,L=24 92143A 92143-1187 1
